TP support A2
Type TPS 545 A2
|Item no. 6364850
|EAN 4012195617860
Item no. / Type
Length
Smallest selling unit: 1 piece
1piece
piece
Description
TP support for fastening to horizontal concrete ceilings.
If the profile is fastened directly to the ceiling or the profile is screwed together as head reinforcement, then, for reasons of stability, always use the spacer, type DS 4.
Important: only use brackets of length 345 mm or less.
Technical data

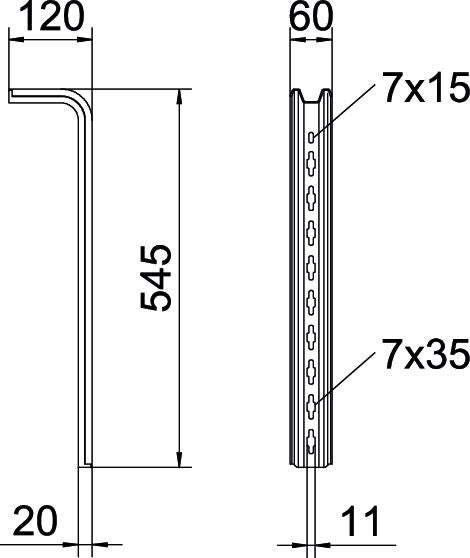

Dimensions
| Length | 545 mm |
|---|---|
| Width | 60 mm |
| Height | 120 mm |
| Dimension L | 545 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Version for | S profile |
| Dimension | L545mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |

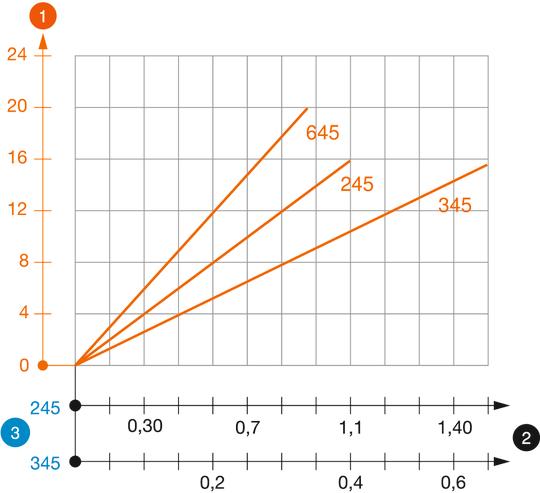

Bending of the end of the suspended support at permitted bracket load
Permitted bracket load in kN without man load
Bracket length in mm
Load curves with support lengths in mm
Environmental Data
4,3076 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 4,3076 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 4,3076 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
