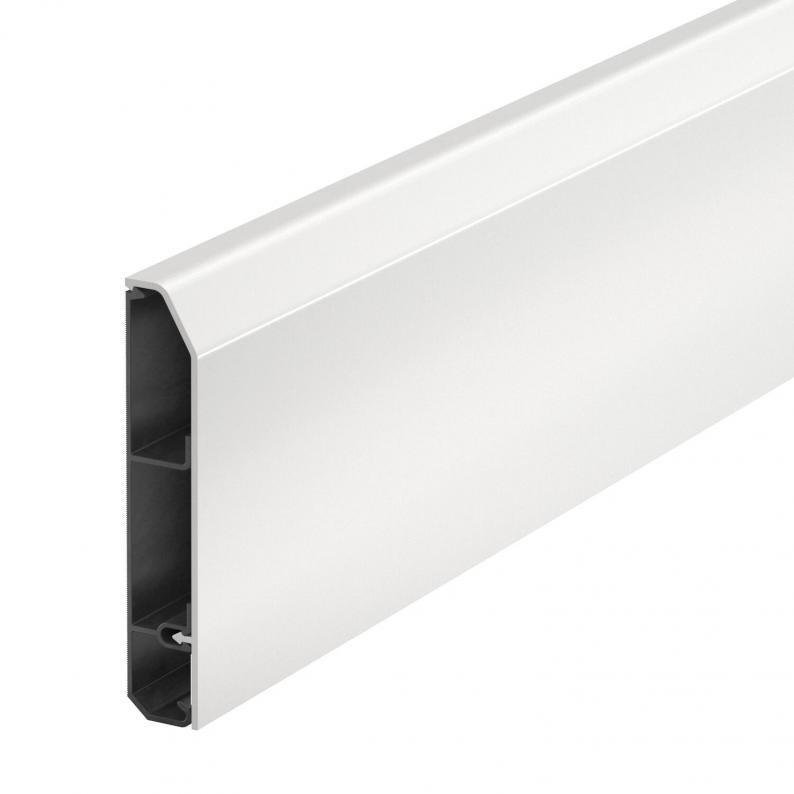

Skirting trunking SL 20110
Type SL 20110 rws
|Item no. 6132274
|EAN 4012196723416
Item no. / Type
6132274 / SL 20110 rws
Length
2000 mm
Colour
Pure white; RAL 9010
Smallest selling unit: 2 m
2m
m
Description
SL skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.
With snap-on cover and base, with base perforation for direct wall mounting. Change the direction with the fittings and close the trunking ends with end pieces. Service outlet for installing power and data technology.
Technical data

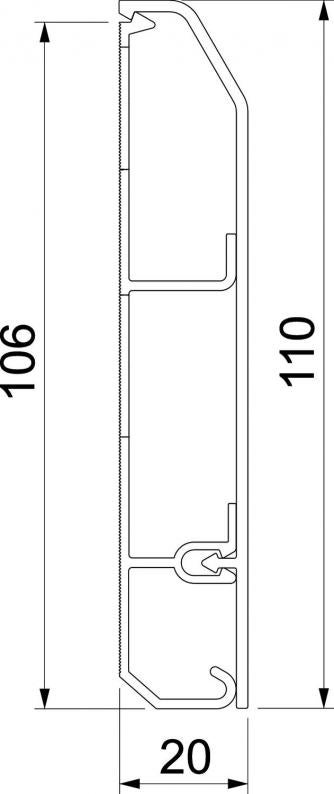

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 110 mm |
| Height | 20 mm |
Technical data
| Mounting perforation in base | yes |
|---|---|
| Usable cross-section | 1350 mm² |
| Halogen-free | no |
| Number of fixed partitions | 2 |
| Protective film | no |
| Decoration | Without |
| Protection rating | IP40 |
| With carpet strip | no |
| Cover sealing lip | Without |
| Protection rating IK code | IK06 |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Product series | SL Trunking |
Environmental Data
1,5681 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5681 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 1,5681 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6132250
Device support SL 2GT20110Type
SL2GT20110 rws
Smallest selling unit: 1 piece
1piece
piece
Item no. 6132242
Device support SL ETler20110Type
SL ETler20110rws
Smallest selling unit: 1 piece
1piece
piece
Item no. 6132236
Device support SL GTler20110Type
SL GTler20110rws
Smallest selling unit: 1 piece
1piece
piece
