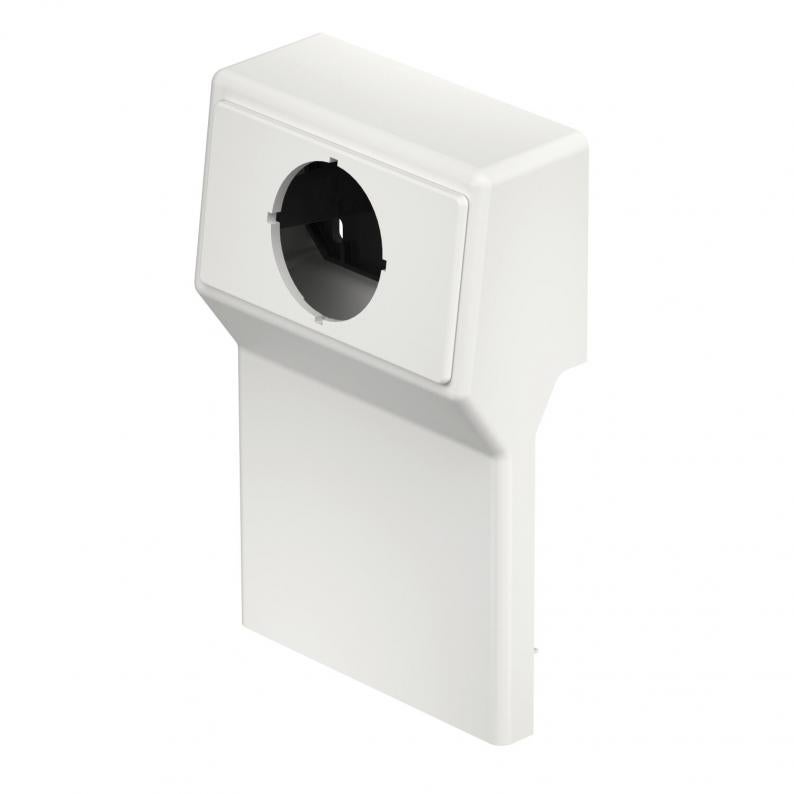

Device support SL GTler20110

Device support SL GTler20110

Type SL GTler20110rws
|
Item no. 6132236
|
EAN 4012196719891
Show all variants
Item no. / Type
6132236 / SL GTler20110rws
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

Empty device support for skirting trunking for the installation of devices in support clamp form (according to DIN 49075) in trunking width 110 mm.

For snapping onto the cover of the trunking system.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

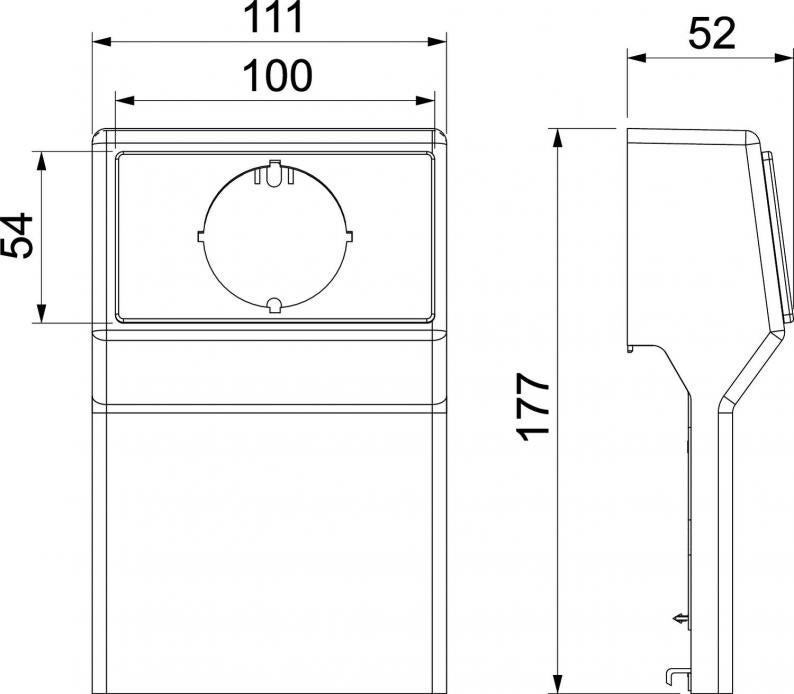

Dimensions

Length52 mm
Width111 mm
Height177 mm

Technical data

Halogen-freeno
Number of units0
DecorationMiscellaneous
Protection ratingIP40
Protection rating IK codeIK06
Accessory mounting typeWith central plate
EquipmentWithout
ROHS-conformantExempt
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Product seriesSL Trunking

Environmental Data

0,4453 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,4453 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,4453 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
