Skirting trunking Rauduo 40105

Type RD 40105 natur

Item no. 6132205

EAN 4012196719235

Data sheet (PDF)

Show all variants

Item no. / Type

6132205 / RD 40105 natur

Length

2000 mm

Colour

Natural

Smallest selling unit: 2 m

Description

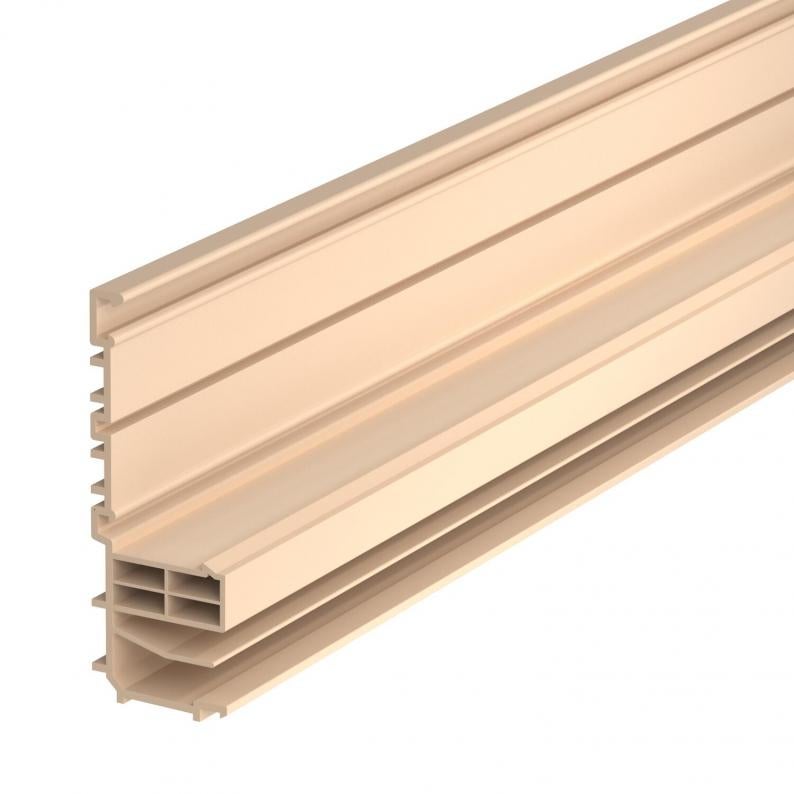

Base of the Rauduo trunking system with 2 individual, thermally separated chambers for joint laying of electrical cables and heating pipes. With locking function for accommodating the trunking covers. The colour of the trunking bases can vary depending on the production method.

Lower chamber for accommodating electrical cables with extruded partition for the separate laying of high- and low-voltage current. Standard base perforation.

Technical data

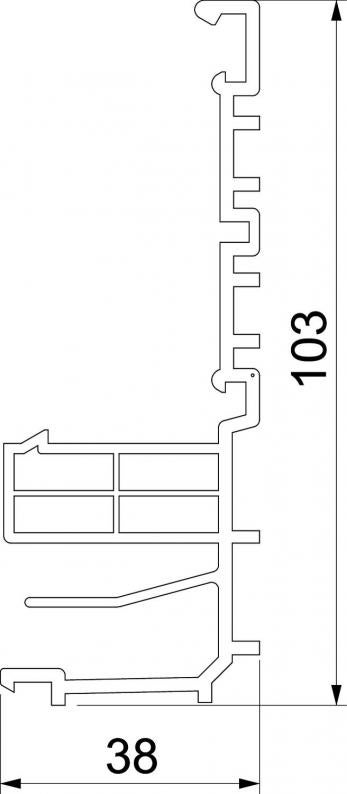

Dimensions

Length	2000 mm
Width	103,4 mm
Height	38 mm

Technical data

Mounting perforation in base	yes
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	2
Usable cross-section	600 mm²
Halogen-free	no
Number of fixed partitions	1
With carpet strip	no
Dimension	2000x105x40
Material	Polyvinylchloride
Colour	Natural
Product series	Rauduo

Environmental Data

1,5753 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate

Packaging without plastic	yes

CO2 Footprint (GWP) Cradle-to-Gate	1,5753 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	1,5753 kg CO₂e
Determination date of CO2 value	2025-05-14T00:00:00.000+0200
Declared Unit (LCA)	Metres
Declared Unit Quantity (LCA)	1
