Service outlet, square, for screed height 55 mm
Type GES9 55U V 9011
Item no. 7405039
EAN 4012195674443
Item no. / Type
Floor covering thickness
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

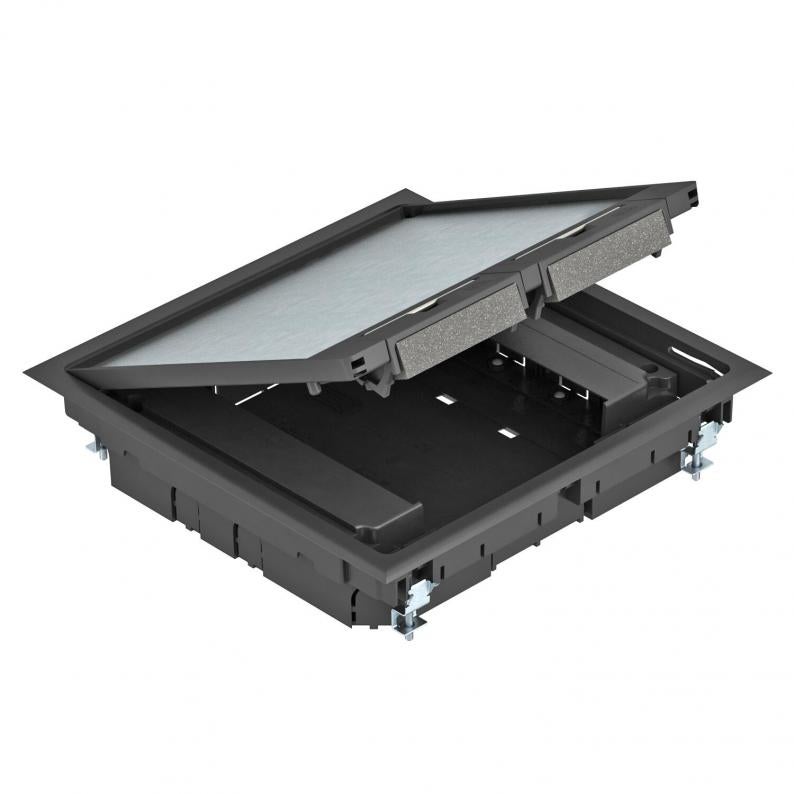

GES9 service outlet with a fixed construction height of 55 mm for use in installation trunking systems in dry rooms with dry-care floors in interior areas. With two installation housings for vertical mounting of Modul 45 devices and four strain reliefs. Two installation frames are required to mount Modul 45 devices.
The data modules are mounted using a maximum of two optional MPMT45 mounting plates.
The service outlet is equipped with universal fastening brackets.
The data modules are mounted using a maximum of two optional MPMT45 mounting plates.
The service outlet is equipped with universal fastening brackets.
Technical data

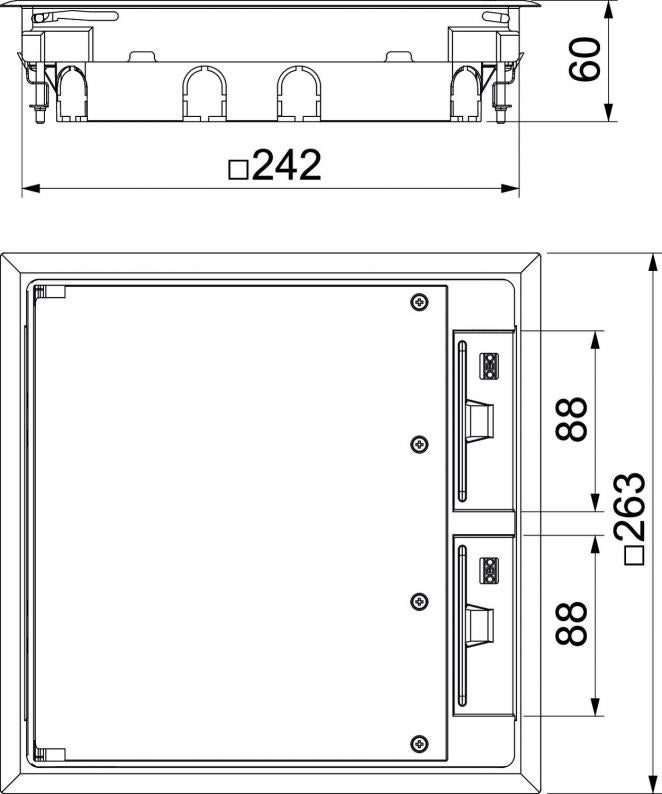

Dimensions
| Length | 263 mm |
|---|---|
| Width | 263 mm |
| Height | 59 mm |
| Dimension h | 55 mm |
Technical data
| Screed height, min. | 55 mm |
|---|---|
| Floor height, min. | 58 mm |
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | yes |
| Number of installable devices | 8 |
| Seal installation option | no |
| Length of installation dimensions | 242 mm |
| Wide installation dimensions | 242 mm |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Suitable for wet care | no |
| Installation depth | 58 mm |
| With floor covering recess | no |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | no |
| Heavy-duty version | no |
| Nominal size for device installation units | 9 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Cover version | Square |
| Opening mechanism | Handle |
| ROHS-conformant | yes |
| Clamping range D, min. | 9 mm |
| Clamping range D, max. | 31 mm |
| Dimension | 263x263x59 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| Product series | GES |
Environmental Data
6,3663 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,3663 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 6,3663 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
