Strain relief on three sides, empty housing, internal height 175 mm
Item no. 7215766 | EAN 4012196814657
- Product description
-

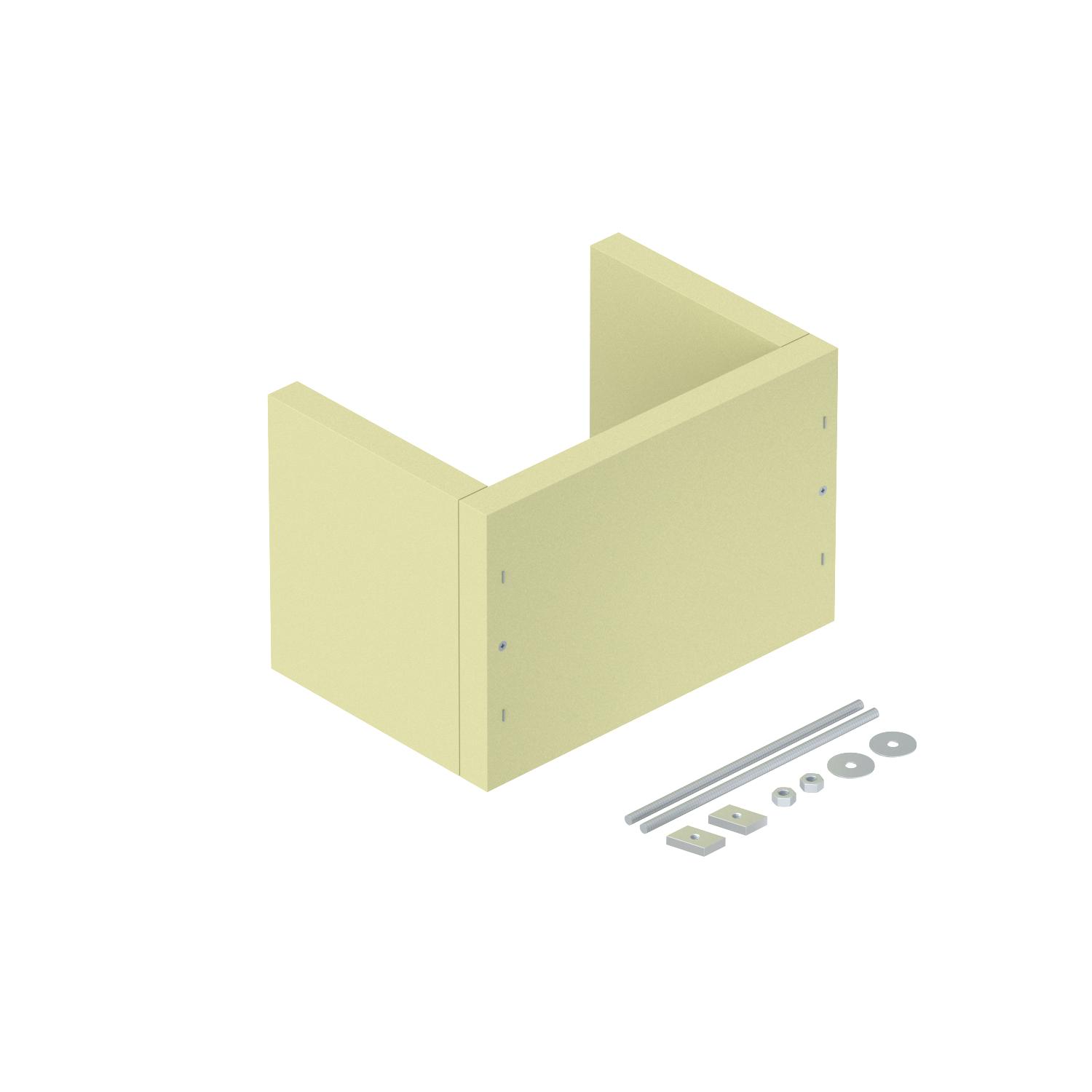

Product descriptionStrain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12. Approved for all cable types and all vertical routing systems, which are mounted directly on solid walls. Maintenance of electrical function classes E30 to E90. Empty housing for individual filling with the PYROSIT® NG fire protection foam and/or PYROPLUG® Block insulation systems, incl. mounting set and labelling panel.
- Technical data
-
Technical data

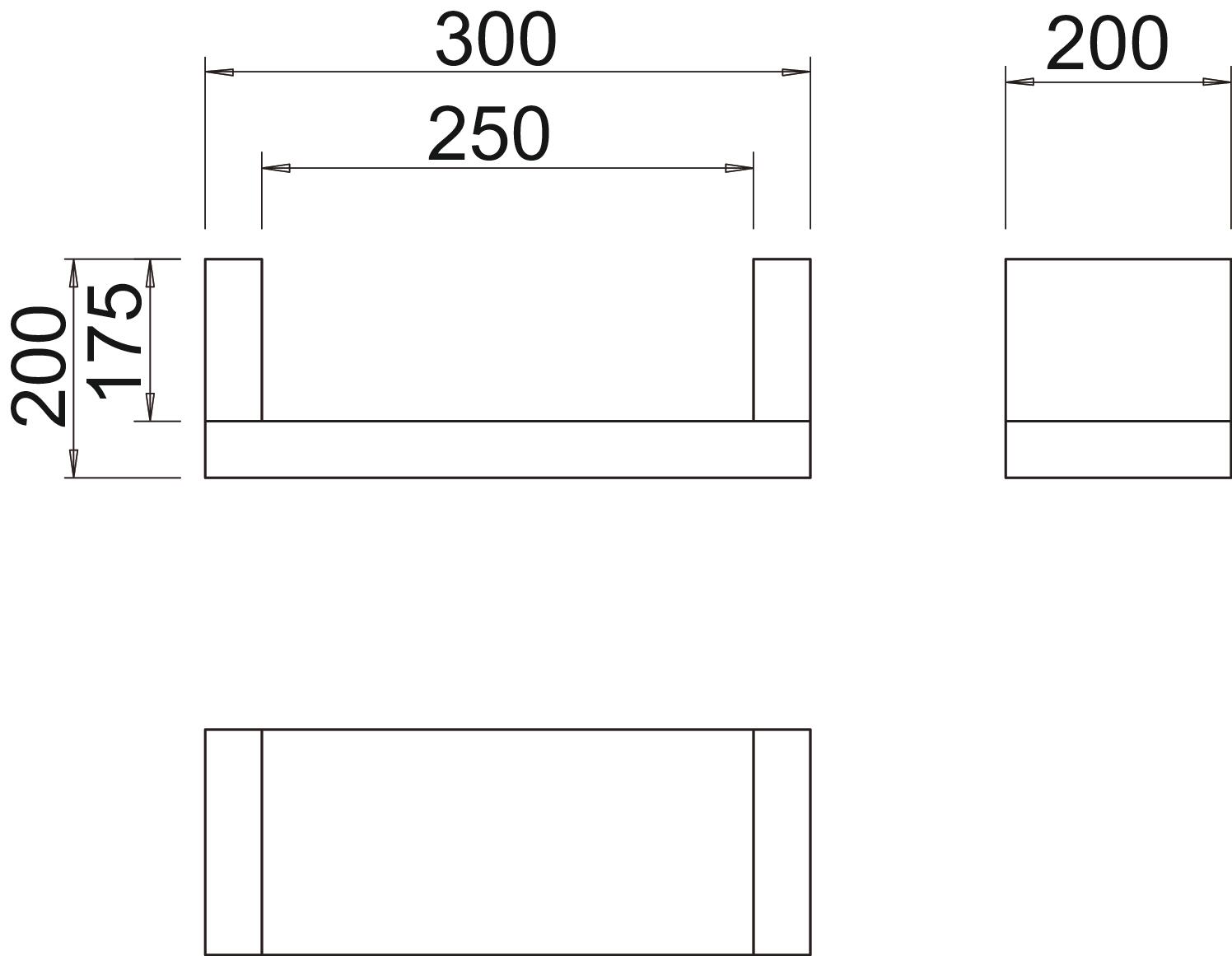

Colour Cream; RAL 9001 Dimension 300x200x200 Dimension B 300 mm Dimension b 250 mm Dimension H 200 mm Dimension t 175 mm Dimension t 200 mm Height 200 mm Length 200 mm Material Calcium silicate Shape Rectangular Thickness 25 mm Width 300 mm - All types
-
System accessories
Products Types Item no.
Mixer pipe set
FBS-M 7203803
Professional cartridge pistol
FBS-PH 7203806
Identification plate for strain relief
KS-ZSE DE 7215750 Mounting accessories
Products Types Item no.
2-component fire protection foam PYROSIT® NG
FBS-S 7203800
PYROPLUG® Block foam block
FBA-B200-14 7202505
PYROPLUG® screed filler
FBA-SP 7202322 - Downloads
-
Data sheet ZSE90-25-17 L / 7215766 , 0.14MB , pdfBrochure Brochure The Experts , 2.10MB , pdfMounting instructions Mounting instructions, ZSE90 strain relief , 0.07MB , pdfNo invitation to tender text is available for this product.
