PYROLINE® Sun PV I30 fire protection duct 1000 | 100 | 60 | 85 | 40

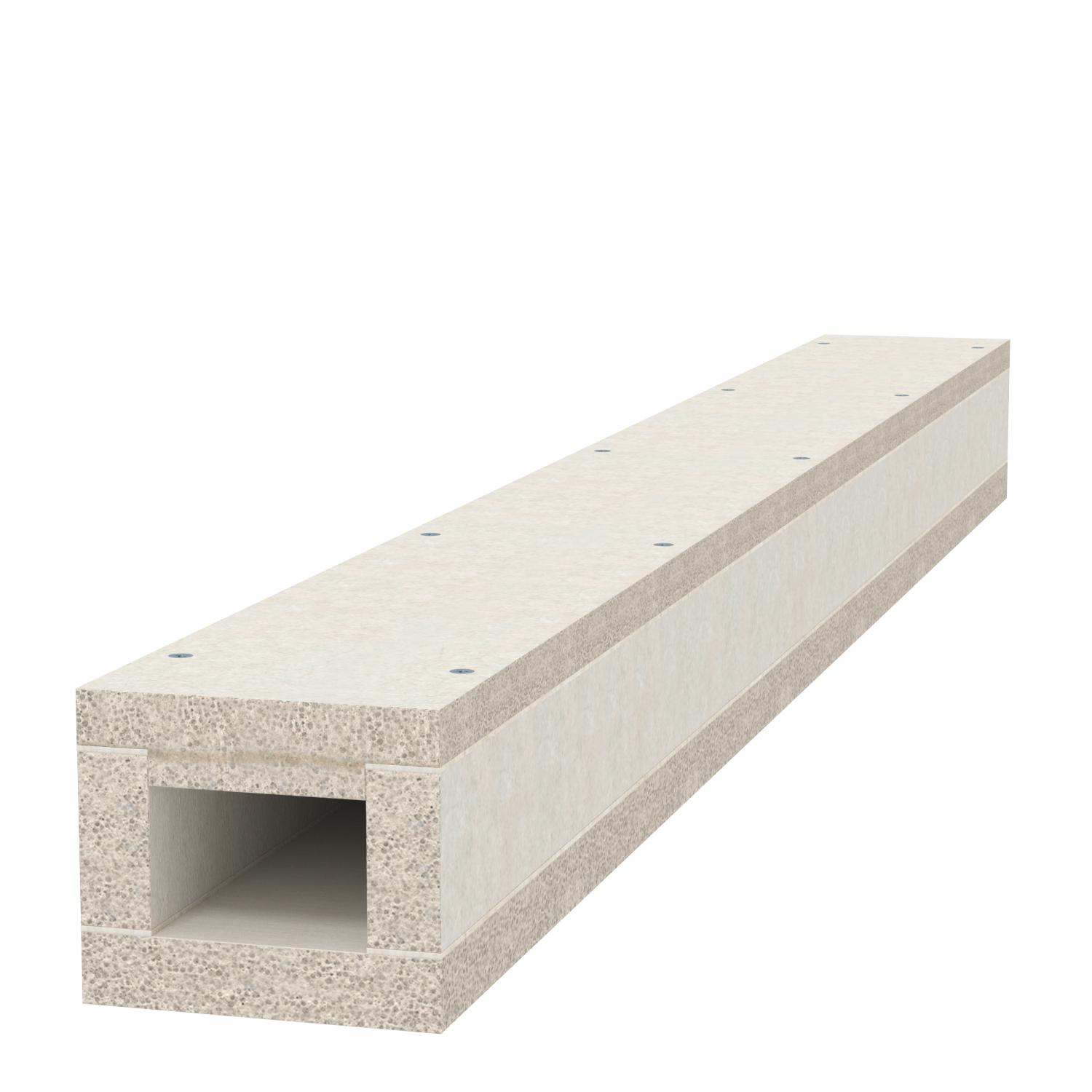

PYROLINE® Sun PV I30 fire protection duct

Item no. 7214701 | EAN 4012197308681

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

Fire protection duct made from water and frost-proof fibreglass lightweight concrete of building material class A1 according to EN 13501-1 for fireproof laying of photovoltaic cables inside and outside of buildings. The requirements of accidental contact protection for emergency forces are met. Classification I30 as I duct according to DIN 4102 Part 11 for the protection of rescue and emergency routes.

Mounting of the duct directly on walls or under ceilings and on support systems.

Including countersunk head screws and sealing strip.

Technical data

Technical data

Colour	Grey
Cover fastening	Screw

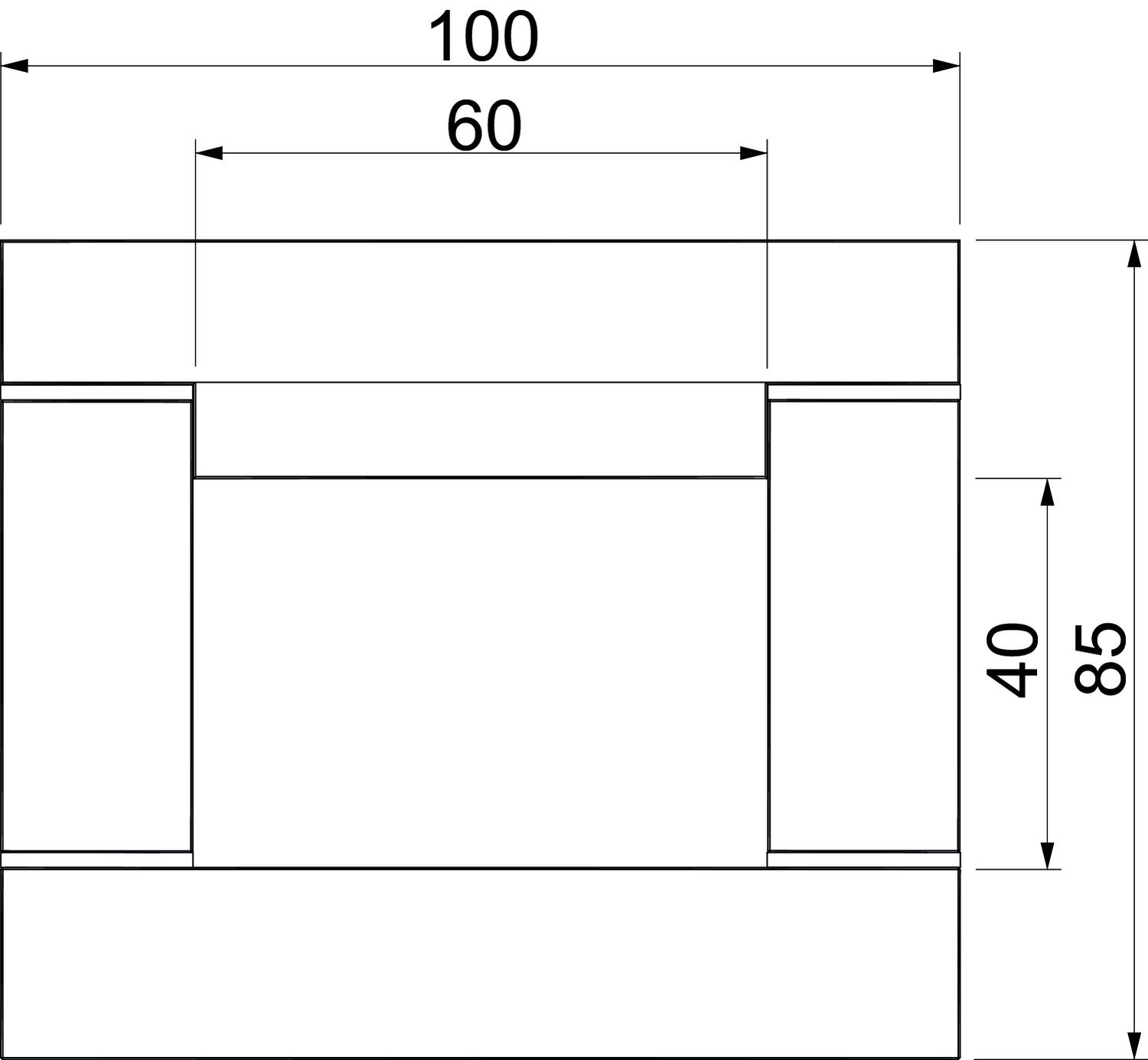

Dimension	1000x40x60
Dimension b	60 mm
Dimension B	100 mm
Dimension h	40 mm
Dimension H	85 mm
Fire resistance class I − installation duct	30
Height	85 mm

Jacketing	Without
Length	1000 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	4
Partitions possible	no
Usable cross-section	2400 mm²
Width	100 mm
With perforation	no

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.
BSKP03-K0406	1000 mm	100 mm	60 mm	85 mm	40 mm	7214701
BSKD12-K1021	1000 mm	330 mm	210 mm	185 mm	105 mm	7215231

Accessories

System accessories

Products	Types	Item no.

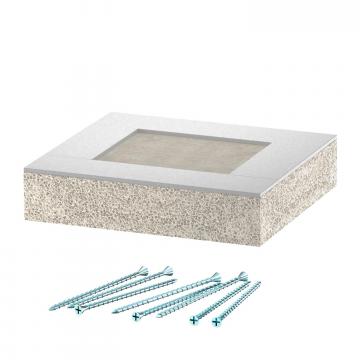

End piece for PYROLINE® Sun PV fire protection duct, type BSKP03-K0406	BSKP03-E0406	7214706
Fire protection duct mortar	KTM	7215500

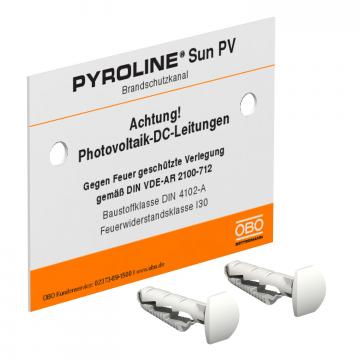

Identification plate	KS-BSKP DE	7214725
