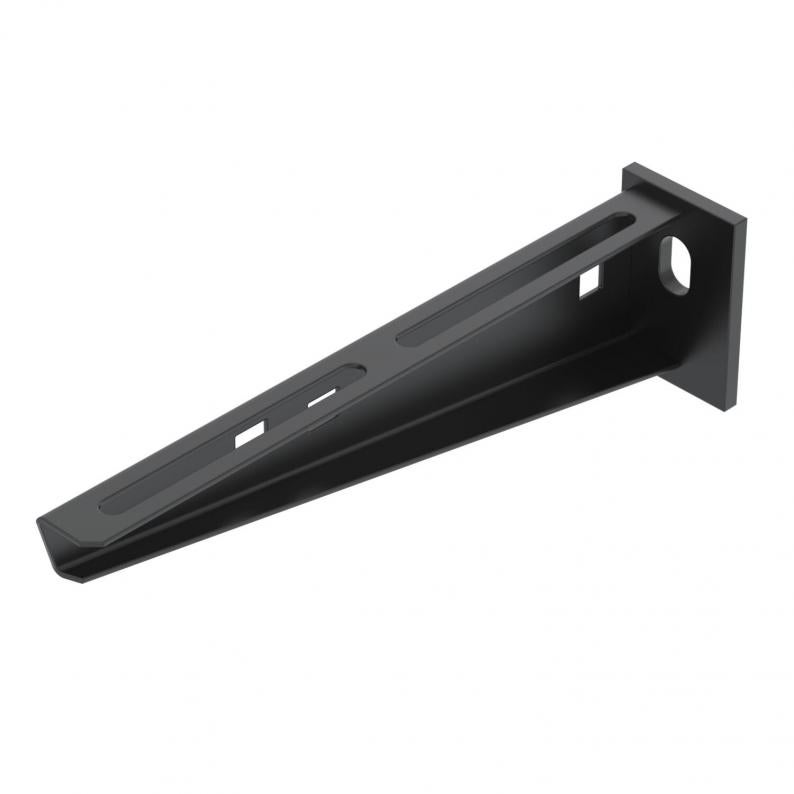

Wall and support bracket AW 15, black

Wall and support bracket AW 15, black

Type AW 15 21 FTK SW
|
Item no. 6420683
|
EAN 4012195887010
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

Light-duty wall and support bracket with welded head plate. Black coated.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length40 mm
Width210 mm
Height60 mm
Dimension A40 mm
Dimension B210 mm
Dimension H60 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.200
for width max.200 mm
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
EPD articleno
Version forWall and support bracket
F in kN1,5 kN
DimensionB210mm
SurfacePES135 - Polyester
MaterialSteel
ColourJet black; RAL 9005

Environmental Data

0,0567 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0567 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0567 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Accessories

Mounting accessories
Type
FRSB 6x12 F

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
AW 15 11 FTK SW
Item no.
6420681
Width
110
F in kN
1,5
Colour
Jet black; RAL 9005
AW 15 31 FTK SW
Item no.
6420685
Width
310
F in kN
1,5
Colour
Jet black; RAL 9005
AW 15 41 FTK SW
Item no.
6421210
Width
410
F in kN
1,5
Colour
Jet black; RAL 9005
AW 15 21 FTK SW
Item no.
6420683
Width
210
F in kN
1,5
Colour
Jet black; RAL 9005
