TP support / wall and support bracket FT

TP support / wall and support bracket FT

Type TPSA 195 FT
Item no. 6364683
EAN 4012196555673
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

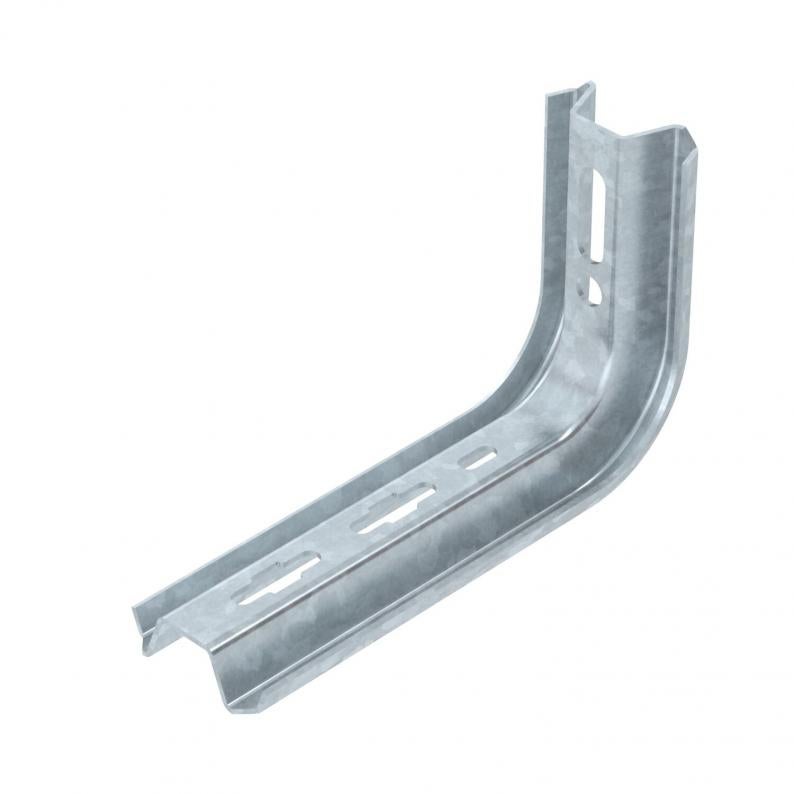

TP support/bracket for fastening to horizontal concrete ceilings and walls.

If the profile is fastened directly to the ceiling or the profile is screwed together as head reinforcement, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • TP profile and suspended support and bracket
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

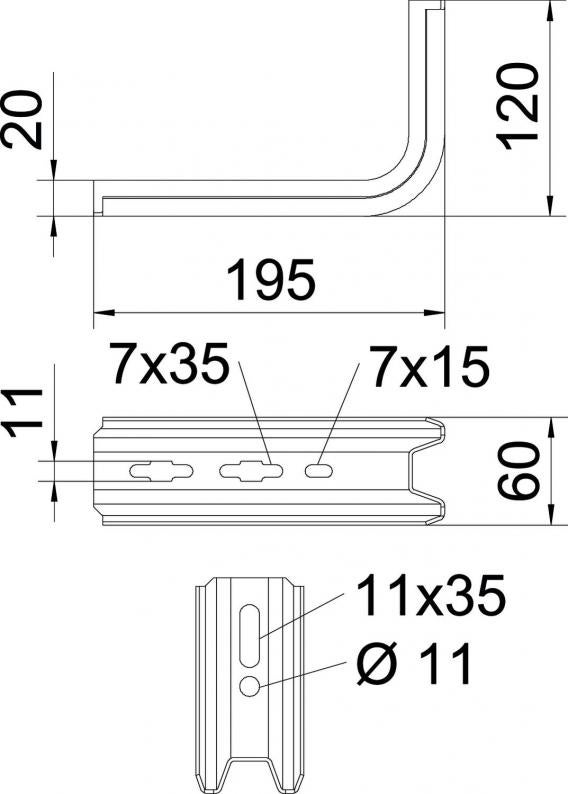

Dimensions

Length195 mm
Width60 mm
Height120 mm
Dimension L195 mm
Dimension B60 mm
Dimension H120 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.150
for width max.150 mm
Version forWall and support bracket
ROHS-conformantyes
F in kN1 kN
DimensionB195mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Product seriesTP Series

Environmental Data

0,9428 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,9428 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,9428 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Item no. 6416586

Spacer FT
Type
DS 4 FT

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

F in kN
TPSA 145 FT
Item no.
6364659
Width
60
F in kN
1,5
Colour
zinc
TPSA 245 FT
Item no.
6364667
Width
60
F in kN
0,9
Colour
zinc
TPSA 345 FT
Item no.
6364675
Width
60
F in kN
0,55
Colour
zinc
TPSA 195 FT
Item no.
6364683
Width
60
F in kN
1
Colour
zinc
