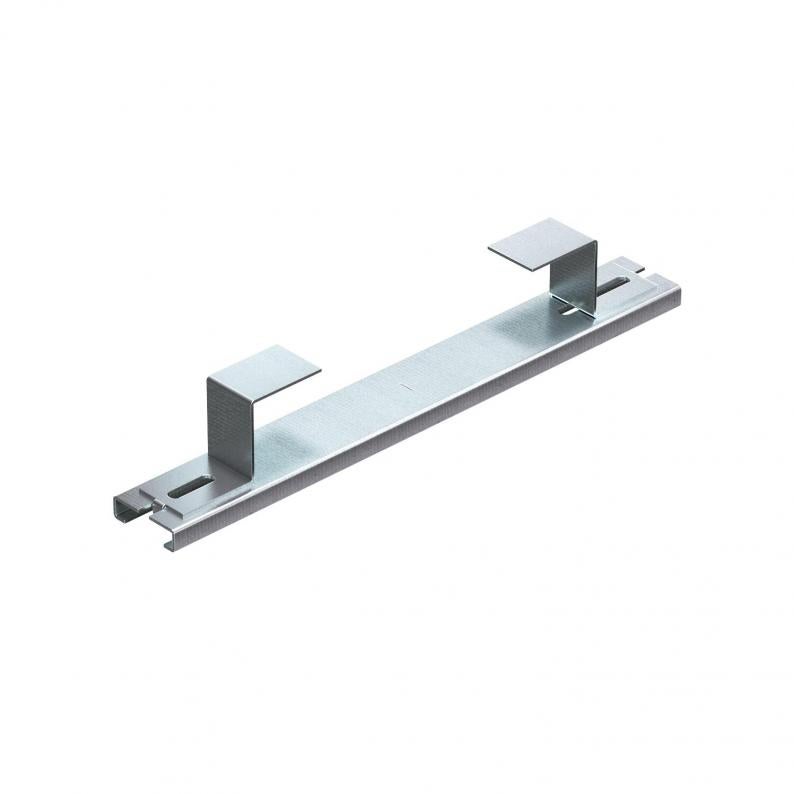

Support element for duct 250
Type IBST 25048
|Item no. 7399915
|EAN 4012197393335
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Support element to support and elevate underfloor installation ducts. With two adjustable placements for levelling units. For duct height 48 mm.
Technical data

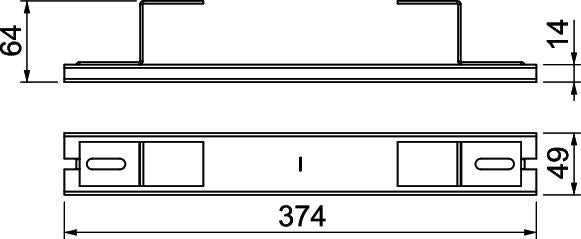

Dimensions
| Length | 374 mm |
|---|---|
| Width | 49 mm |
| Height | 14 mm |
| Dimension L | 374 mm |
| Dimension A | 49 mm |
| Dimension B | 250 mm |
Technical data
| Duct height, min. | 48 mm |
|---|---|
| Dimension | 374x49xx52,1 |
| Surface | Strip galvanised |
| Material | Steel |
Environmental Data
1,901 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,901 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 1,901 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
