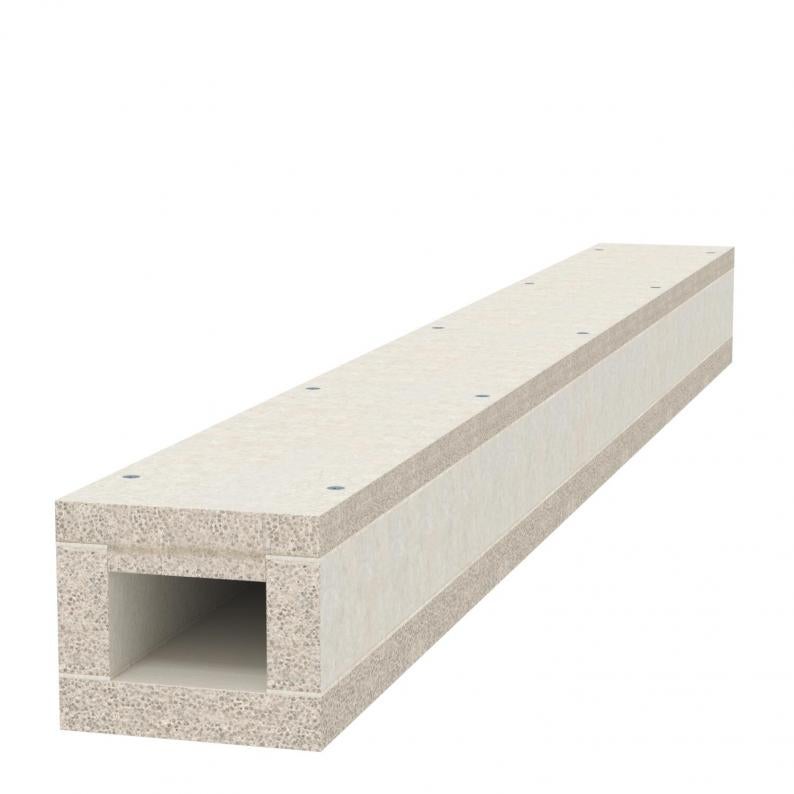

PYROLINE® Sun PV I30 fire protection duct

PYROLINE® Sun PV I30 fire protection duct

Type BSKP03-K0406
|
Item no. 7214701
|
EAN 4012197308681
Show all variants
Item no. / Type
Length
Dimension B
Dimension H
Dimension b
Dimension h

Smallest selling unit: 1 m

m

Description

Fire protection duct made from water and frost-proof fibreglass lightweight concrete of building material class A1 according to EN 13501-1 for fireproof laying of photovoltaic cables inside and outside of buildings. The requirements of accidental contact protection for emergency forces are met. Classification I30 as I duct according to DIN 4102 Part 11 for the protection of rescue and emergency routes.

Mounting of the duct directly on walls or under ceilings and on support systems.

Including countersunk head screws and sealing strip.

Technical data

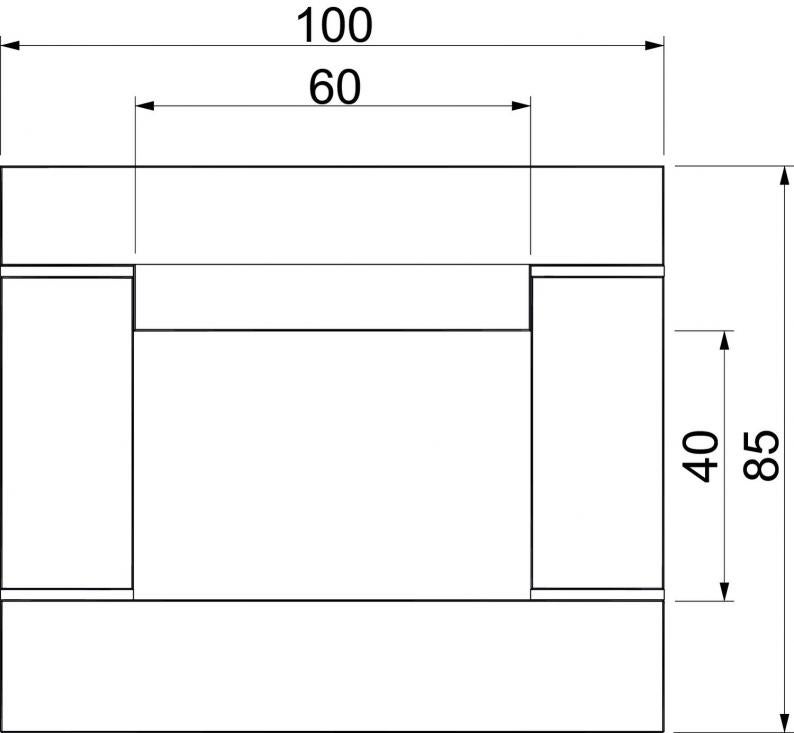

Dimensions

Length1000 mm
Width100 mm
Height85 mm
Dimension B100 mm
Dimension H85 mm
Dimension b60 mm
Dimension h40 mm

Technical data

Usable cross-section2400 mm²
With perforationno
Partitions possibleno
Fire resistance class I − installation duct30
JacketingWithout
Material of the insulationGlass-fibre lightweight concrete
Number of flammable sides4
Cover fasteningScrew
Dimension1000x40x60
MaterialFibreglass lightweight concrete
ColourGrey
Product seriesPYROLINE® sun PV

Accessories

System accessories
Mounting accessories
Type
BSKP03-E0406

Smallest selling unit: 1 piece

piece

Type
KTM

Smallest selling unit: 1 piece

piece

Item no. 7214725

Identification plate
Type
KS-BSKP DE

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (3)
Declarations (1)
Certificates (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Dimension B
Dimension H
Dimension b
Dimension h
BSKD12-K1021
Item no.
7215231
Length
1000
Dimension B
330
Dimension H
185
Dimension b
210
Dimension h
105
BSKP03-K0406
Item no.
7214701
Length
1000
Dimension B
100
Dimension H
85
Dimension b
60
Dimension h
40
