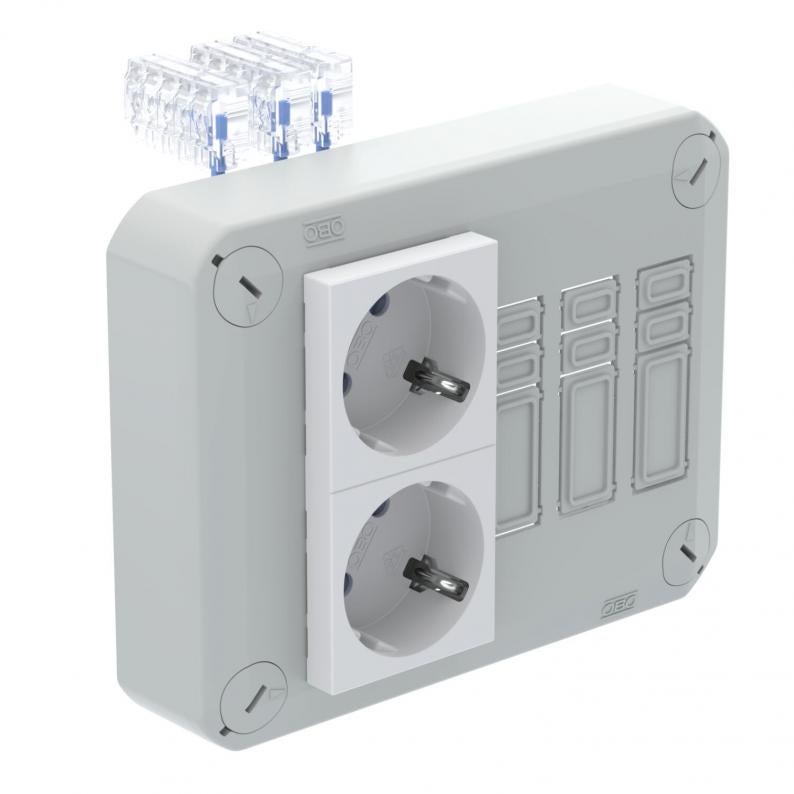

Pluggable cover, equipped, Modul 45

Pluggable cover, equipped, Modul 45

Type D03 2MSD WS
|
Item no. 2006116
|
EAN 4012197419837
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Pluggable cover for the closing of junction boxes, equipped with 2 Module 45 sockets, prewired with lever plug-in connector With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection class IP30.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Protection rating IP 30
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

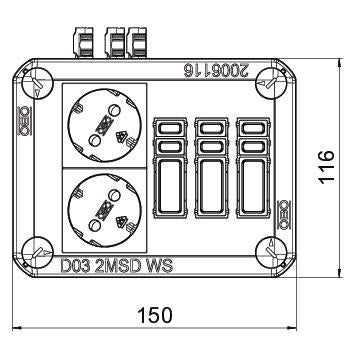

Dimensions

Length150 mm
Width116 mm
Height60 mm

Technical data

Halogen-freeyes
Protection ratingIP30
Version, concealed and cavity wall coverLid with sockets
ShapeRectangular
Fastening typeScrew fastening
ROHS-conformantyes
Dimension150x116x60
MaterialPolypropylene
ColourLight grey; RAL 7035
Product seriesT series

Environmental Data

0,6109 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,6109 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,6109 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Accessories

System accessories
Type
UT01+SB BE

Smallest selling unit: 1 piece

piece

Type
T 100 ZE IP30

Smallest selling unit: 1 piece

piece

Type
SB BE

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

D03 2MSD WS
Item no.
2006116
D03 2MSD WS SW
Item no.
2006266
