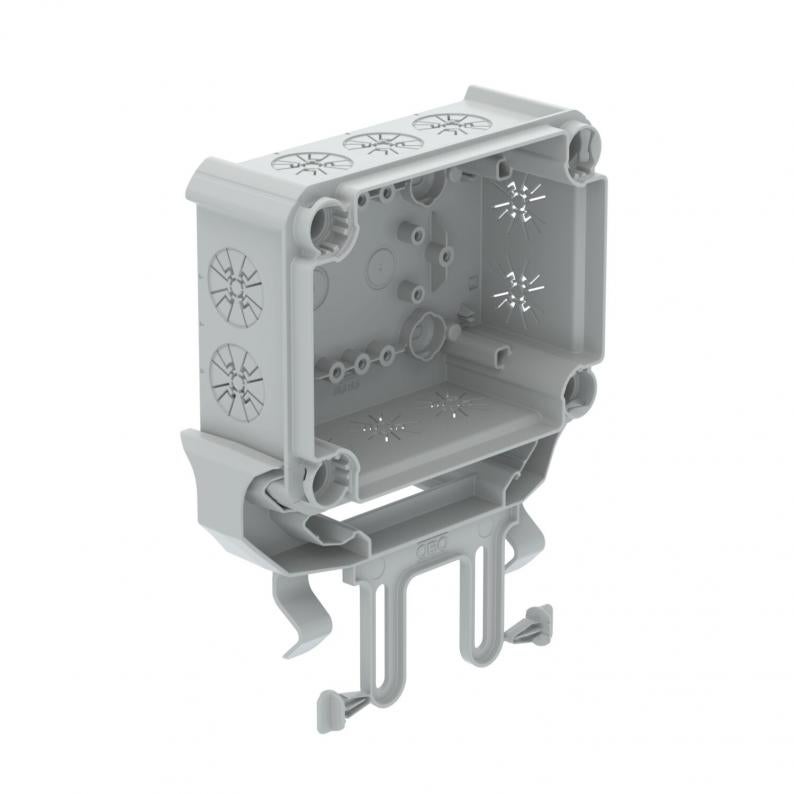

Lower part junction box, with fastening element

Lower part junction box, with fastening element

Type UT01+SB BE
|
Item no. 2006010
|
EAN 4012197420895
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

Pluggable lower part of junction box with universal fastening element for mounting on cable trays Unequipped, without cover. Halogen-free material and UV-resistant. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection class IP30.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

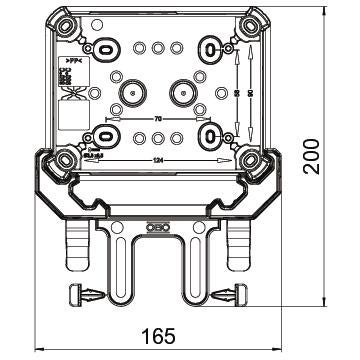

Dimensions

Length201 mm
Width165 mm
Height67 mm

Technical data

Halogen-freeyes
No. of entries10
Entry from rearyes
Transparent lidno
Protection ratingIP30
Nominal voltage500 V
with lidno
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningyes
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.10 mm²
ShapeRectangular
EquipmentWithout
CoverWithout
Cover fasteningNot applicable
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension201x165x67
MaterialPolypropylene, fibreglass reinforced
ColourLight grey; RAL 7035
Junction box cover versionWithout

Environmental Data

0,5595 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,5595 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,5595 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Accessories

System accessories
Type
SB TR

Smallest selling unit: 5 piece

piece

Type
D01 L

Smallest selling unit: 1 piece

piece

Type
D01 2x3p WD

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Colour
UT01+SB BE
Item no.
2006010
No. of entries
10
Protection rating
IP30
Colour
Light grey; RAL 7035
UT01
Item no.
2006024
No. of entries
10
Protection rating
IP30
Colour
Light grey; RAL 7035
UT01 SW
Item no.
2006216
Protection rating
IP30
Colour
Graphite black; RAL 9011
