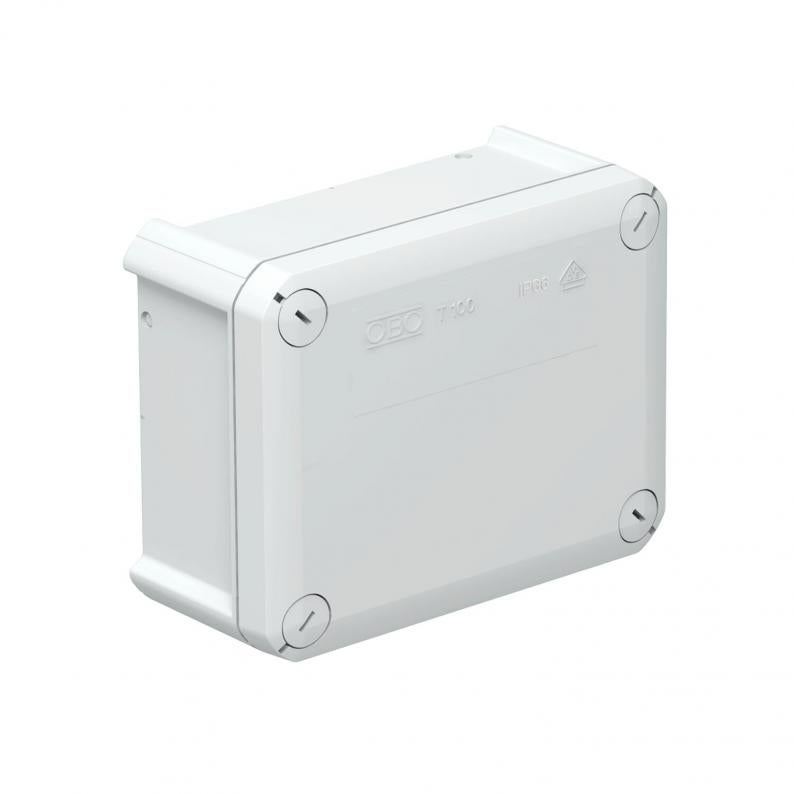

Junction box T 100, closed, OBO EcoLine

Junction box T 100, closed, OBO EcoLine

Type T 100 OE ECO
|
Item no. 2007257
|
EAN 4012197497279
Show all variants
Item no. / Type
Clear internal dimensions

Smallest selling unit: 1 piece

piece

Description

Junction box for the connection of cables indoors and in protected outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • Nominal cross-section 10 mm²
  • Nominal voltage 500 V
  • IK Code 07
  • OBO ECOLine
  • CO2-reduced material
  • Recycling material ratio in %
  • CO₂ footprint (PCF)

Technical data

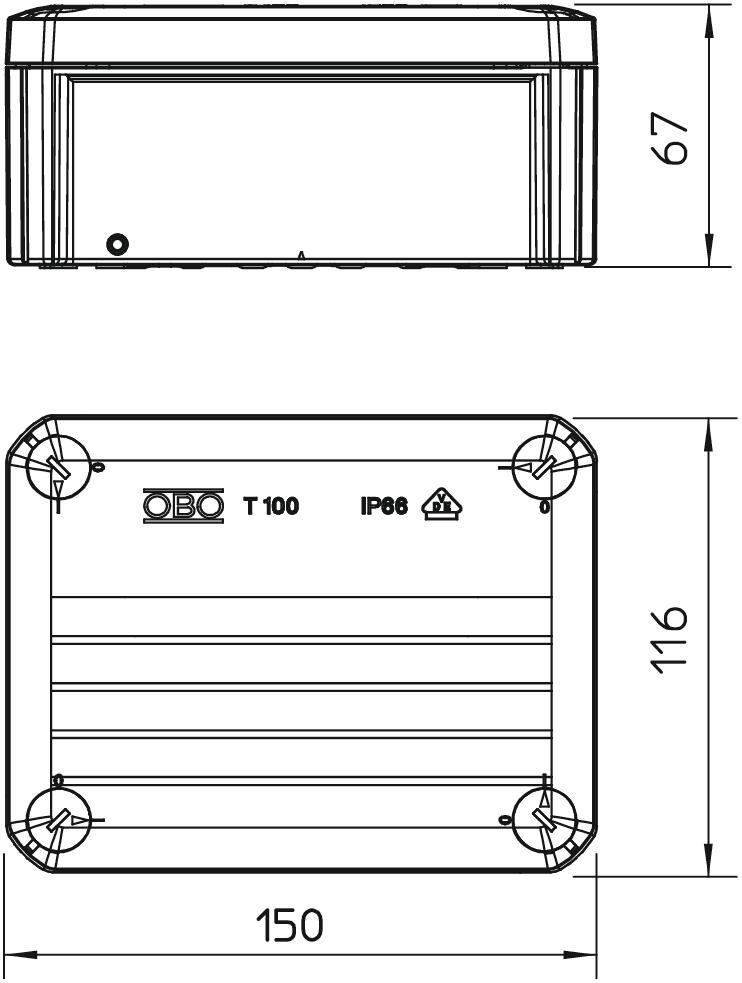

Dimensions

Length150 mm
Width116 mm
Height67 mm
Clear internal dimensions136x102x57 mm

Technical data

Type of entryNone
Halogen-freeyes
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationWithout
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.10 mm²
ShapeRectangular
EquipmentWithout
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-25 °C
Permitted temperature range, max.65 °C
Flame-resistantAcc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
Dimension150x116x67
MaterialPolypropylene Eco
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid

Environmental Data

0,3649 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,3649 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,3649 kg CO₂e
Determination date of CO2 value2026-02-27T00:00:00.000+0100
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Recycled material content 48 %

Downloads

0 selected

Data sheet (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

T 100 ECO
Item no.
2007079
Clear internal dimensions
136x102x57
No. of entries
10
Protection rating
IP66
Colour
Light grey; RAL 7035
T 100 OE ECO
Item no.
2007257
Clear internal dimensions
136x102x57
Protection rating
IP66
Colour
Light grey; RAL 7035
