Grip 10, OBO EcoLine

Grip 10, OBO EcoLine

Type 2031 10 ECO
|
Item no. 2205382
|
EAN 4012197498139
Show all variants
Item no. / Type
2205382 / 2031 10 ECO
No. of conductors NYM 3 x 1.5
10

Smallest selling unit: 50 piece

piece

Description

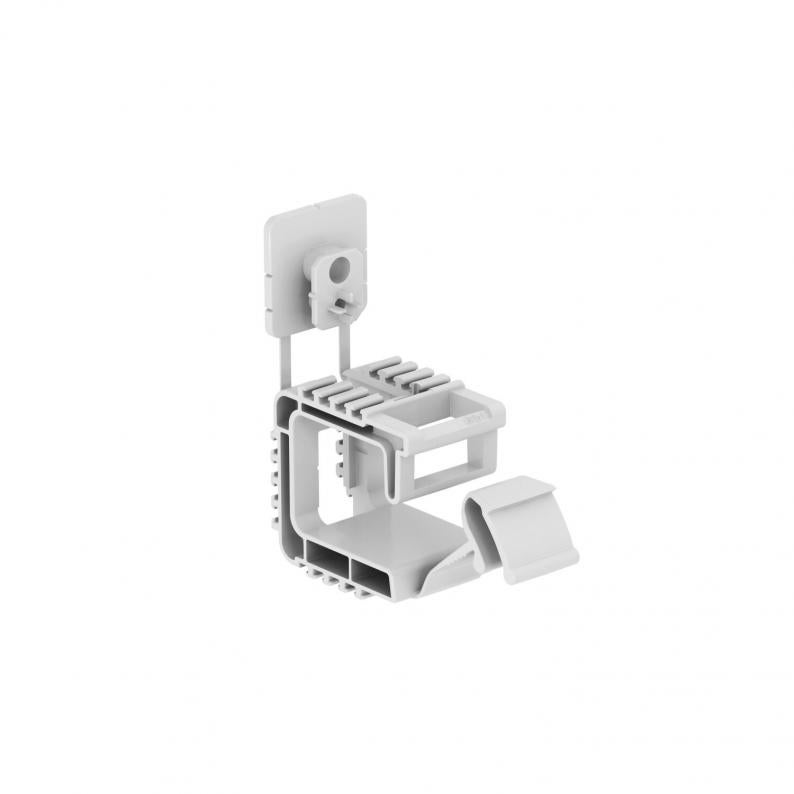

Collection clamp with pointed fastening element, for the mounting of up to 10 cables NYM 3 x 1.5 m2 on walls or ceilings. Fastening with impact anchor or push-fit anchor. Also suitable for the fastening with gas- and battery-operated firing tools of the brands Bosch, Fischer and Spit (nose diameter Ø 7 mm). Fastening hole: Ø 6 mm. Recommended fastening distance of 250–400 cm when fully assigned, depending on the respective national specifications/norms.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • OBO Grip, wall routing type
  • OBO Grip, ceiling routing type
  • gas-/battery-actuated setting tool
  • OBO ECOLine
  • CO2-reduced material
  • Recycling material ratio in %
  • Packaging made entirely from recycled cardboard
  • Packaging without plastic
  • Reusable after de-installation/dismantling
  • CO₂ footprint (PCF)

Technical data

Technical data

Maintain electrical functionsno
No. of conductors NYM 3 x 1.510
Halogen-freeyes
Flame-resistant versionno
With anchorno
Breaking load0,32 kN

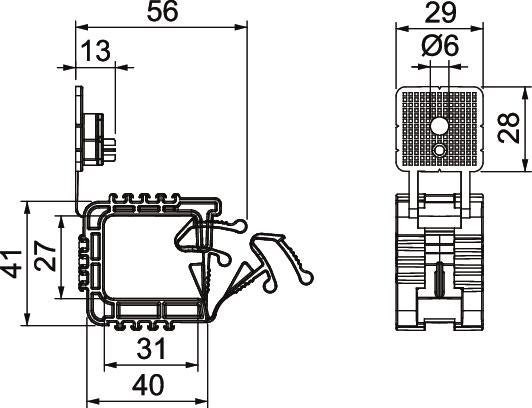

Dimension10x NYM3x1,5
MaterialPolypropylene Eco
ColourLight grey; RAL 7035

Environmental Data

0,0246 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
Recycled material content 49 %
CO2 Footprint (GWP) Cradle-to-Gate0,0246 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0246 kg CO₂e
Determination date of CO2 value2026-02-27T00:00:00.000+0100
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Declarations (1)
Product images (2)
Tender specifications (1)

Variants

2031 10 ECO
Item no.
2205382
No. of conductors NYM 3 x 1.5
10
