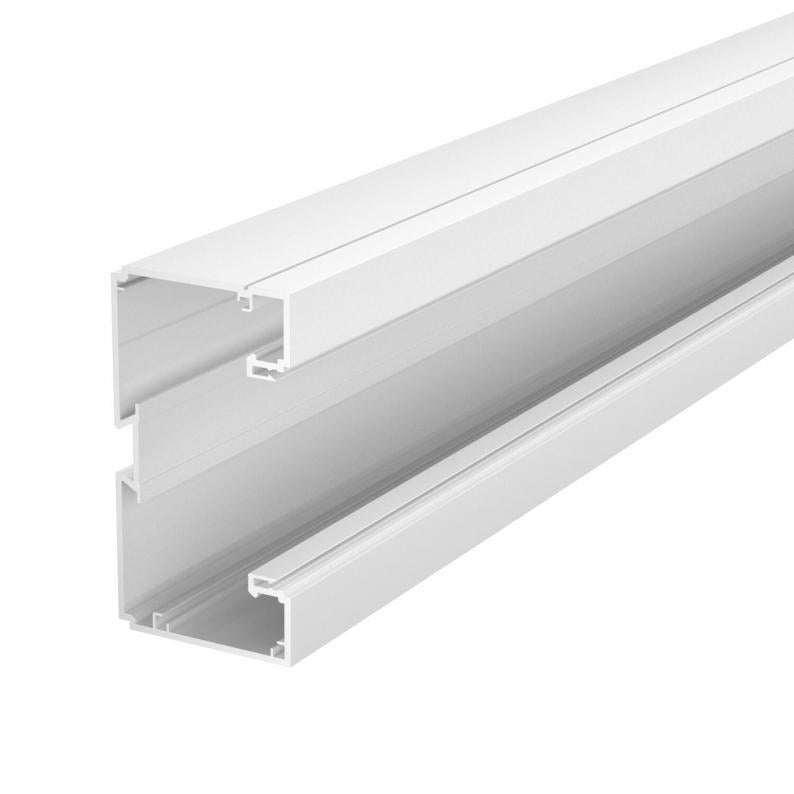

Device installation trunking Signa Base 70130

Device installation trunking Signa Base 70130

Type BRK 70130 rws
Item no. 6132726
EAN 4012196717439
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

m

Description

Trunking base of the Signa Base device installation trunking for covered cable routing and device installation in internal areas. The scope of delivery contains two trunking couplings.

Trunking base with base perforation for direct mounting on the wall. Direction changes with the fittings and close the trunking ends with end pieces.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width130 mm
Height70 mm

Technical data

Mounting perforation in baseyes
Usable cross-section7456 mm²
Halogen-freeno
Number of insertable partitions1
Cable retaining clipno
Protective filmyes
Duct connectoryes
Protection ratingIP40
Symmetricalno
Rectangular shapeyes
Number of covers1
Rear panel version (inner side)Continuous DIN rail
Cover mounting typeInternal
Protection rating IK codeIK07.
Cover suppliedno
ROHS-conformantyes
Cover width79 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno
Product seriesSigna Base

Environmental Data

2,7277 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate2,7277 kg CO2e / 1 Meter
CO₂ Footprint (GWP)2,7277 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories
Type
BRK GD gr

Smallest selling unit: 10 piece

piece

Type
BRK GD 2CEE gr

Smallest selling unit: 4 piece

piece

Type
BRK 700802 rws

Smallest selling unit: 2 m

m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Colour
BRK 70130 cws
Item no.
6132725
Length
2000
Colour
Cream; RAL 9001
BRK 70130 rws
Item no.
6132726
Length
2000
Colour
Pure white; RAL 9010
BRK 70130 lgr
Item no.
6132727
Length
2000
Colour
Light grey; RAL 7035
