Cover Signa Base OT 700802

Cover Signa Base OT 700802

Type BRK 700802 rws
Item no. 6132736
EAN 4012196717873
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

m

Description

Cover for closing the Signa Base device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

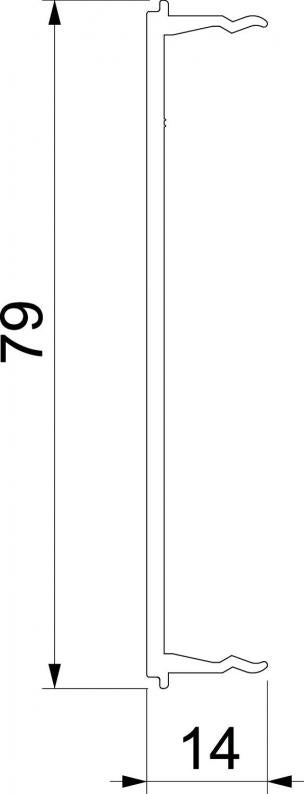

Dimensions

Length2000 mm
Width79,4 mm
Height14 mm

Technical data

Halogen-freeno
Protective filmyes
Protection ratingIP40
Cover mounting typeInternal
Protection rating IK codeIK07.
Version forMiscellaneous
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension2000x79x14
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno
Product seriesSigna Base

Environmental Data

0,501 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,501 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,501 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
BRK 700802 cws
Item no.
6132735
Length
2000
Colour
Cream; RAL 9001
BRK 700802 rws
Item no.
6132736
Length
2000
Colour
Pure white; RAL 9010
BRK 700802 lgr
Item no.
6132737
Length
2000
Colour
Light grey; RAL 7035
