Partition BRK TW
Type BRK TW
Item no. 6133610
EAN 4012196736300
Item no. / Type
6133610 / BRK TW
Length
2000 mm
Smallest selling unit: 2 m
2m
m
Description

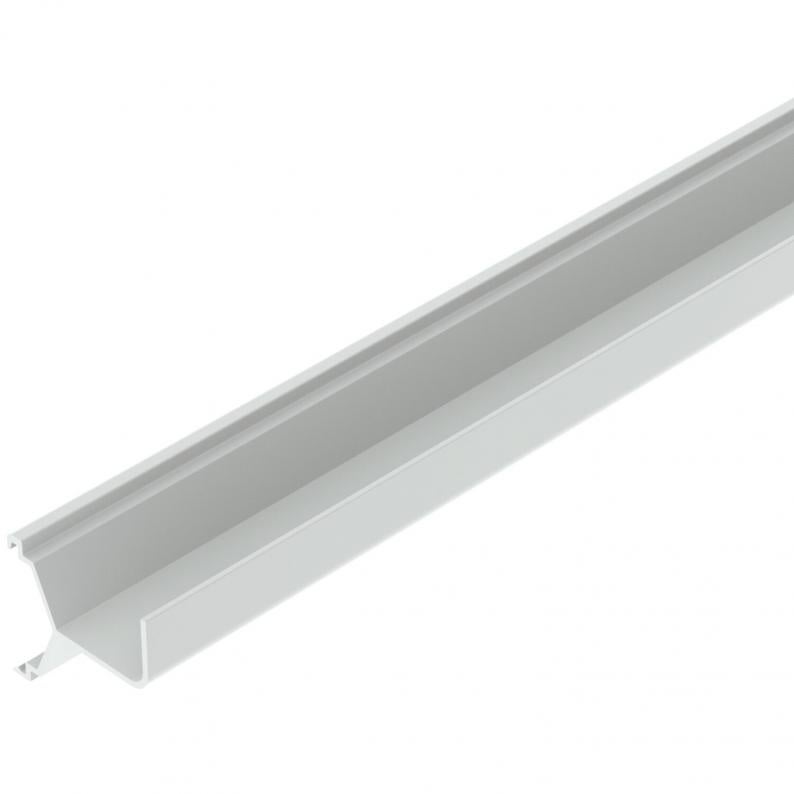

Partition for trunking system. For mounting on a 35 mm DIN rail.
Technical data

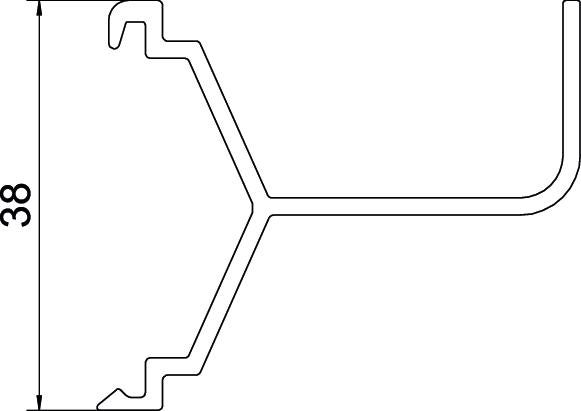

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 39 mm |
| Height | 45 mm |
Technical data
| Halogen-free | no |
|---|---|
| Protection rating | IP40 |
| Protection rating IK code | IK07. |
| Fastening type | Lockable |
| Version for | Single |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Product series | Signa Base |
Environmental Data
0,3955 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3955 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 0,3955 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
