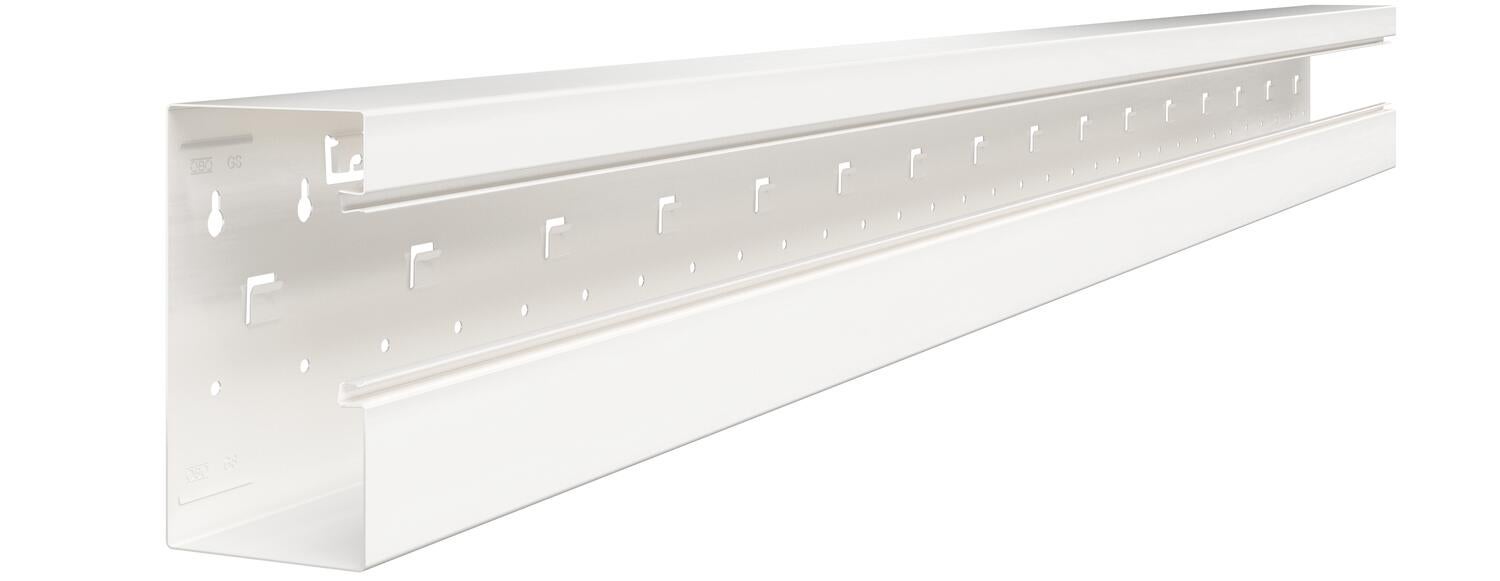

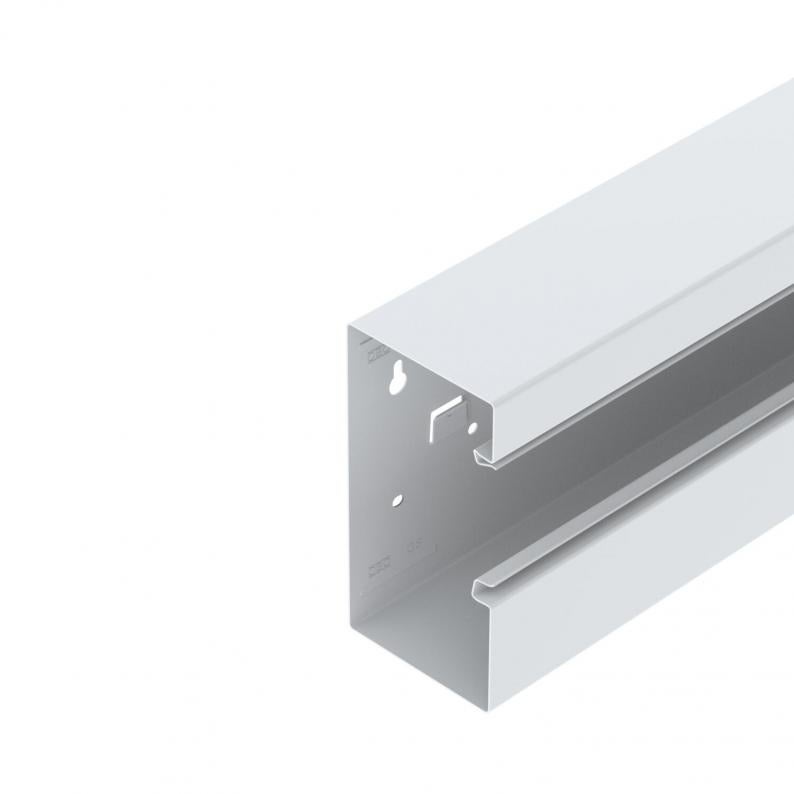

Device installation trunking Rapid 80, trunking width 170, trunking height 90, asymmetrical

Type GS-A90170RW

Item no. 6277900

EAN 4012195663317

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6277900 / GS-A90170RW

Length

2000 mm

Smallest selling unit: 2 m

Description

GS device installation trunking for mounting on the wall or on fastening panels. The GS device installation trunking possesses self-contacting locking straps to accept a sheet steel partition. The equipotential bonding between the trunking bases takes place using the trunking coupling. The protective measure and the equipotential bonding is guaranteed between the cover and the base by the self-contacting trunking cover. The real system opening is 76.5 mm. The cover must be ordered separately.

Overlengths up to 3,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the painted device installation trunking are laminated.

Technical data

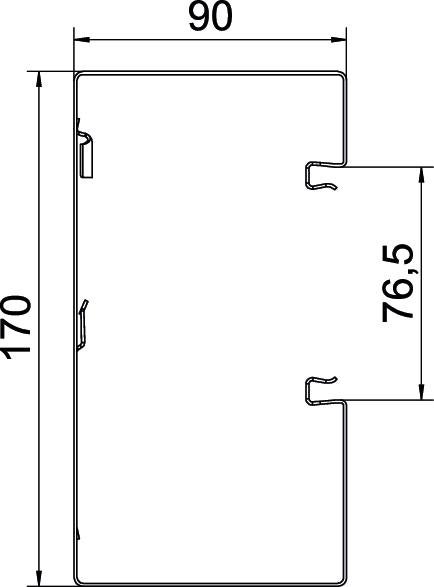

Dimensions

Length	2000 mm
Width	170 mm
Height	90 mm

Technical data

Mounting perforation in base	yes
Usable cross-section	13450 mm²
Halogen-free	yes
Number of insertable partitions	1
Cable retaining clip	no
Protective film	yes
Duct connector	no
Protection rating	IP30
Symmetrical	no
Rectangular shape	yes
Number of covers	1
Rear panel version (inner side)	With locking lugs
Cover mounting type	Internal
Protection rating IK code	IK10
Cover supplied	no
Base perforation	with base perforation
Cover width	76,5 mm
Permitted temperature range, min.	-25 °C
Permitted temperature range, max.	60 °C
Dimension	90x170x2000
Material	Steel
Colour	Pure white; RAL 9010
Antibacterial treatment	no
Product series	Rapid 80®

Environmental Data

8,9519 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate

CO2 Footprint (GWP) Cradle-to-Gate	8,9519 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	8,9519 kg CO₂e
Determination date of CO2 value	2025-05-14T00:00:00.000+0200
Declared Unit	Metres
Declared Unit Quantity	1
