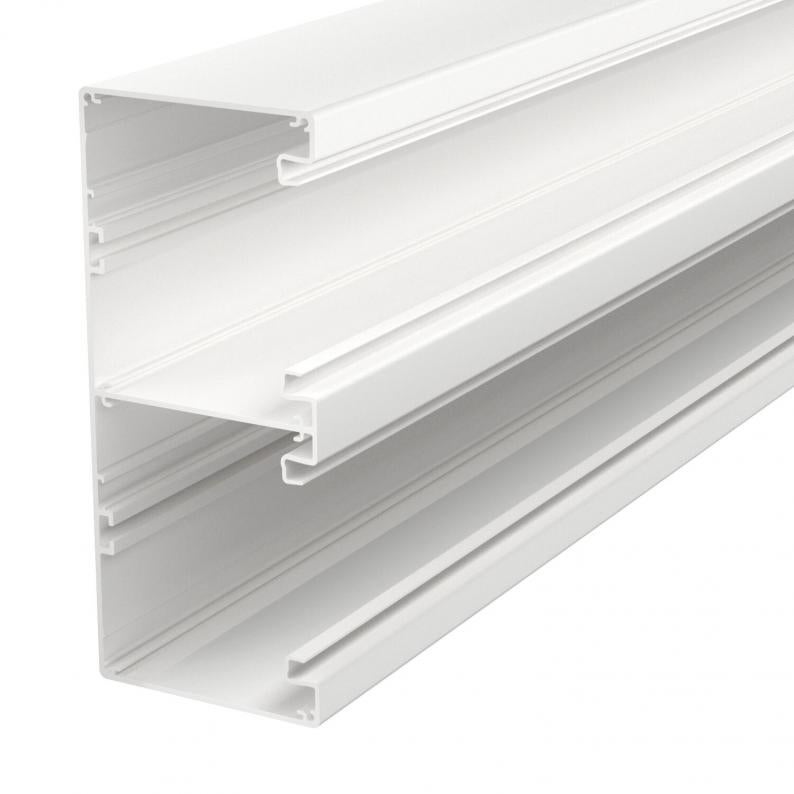

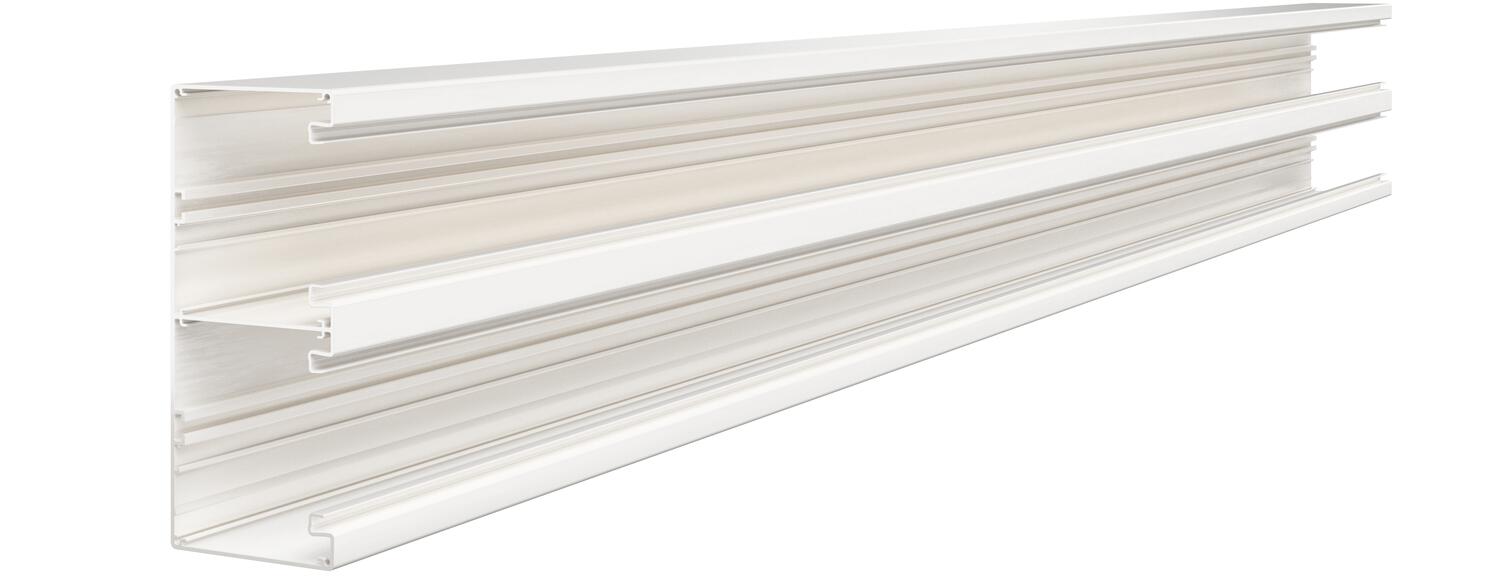

Device installation trunking Rapid 80, symmetrical, double, trunking width 210, trunking height 90

Type GA-D90210RW

Item no. 6279600

EAN 4012195769491

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

Length

Smallest selling unit: 2 m

Description

Device installation trunking Without base perforation suitable for direct wall mounting or mounting on panels. Over-lengths up to 6,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the device installation trunking are laminated.
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by tolerance based on the material and process conditions, cannot be avoided (according to DIN 17 611). Alternatively, we recommend powder coating in the colour RAL 9006 (white aluminium).

The cover must be ordered separately. We recommend the use of the duct clamp.

Technical data

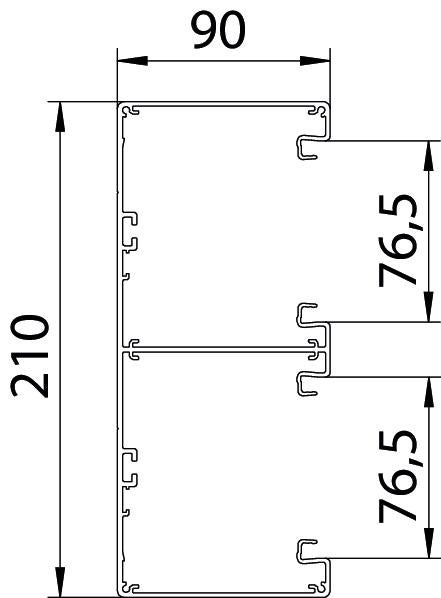

Dimensions

Length	2000 mm
Width	210 mm
Height	90 mm

Technical data

Mounting perforation in base	no
Usable cross-section	14688 mm²
Halogen-free	yes
Number of insertable partitions	2
Cable retaining clip	no
Protective film	yes
Duct connector	no
Protection rating	IP30
Symmetrical	yes
Rectangular shape	yes
Number of covers	2
Cover width 2	76,5 mm
Rear panel version (inner side)	Continuous C profile
Cover mounting type	Internal
Protection rating IK code	IK10
Cover supplied	no
Base perforation	Without base perforation
Cover width	76,5 mm
Permitted temperature range, min.	-25 °C
Permitted temperature range, max.	60 °C
Dimension	90x210x2000
Material	Aluminium
Colour	Pure white; RAL 9010
Antibacterial treatment	no
Product series	Rapid 80®

Environmental Data

48,8038 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate

CO2 Footprint (GWP) Cradle-to-Gate	48,8038 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	48,8038 kg CO₂e
Determination date of CO2 value	2025-05-14T00:00:00.000+0200
Declared Unit	Metres
Declared Unit Quantity	1
