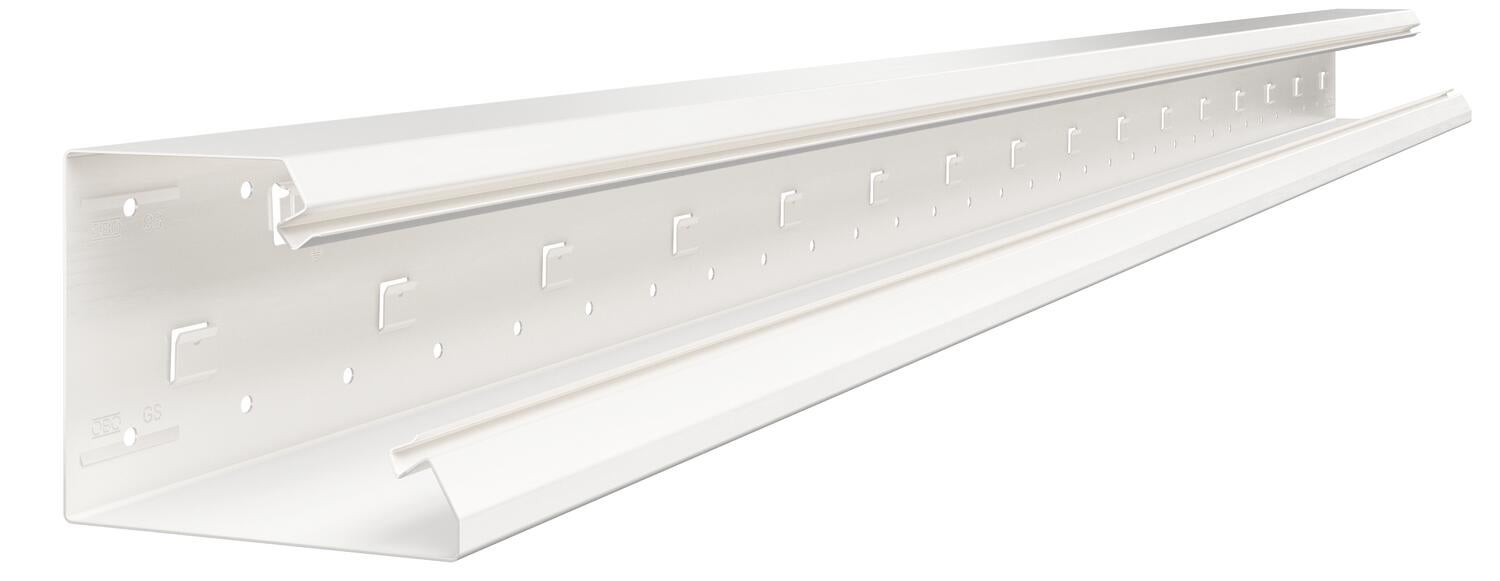

Device installation trunking, desk trunking

Type GEK-SA133110RW

Item no. 6282700

EAN 4012195137337

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6282700 / GEK-SA133110RW

Length

2000 mm

Smallest selling unit: 2 m

Description

GEK-S device installation trunking suitable for installation on desks, etc. The visible surfaces of the painted GEK-S device installation trunking are laminated. The trunking system possesses self-contacting locking straps to accept a sheet steel partition. The equipotential bonding between the trunking bases takes place using the coupling. The protective measure and the equipotential bonding is guaranteed between the cover and the base by the self-contacting trunking cover. The actual system opening is 76.5 mm. The cover must be ordered separately.

Technical data

Dimensions

Length	2000 mm
Width	110 mm
Height	133 mm

Technical data

Mounting perforation in base	yes
Usable cross-section	9950 mm²
Halogen-free	yes
Number of insertable partitions	1
Cable retaining clip	no
Protective film	yes
Duct connector	no
Protection rating	IP30
Symmetrical	no
Rectangular shape	no
Number of covers	1
Rear panel version (inner side)	With locking lugs
Cover mounting type	Internal
Protection rating IK code	IK10
Cover supplied	no
ROHS-conformant	yes
Base perforation	with base perforation
Cover width	76,5 mm
Permitted temperature range, min.	-25 °C
Permitted temperature range, max.	60 °C
Dimension	133x110x2000
Material	Steel
Colour	Pure white; RAL 9010
Antibacterial treatment	no
Product series	Rapid 80®

Environmental Data

7,6511 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate

CO2 Footprint (GWP) Cradle-to-Gate	7,6511 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	7,6511 kg CO₂e
Determination date of CO2 value	2025-05-14T00:00:00.000+0200
Declared Unit	Metres
Declared Unit Quantity	1
