PYROLINE® Con S BSK I90/E30 protection duct 1000 | 188 | 60 | 140 | 50

PYROLINE® Con S BSK I90/E30 protection duct

Item no. 7215175 | EAN 4012197308360

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

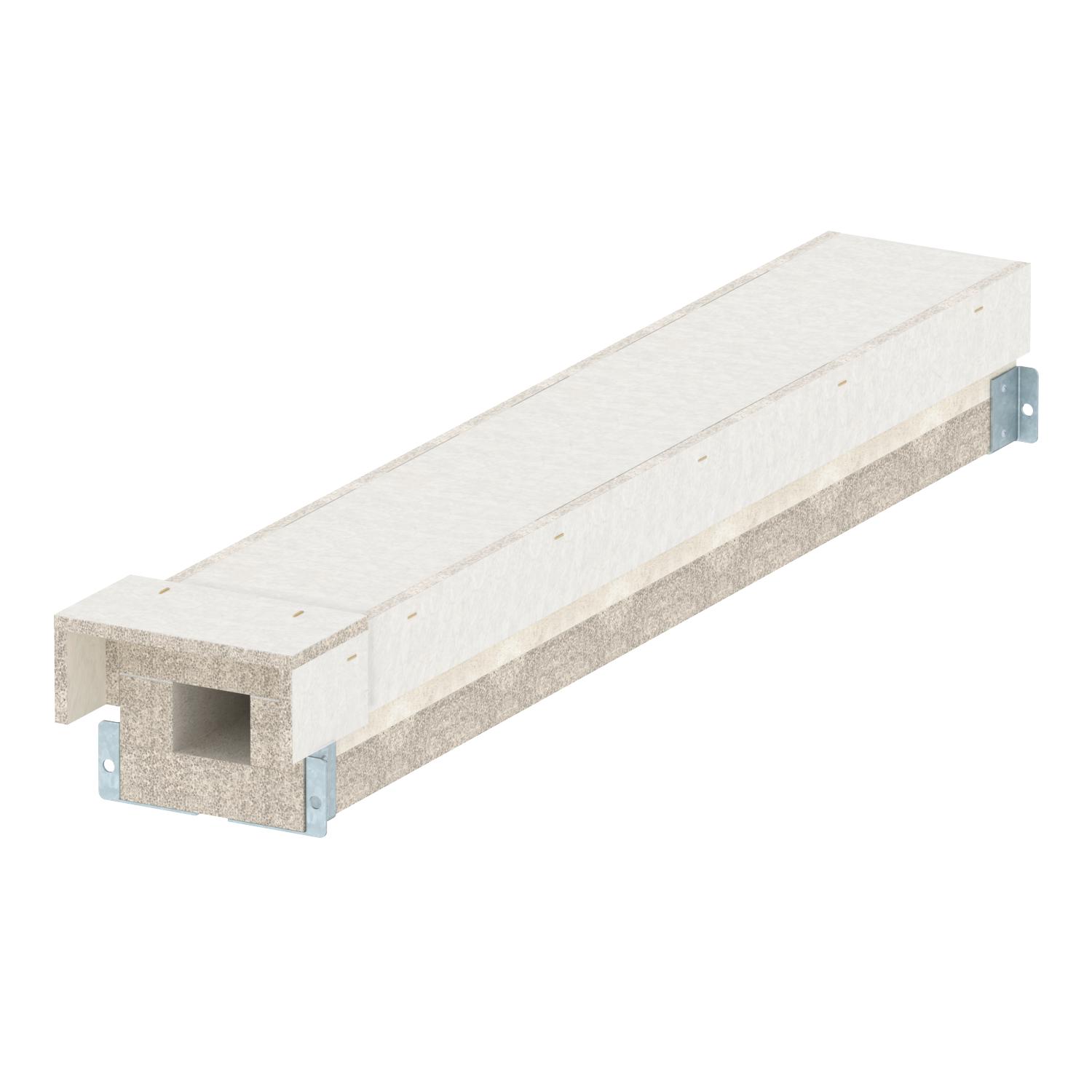

Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I90 as I duct according to DIN 4102 Part 11 and classification E30 as E duct according to DIN 4102 Part 12.

Mounting of the duct on wall brackets or as ceiling mounting with suspended supports and brackets or on a U transverse profile suspended with threaded rods. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Fire protection duct with cover and pre-mounted connection fittings, connection crews and sealing strips.

Technical data

Technical data

Colour	Grey
Cover fastening	Loose

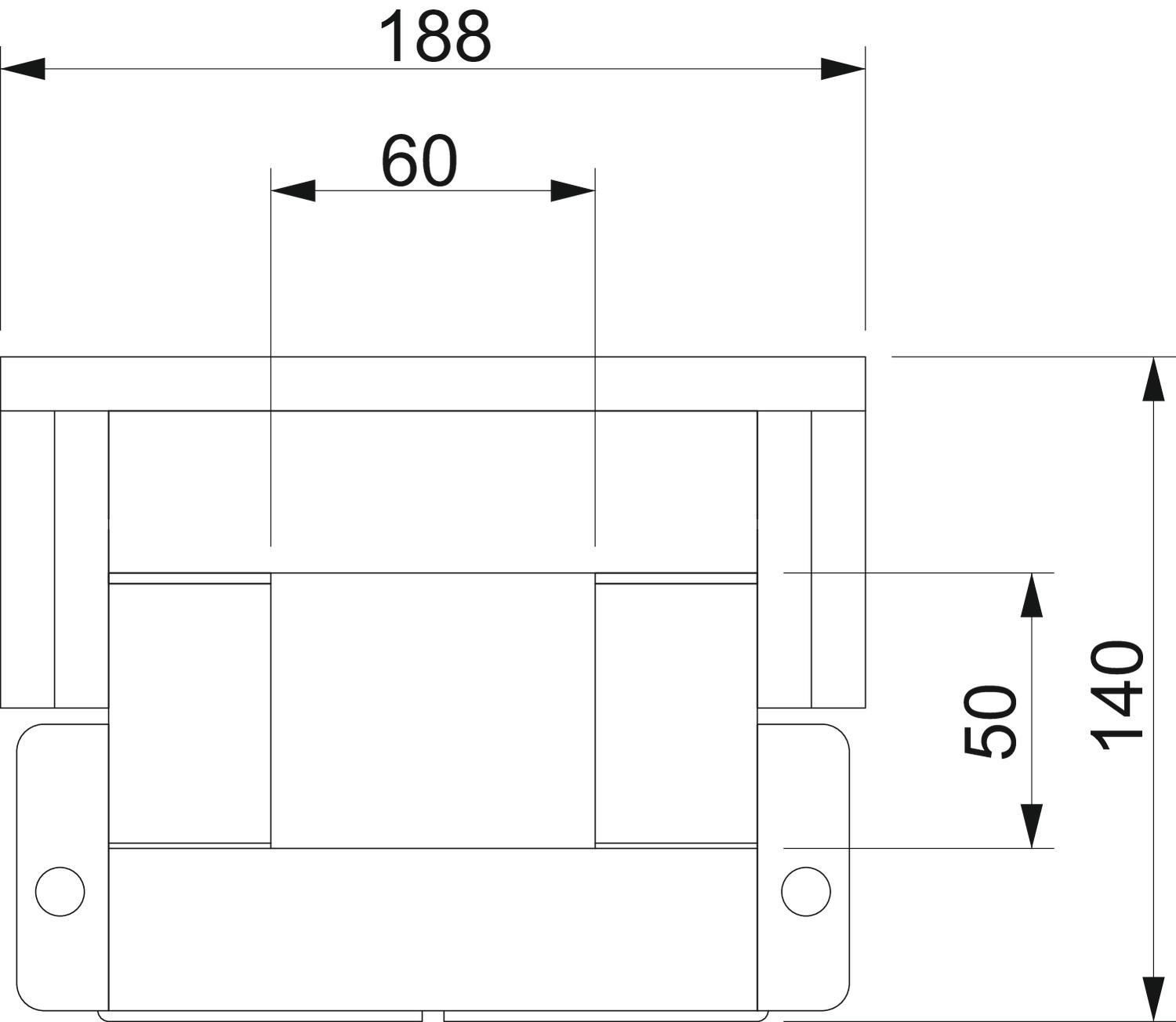

Dimension	1000x50x60
Dimension b	60 mm
Dimension B	188 mm
Dimension H	140 mm
Dimension h	50 mm
Fire resistance class E − function maintenance	30
Fire resistance class I − installation duct	90
Height	140 mm

Jacketing	Without
Length	1000 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	4
Partitions possible	yes
Usable cross-section	3000 mm²
Width	188 mm
With perforation	no

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.
BSKH09-K0506	1000 mm	188 mm	60 mm	140 mm	50 mm	7215175
BSKH09-K0511	1000 mm	238 mm	110 mm	140 mm	50 mm	7215179
BSKH09-K0521	1000 mm	338 mm	210 mm	140 mm	50 mm	7215183
BSKH09-K1021	1000 mm	338 mm	210 mm	195 mm	105 mm	7215187

Accessories

System accessories

Products	Types	Item no.

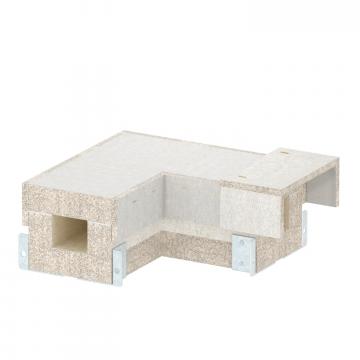

90° bend for PYROLINE® Con S BSKH09-K0506 fire protection duct	BSKH09-B0506	7215604

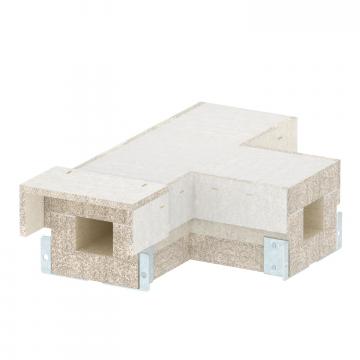

T piece for PYROLINE® Con S BSKH09-K0506 fire protection duct	BSKH09-T0506	7215633

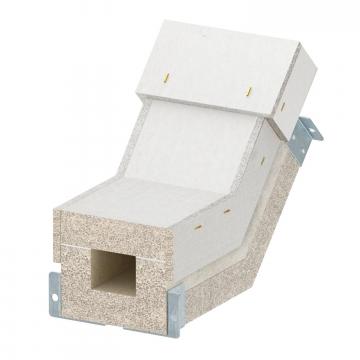

Rising vertical bend for PYROLINE® Con S BSKH09-K0506 fire protection duct	BSKH09-VS0506	7215650

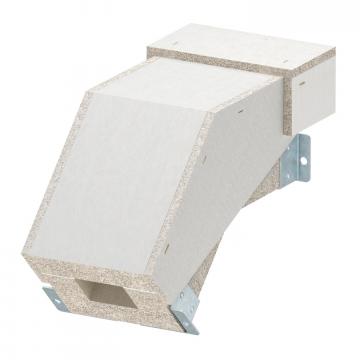

Falling vertical bend for PYROLINE® Con S BSKH09-K0506 fire protection duct	BSKH09-VF0506	7215660

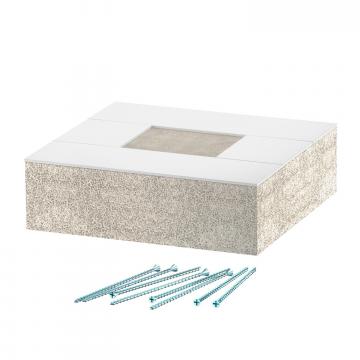

End piece for PYROLINE® Con S BSKH09-K0506 fire protection duct	BSKH09-E0506	7215591
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464
Fire protection duct mortar	KTM	7215500

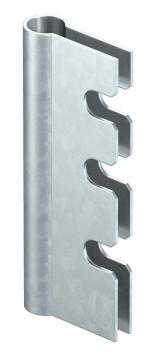

Threaded rod adapter E30	KGA	7215395
Separating retainer 45 FS	TSG 45 FS	6062033
Bolt for separating retainer fastening, KRS 6x30	KRS 6x30	3498100
Identification plate	KS-K DE	7214734
Identification plate for maintenance of electrical function	KS-E DE	7205423
