90° bend for PYROLINE® Con S BSKH09-K0506 fire protection duct
Item no. 7215604 | EAN 4012197308445
- Product description
-

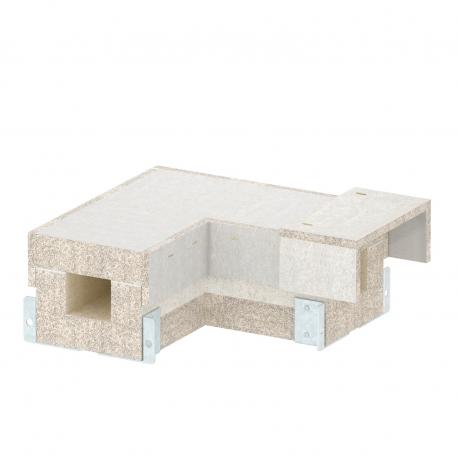

Product description90° bend for PYROLINE® Con S fire protection duct, type BSKH09-K0506,consisting of fibreglass lightweight concrete which is resistant to water and frost for the creation of horizontal changes of direction of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

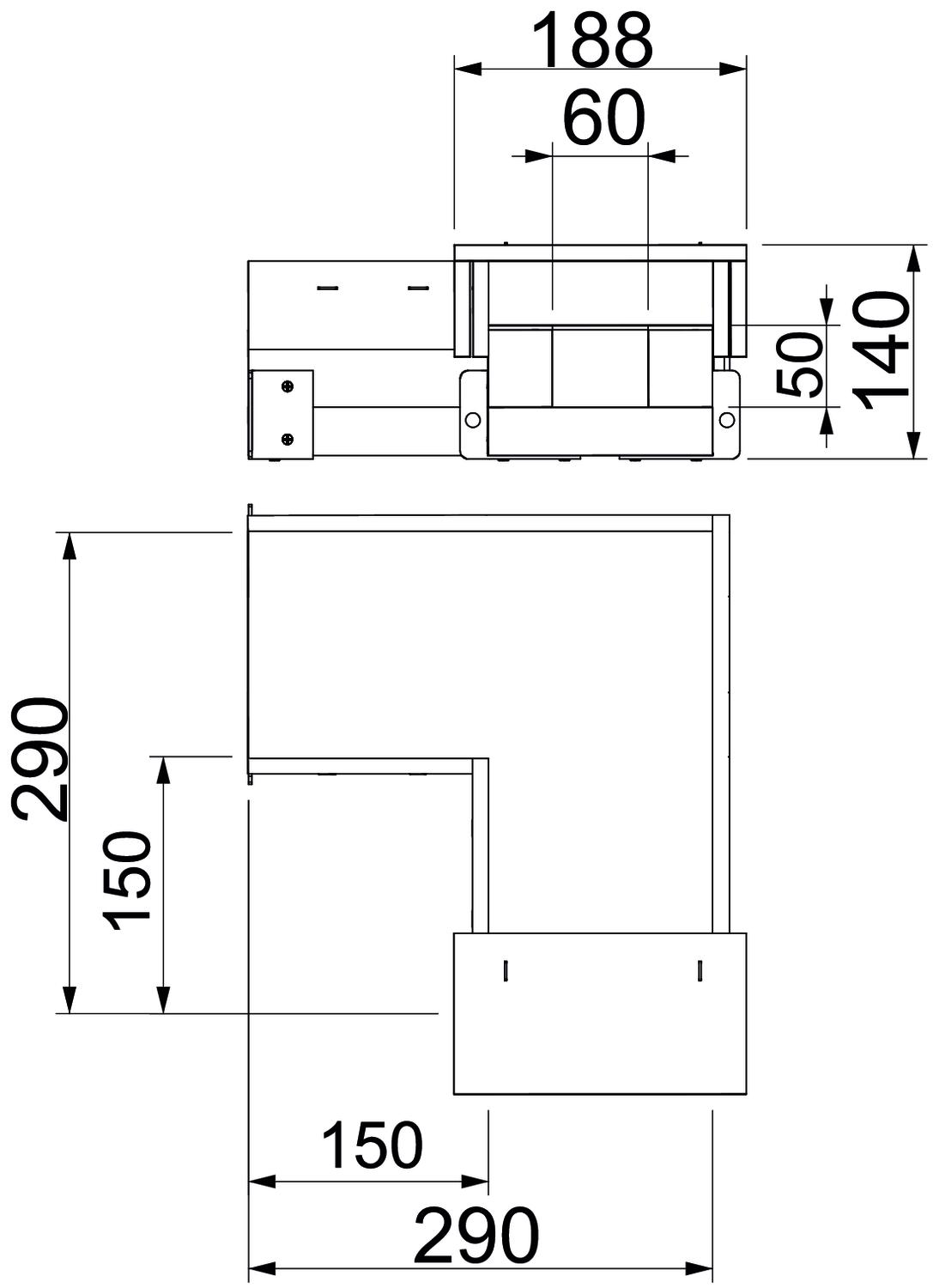

Angle of the bend 90 ° Colour Grey Cover fastening Loose Dimension 50x60 Dimension b 60 mm Dimension B 188 mm Dimension H 140 mm Dimension h 50 mm Dimension L 290 mm Fire resistance class E − function maintenance 30 Fire resistance class I − installation duct 90 Height 140 mm Jacketing Without Length 314 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 Partitions possible yes Width 354 mm With perforation no - All types
- Downloads
-
Data sheet BSKH09-B0506 / 7215604 , 0.20MB , pdfSafety data sheet BSKH09-B0506 / 7215604 , 2.00MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
