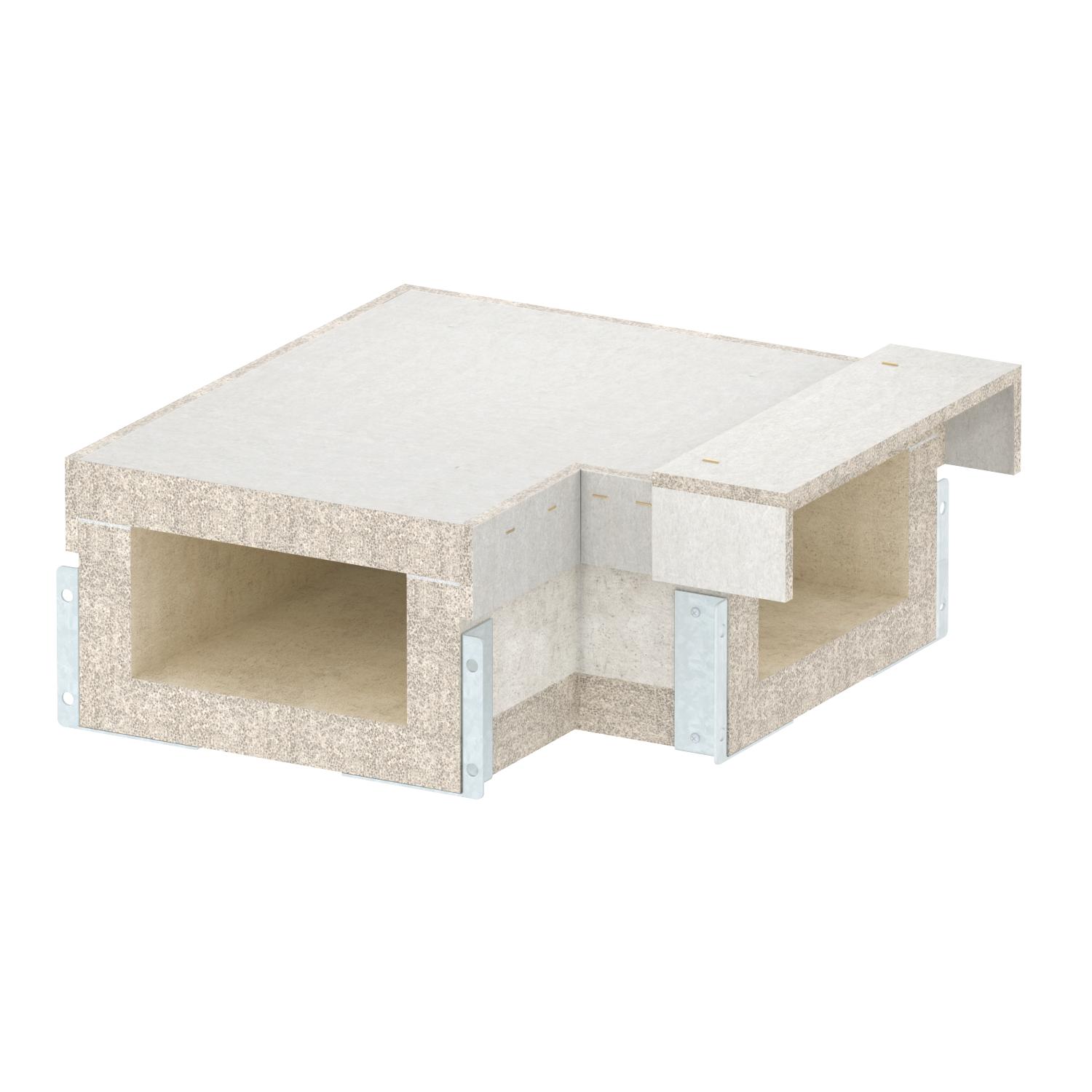

90° bend for PYROLINE® Con S BSKH09-K1021 fire protection duct
Item no. 7215616 | EAN 4012197308506
- Product description
-
Product description90° bend for PYROLINE® Con S fire protection duct, type BSKH09-K1021,consisting of fibreglass lightweight concrete which is resistant to water and frost for the creation of horizontal changes of direction of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Colour Grey Cover fastening Loose Dimension 105x210 Dimension b 210 mm Dimension B 338 mm Dimension H 195 mm Dimension h 105 mm Dimension L 440 mm Fire resistance class E − function maintenance 30 Fire resistance class I − installation duct 90 Height 195 mm Jacketing Without Length 464 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 Partitions possible yes Width 504 mm With perforation no - All types
- Downloads
-
Data sheet BSKH09-B1021 / 7215616 , 0.20MB , pdfSafety data sheet BSKH09-B1021 / 7215616 , 2.00MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
