T piece for PYROLINE® Con S BSKH09-K0506 fire protection duct
Item no. 7215633 | EAN 4012197308520
- Product description
-

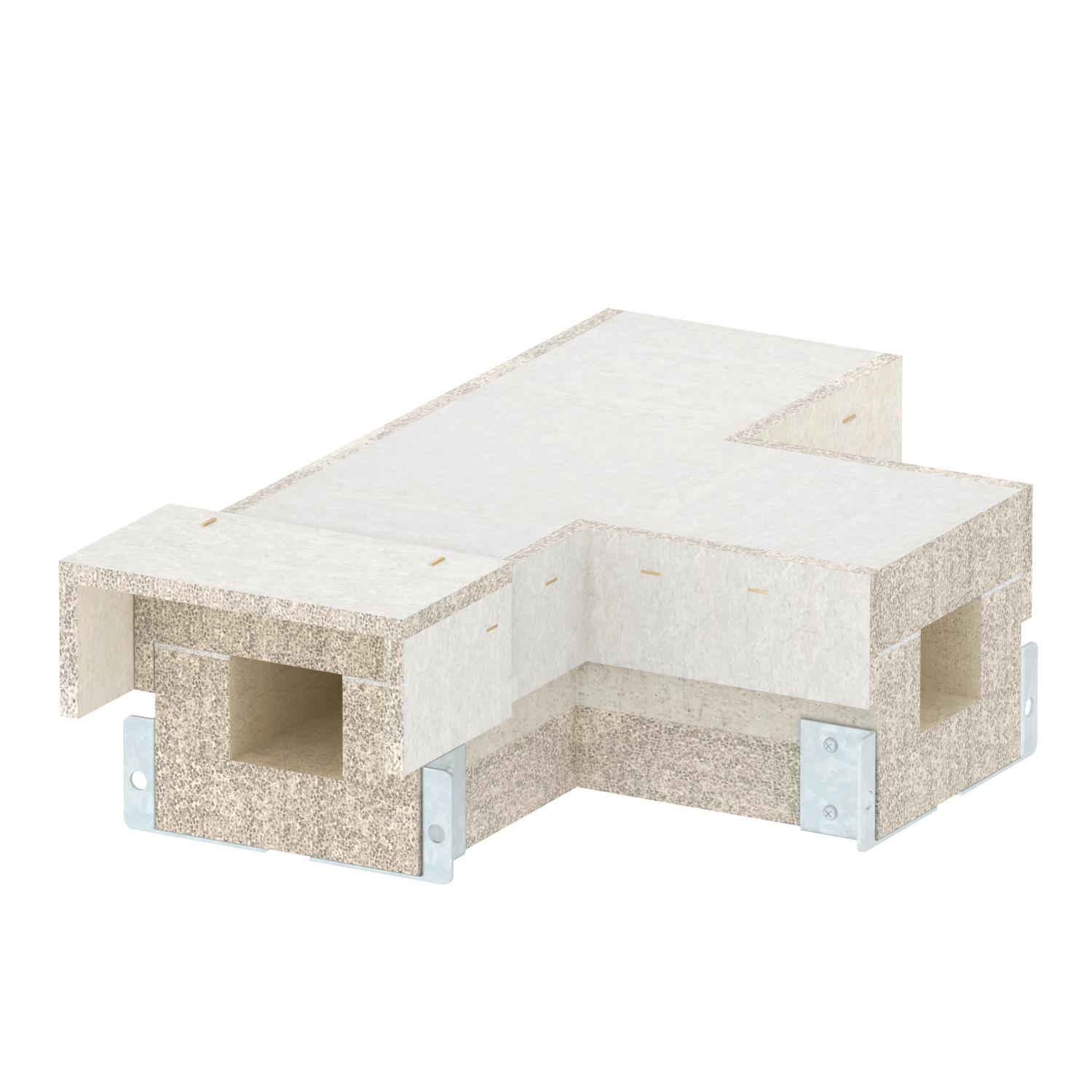

Product descriptionT piece for PYROLINE® Con S fire protection duct, type BSKH09-K0506, consisting of fibreglass lightweight concrete which is resistant to water and frost, for the creation of T branches of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

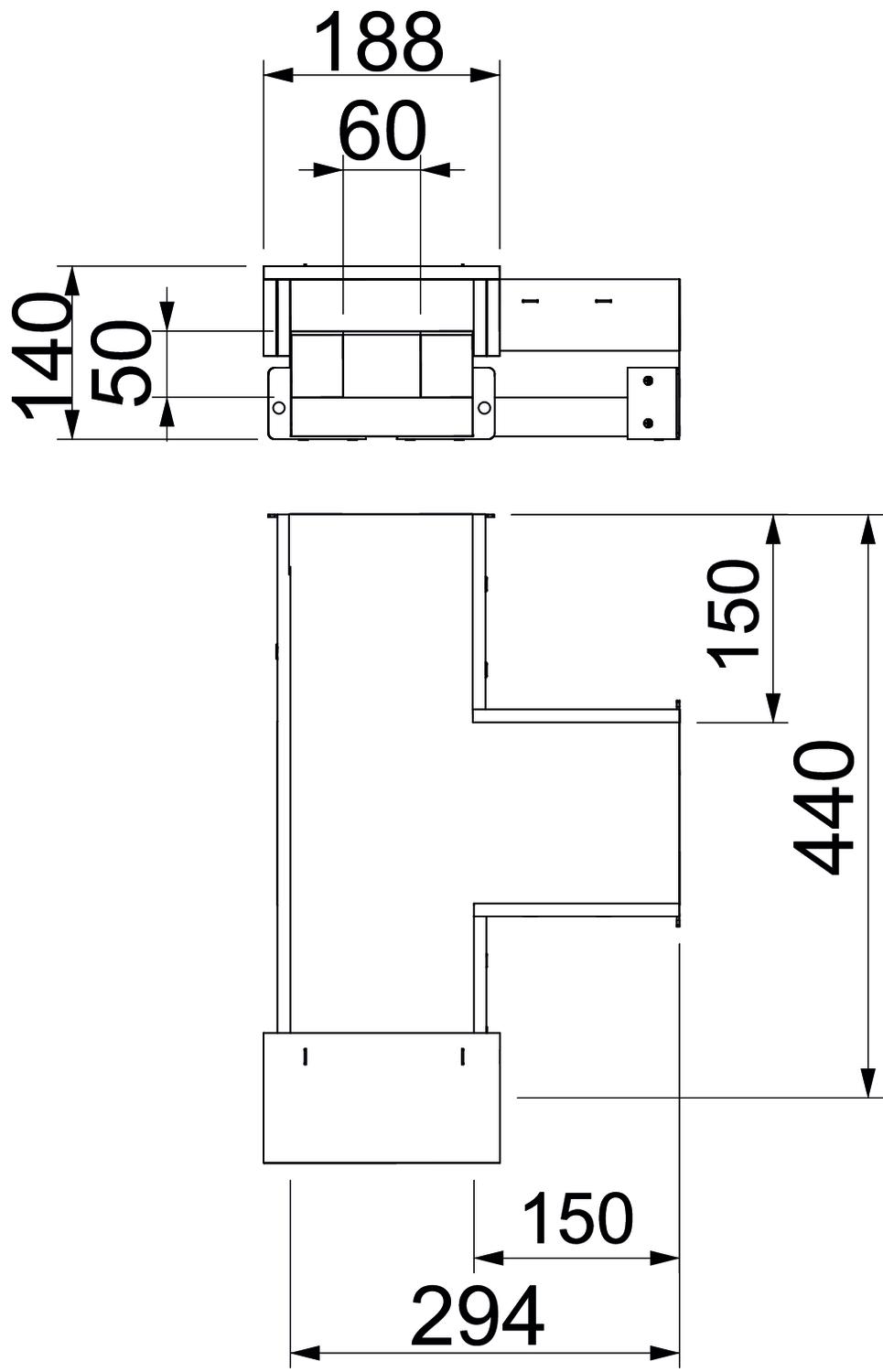

Colour Grey Dimension 50x60 Dimension b 60 mm Dimension B 188 mm Dimension H 140 mm Dimension h 50 mm Dimension l 294 mm Dimension L 440 mm Fire resistance class E − function maintenance 30 Fire resistance class I − installation duct 90 Height 140 mm Jacketing Without Length 490 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 Partitions possible yes Width 304 mm With perforation no - All types
- Downloads
-
Data sheet BSKH09-T0506 / 7215633 , 0.25MB , pdfSafety data sheet BSKH09-T0506 / 7215633 , 2.00MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
