End piece for PYROLINE® Con S BSKH09-K0506 fire protection duct
Item no. 7215591 | EAN 4012197308803
- Product description
-

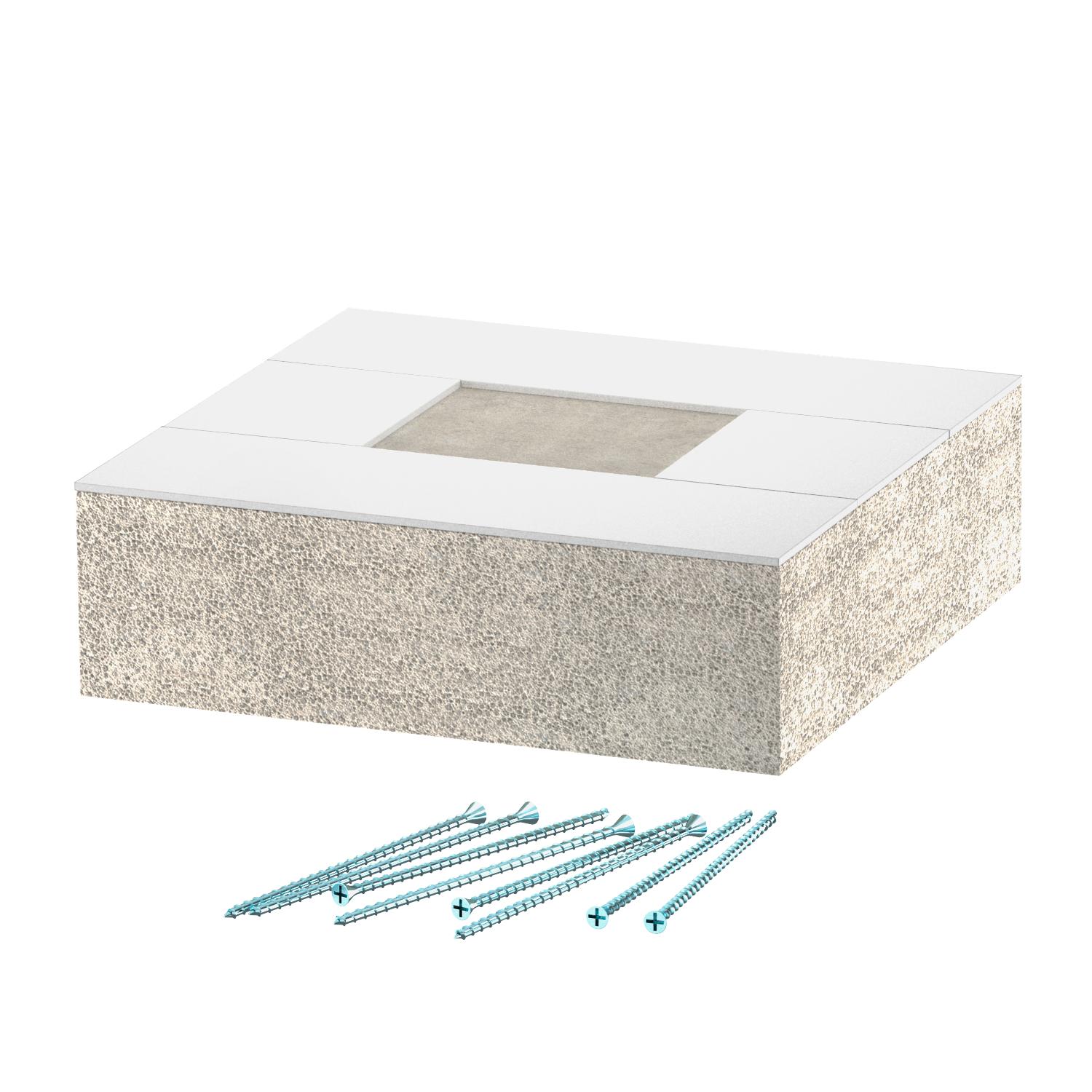

Product descriptionEnd piece for PYROLINE® Con S fire protection duct, type BSKH09-K0506, consisting of fibreglass lightweight concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and stuck-on sealing strip.
-
- Technical data
-
Technical data

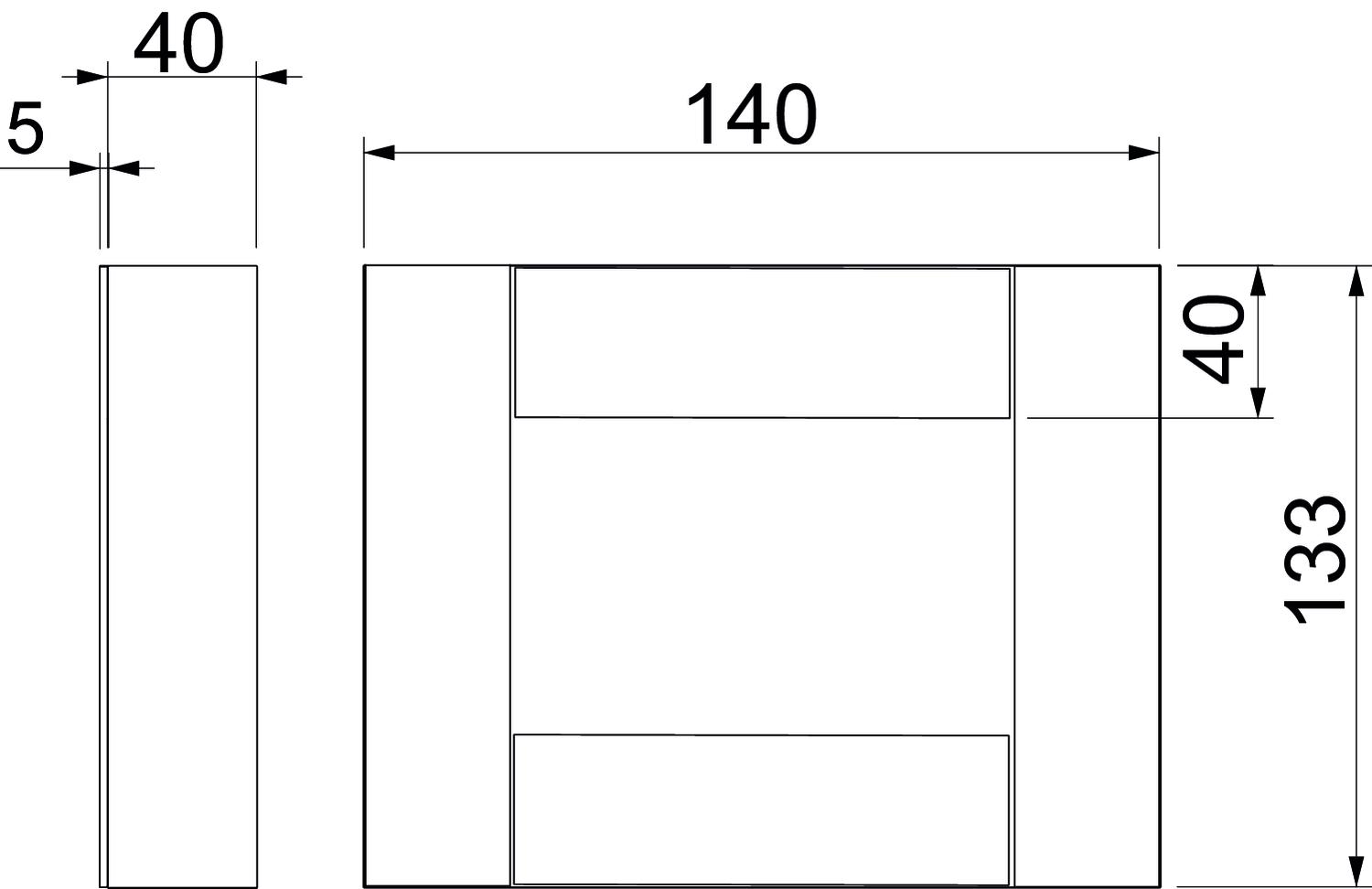

Colour Grey Dimension 50x60 Dimension A 40 mm Dimension B 140 mm Dimension H 133 mm Dimension L 40 mm Fire resistance class E − function maintenance 30 Fire resistance class I − installation duct 90 Height 133 mm Jacketing Without Length 40 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 Version for Left/right Width 140 mm - All types
- Downloads
-
Data sheet BSKH09-E0506 / 7215591 , 0.25MB , pdfSafety data sheet BSKH09-E0506 / 7215591 , 2.00MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
