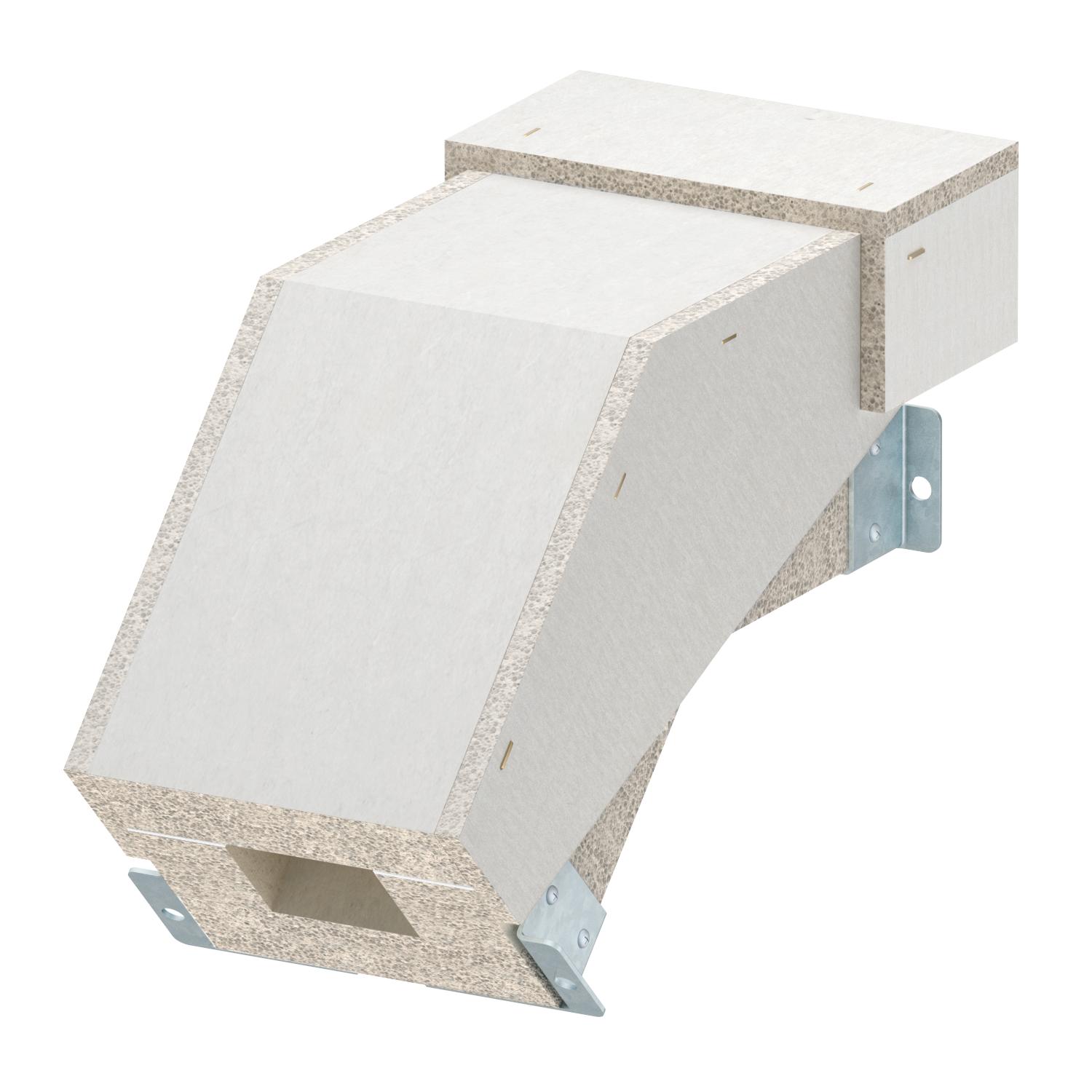

Falling vertical bend for PYROLINE® Con S BSKH09-K0506 fire protection duct
Item no. 7215660 | EAN 4012197308605
- Product description
-
Product descriptionFalling vertical bend for PYROLINE® Con S fire protection duct, type BSKH09-K0506, consisting of fibreglass lightweight concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

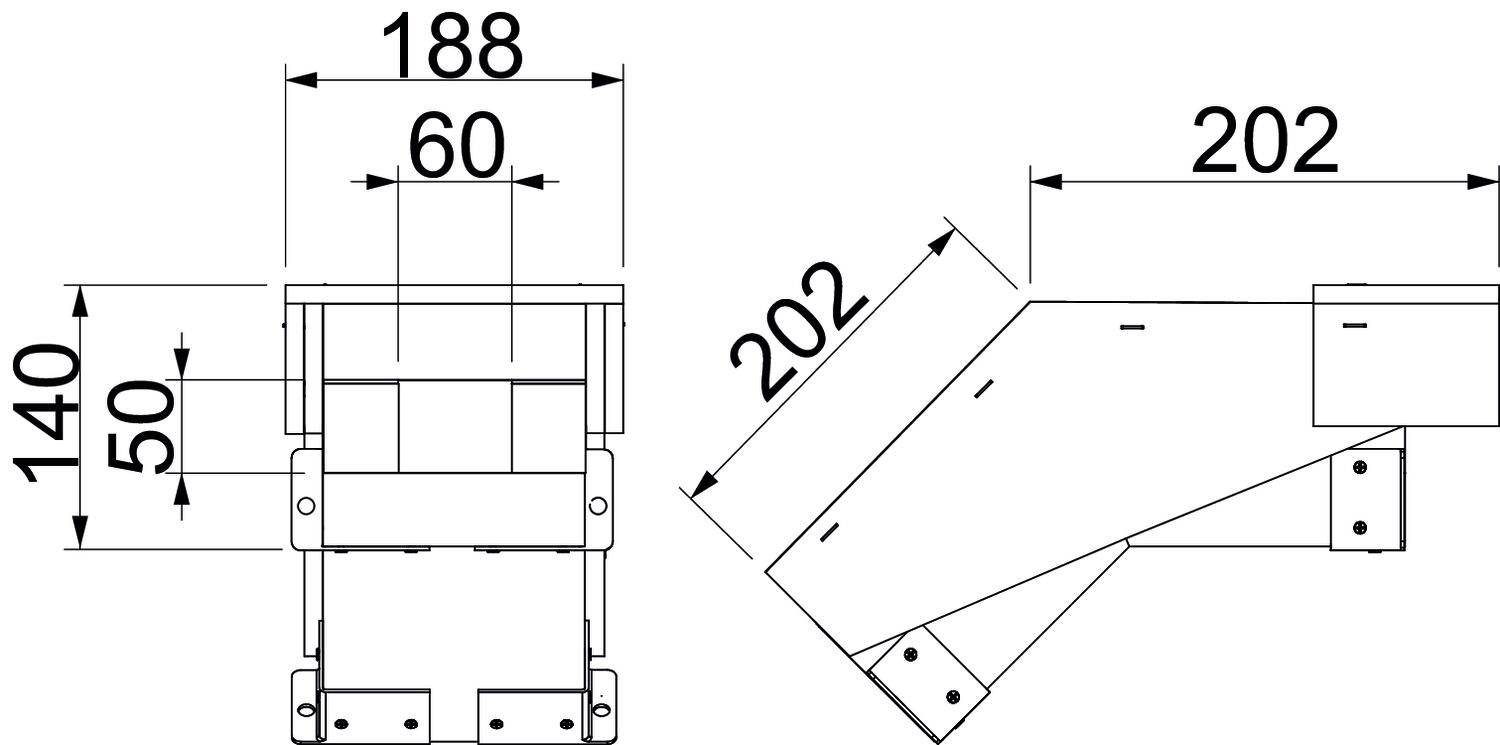

Angle of the bend 45 ° Colour Grey Cover fastening Loose Dimension 50x60 Dimension B 188 mm Dimension b 60 mm Dimension H 140 mm Dimension h 50 mm Dimension L 202 mm Fire resistance class E − function maintenance 30 Fire resistance class I − installation duct 90 Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 Partitions possible yes Width 188 mm With perforation no - All types
- Downloads
-
Data sheet BSKH09-VF0506 / 7215660 , 0.20MB , pdfSafety data sheet BSKH09-VF0506 / 7215660 , 2.00MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
