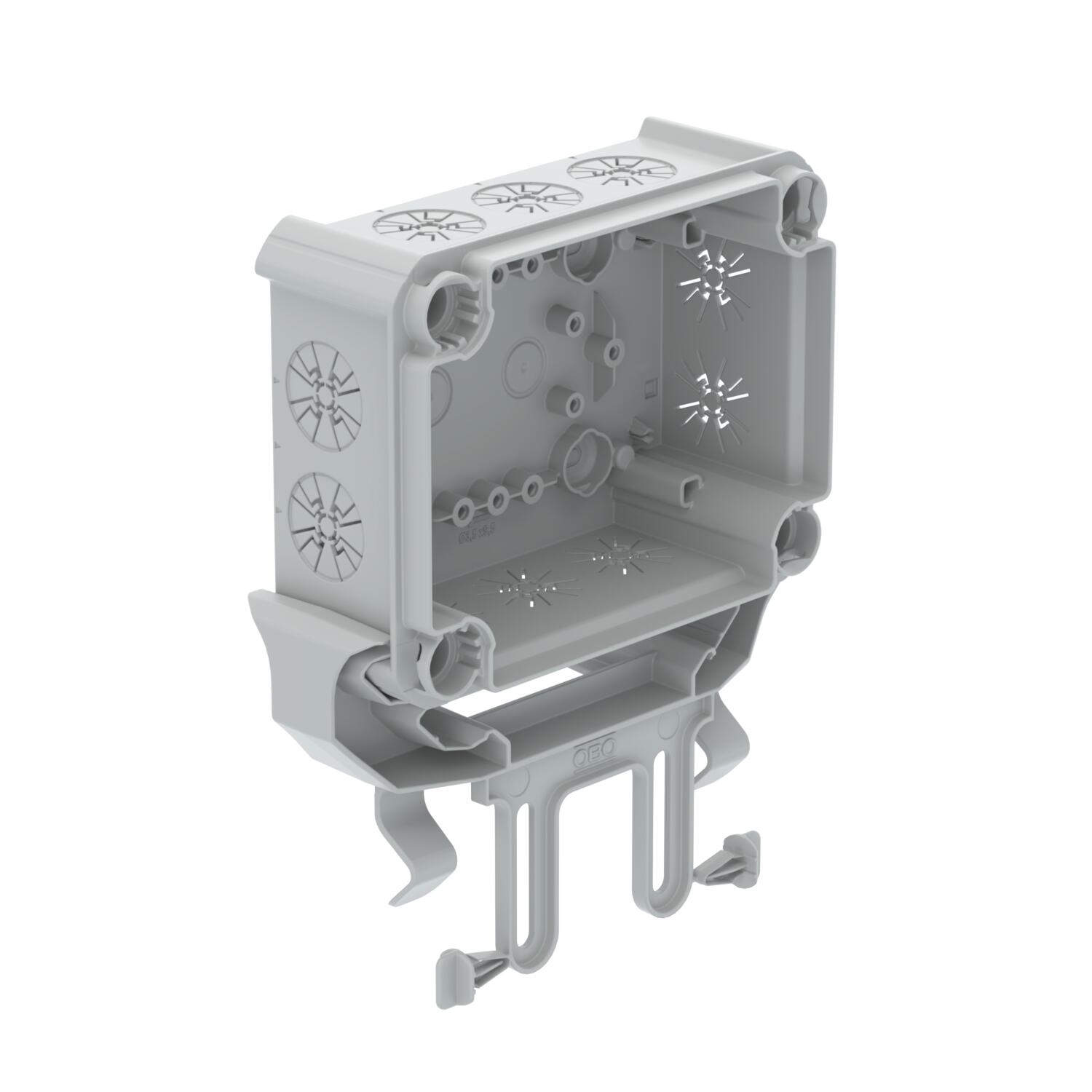

Lower part junction box, with fastening element | 10 | IP30 | Light grey; RAL 7035

Lower part junction box, with fastening element

Item no. 2006010 | EAN 4012197420895

Item no. / Types

No. of entries	10

Protection rating	IP30

Colour	Light grey; RAL 7035

Product description

Product description

Pluggable lower part of junction box with universal fastening element for mounting on cable trays Unequipped, without cover. Halogen-free material and UV-resistant. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection class IP30.

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover	Without
Cover fastening	Not applicable
Dimension	201x165x67
Entries	10
Entry from rear	yes
Equipment	Without
Explosion-tested version	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	67 mm
Junction box cover version	Without
Length	201 mm
Maintain electrical functions	Without
Material	Polypropylene

Measured insulation voltage Vi	500 V
Mounting type	Wall/ceiling mounting
No. of entries	10
Nominal cross-section, min.	10 mm²
Nominal voltage	500 V
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Sealable	no
Shape	Rectangular
Transparent lid	no
Type of entry	Cable
Type of housing penetration	Pre-marking
Weatherproof	no
Width	165 mm
with lid	no
With screening	yes

All types

All types

Types	No. of entries	Protection rating	Colour	Item no.
UT01+SB BE	10	IP30	Light grey; RAL 7035	2006010
UT01	10	IP30	Light grey; RAL 7035	2006024

Accessories

System accessories

Products	Types	Item no.
Separating element juncion box	SB TR	2006156
Pluggable cover, unequipped	D01 L	2006040
Pluggable cover, equipped, OBO GST18	D01 2x3p WD	2006042
Pluggable cover, equipped, OBO GST18	D01 2x3p WD(1+1)	2006044
Pluggable cover, equipped, OBO GST18	D01 3x3p WD	2006046
Pluggable cover, equipped, OBO GST18	D01 4x3p WD	2006048
Pluggable cover, equipped, OBO GST18	D01 4x3p WD(2+2)	2006050
Pluggable cover, equipped, OBO GST18	D01 6x3p WD	2006058
Pluggable cover, equipped, OBO GST18	D01 6x3p WD(4+2)	2006060
Pluggable cover, unequipped	D02 L	2006080
Pluggable cover, equipped, OBO GST18	D02 3x3p+1x4p WD	2006082
Pluggable cover, equipped, OBO GST18	D02 2x4p WD	2006084
Pluggable cover, equipped, OBO GST18	D02 2x5p WD	2006086
Pluggable cover, equipped, OBO GST18	D02 4x5p WD	2006088
Pluggable cover, equipped, OBO GST18	D02 4x5p DALI WD	2006094
Pluggable cover, equipped, OBO WINSTA MIDI	D02 2x5p DALI WG	2006096
Pluggable cover, equipped, OBO GST18	D02 3x5p DALI WD	2006098
Pluggable cover, equipped, Modul 45	D03 2MSD WS	2006116
Junction box T100, 2 Modul 45 sockets in cover, 1-pin	T 100 2MSD WS	2007821
Junction box T100, 4 Modul 45 sockets in cover, 2-pin	T 100 4MSD WS	2007825
Pluggable cover, unequipped	D04 L	2006130
DATA module, pluggable cover	SB DT1	2006180
DATA module, pluggable cover	SB DT2	2006182
DATA module, pluggable cover	SB DT3	2006184
DATA module, pluggable cover	SB DT4	2006186
DATA module, pluggable cover	SB DT5	2006188
T 100 junction box, with strain relief entries IP 31	T 100 ZE IP30	2007805
Fastening element for junction boxes	SB BE	2006150
