DATA module, pluggable cover

Item no. 2006186 | EAN 4012197420093

Item no. / Types

Mounting opening

Product description

Product description

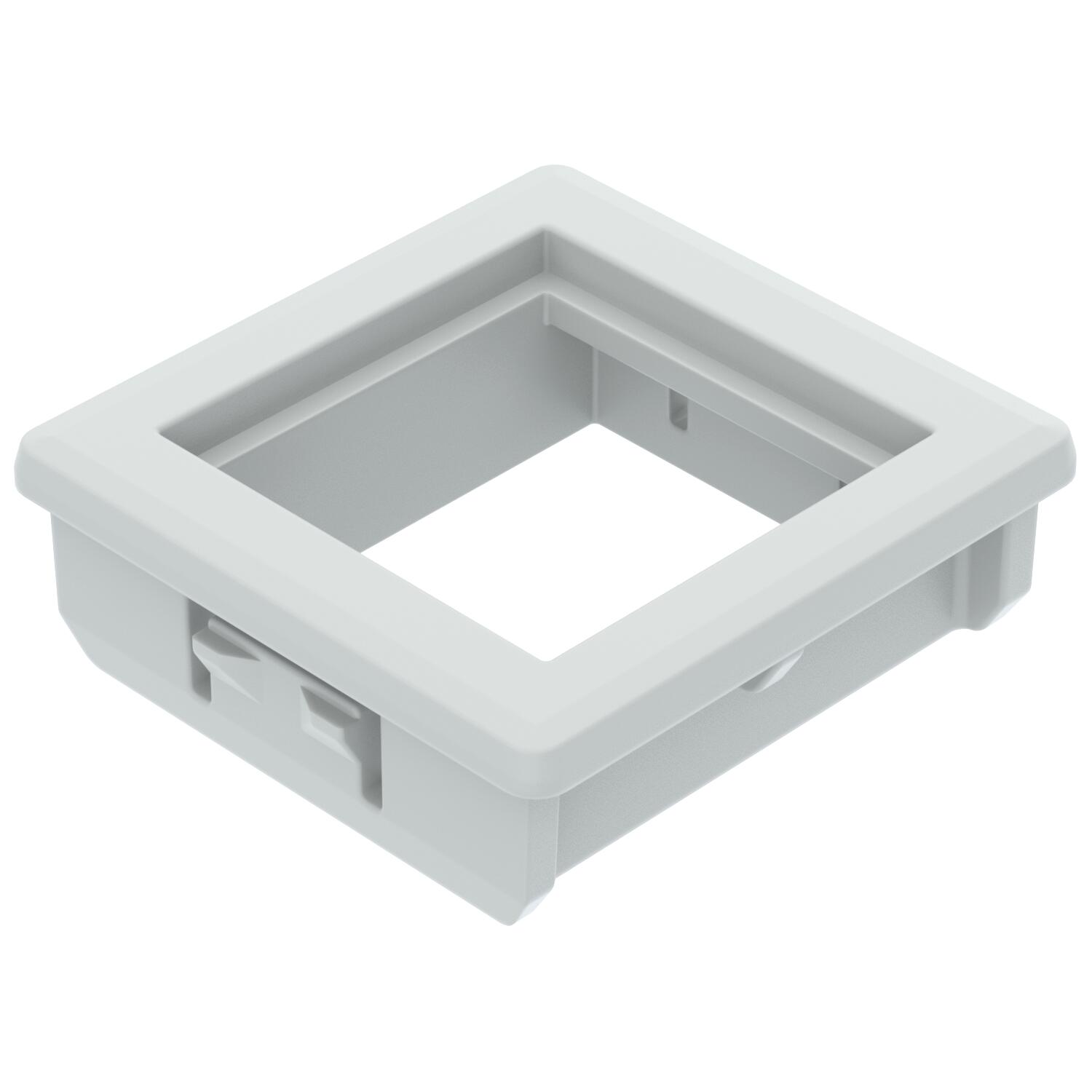

Data module as an adapter of a Wieland BST14 Snap-in connectors for clicking into pluggable cover D04 L.

Technical data

Technical data

Antibacterial treatment	no
Colour	Light grey; RAL 7035
Combination	Miscellaneous
Depth	10 mm

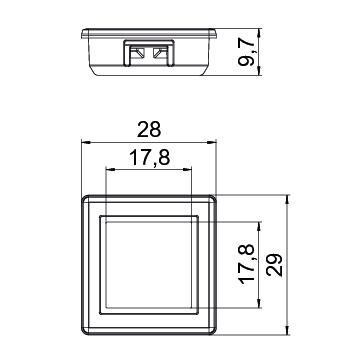

Dimension	29x28x10
Fastening type	Lock
Halogen-free	yes
Height	29 mm
Hinged cover	no
Labelling panel	Without labelling panel
Lamp-wire connector	no
Lighting	no
Material	Polycarbonate

Mounting opening	Type W
Mounting type	Miscellaneous
Outlet direction	Straight
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Installable data connector
Width	28 mm
With dust protection	no
With printed label	no
With sockets/couplings	no

All types

All types

Types	Mounting opening	Item no.
SB DT1	Type A	2006180
SB DT2	Type B	2006182
SB DT3	Type C	2006184
SB DT4	Type W	2006186
SB DT5	Type RM	2006188

Accessories

System accessories

Products	Types	Item no.
Pluggable cover, unequipped	D04 L	2006130
DATA module, pluggable cover	SB DT1	2006180
DATA module, pluggable cover	SB DT2	2006182
DATA module, pluggable cover	SB DT3	2006184
DATA module, pluggable cover	SB DT5	2006188
Lower part junction box, with fastening element	UT01+SB BE	2006010
T 100 junction box, with strain relief entries IP 31	T 100 ZE IP30	2007805
Fastening element for junction boxes	SB BE	2006150
Separating element juncion box	SB TR	2006156
Pluggable cover, unequipped	D01 L	2006040
Pluggable cover, equipped, OBO GST18	D01 2x3p WD	2006042
Pluggable cover, equipped, OBO GST18	D01 2x3p WD(1+1)	2006044
Pluggable cover, equipped, OBO GST18	D01 3x3p WD	2006046
Pluggable cover, equipped, OBO GST18	D01 4x3p WD	2006048
Pluggable cover, equipped, OBO GST18	D01 4x3p WD(2+2)	2006050
Pluggable cover, equipped, OBO GST18	D01 6x3p WD	2006058
Pluggable cover, equipped, OBO GST18	D01 6x3p WD(4+2)	2006060
Pluggable cover, unequipped	D02 L	2006080
Pluggable cover, equipped, OBO GST18	D02 3x3p+1x4p WD	2006082
Pluggable cover, equipped, OBO GST18	D02 2x4p WD	2006084
Pluggable cover, equipped, OBO GST18	D02 2x5p WD	2006086
Pluggable cover, equipped, OBO GST18	D02 4x5p WD	2006088
Pluggable cover, equipped, OBO GST18	D02 4x5p DALI WD	2006094
Pluggable cover, equipped, OBO WINSTA MIDI	D02 2x5p DALI WG	2006096
Pluggable cover, equipped, OBO GST18	D02 3x5p DALI WD	2006098
Pluggable cover, equipped, Modul 45	D03 2MSD WS	2006116
Junction box T100, 2 Modul 45 sockets in cover, 1-pin	T 100 2MSD WS	2007821
Junction box T100, 4 Modul 45 sockets in cover, 2-pin	T 100 4MSD WS	2007825
