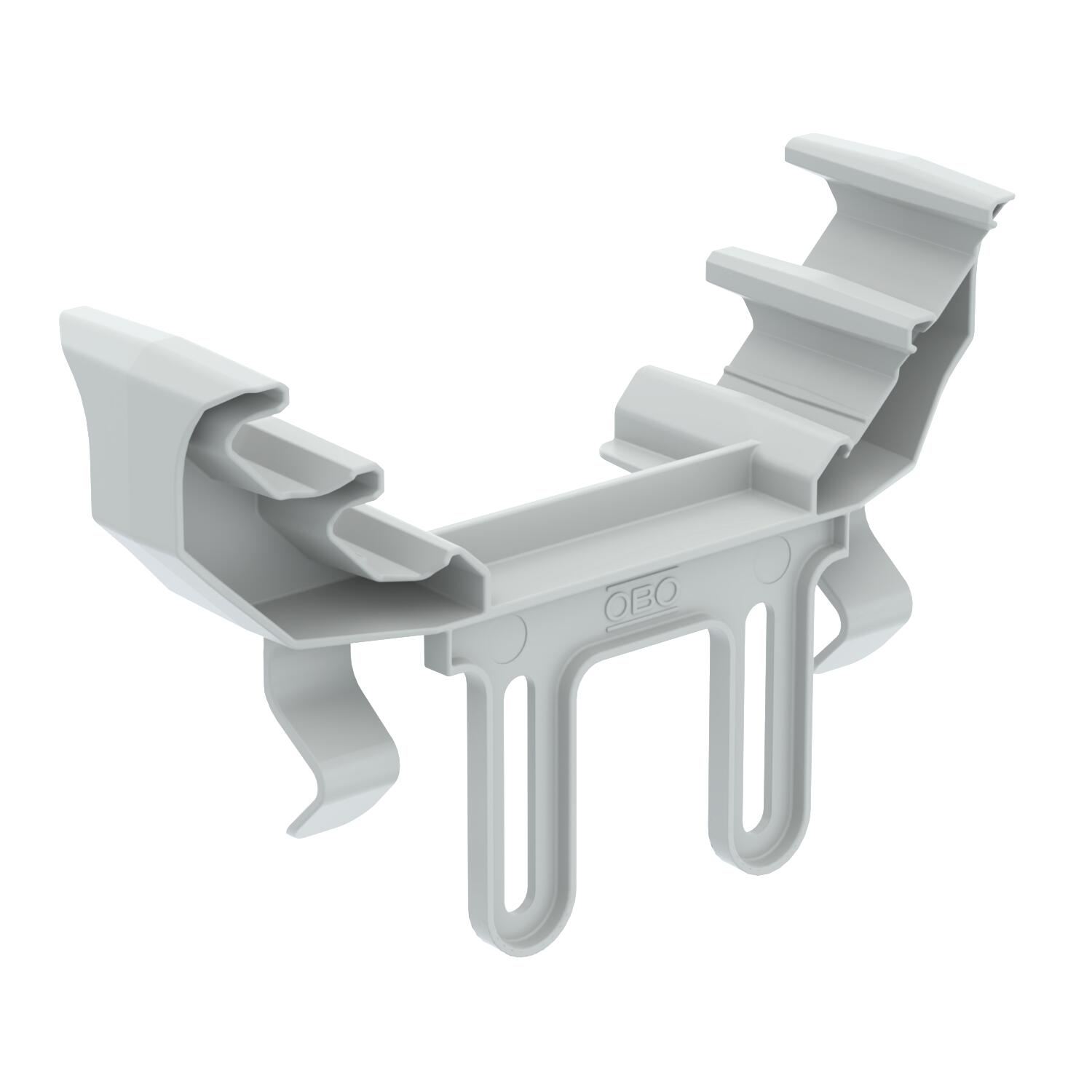

Fastening element for junction boxes

Item no. 2006150 | EAN 4012197419899

2006150 / SB BE
163 mm
49 mm
Product description
Product description
Fastening element for junction boxes (T60 and T100), for mounting on cable trays without tools. Junction boxes, can be mounted on both sides horizontally or vertically

  • Halogen-free; without chlorine, fluorine and bromine
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
Technical data

Technical data

Accessories yes
Colour Light grey; RAL 7035

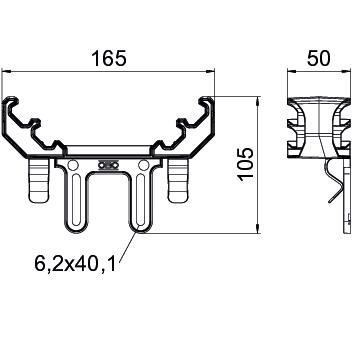

Dimension 165x163x49
Fastening type Clamp fastening
Halogen-free yes
Height 49 mm
Length 165 mm
Material Polypropylene
Rustproof steel, pickled no
Spare part no
Type of accessory Miscellaneous
Version for Horizontal and vertical
Width 163 mm
All types

All types

Types Width Height Item no.
SB BE 163 mm 49 mm 2006150
Accessories

System accessories

Products Types Item no.

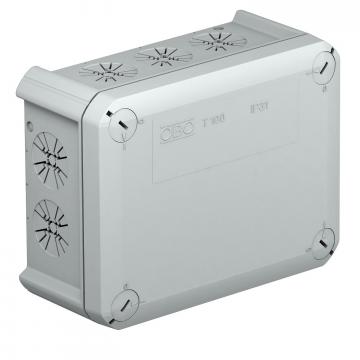

T 100 junction box, with strain relief entries IP 31 T 100 junction box, with strain relief entries IP 31 T 100 ZE IP30 2007805

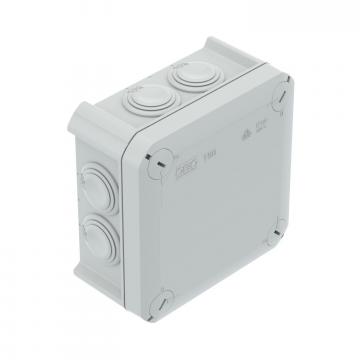

Junction box T 60, plug-in seal Junction box T 60, plug-in seal T 60 2007061

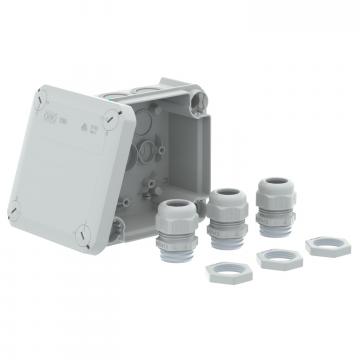

Junction box T60, with knock-out entries and 3 x V-TEC VM20 + locknuts Junction box T60, with knock-out entries and 3 x V-TEC VM20 + locknuts T 60 M20 NL 2007918
T60 junction box, with plug-in seals and 3x V-TEC VM25 + locknuts T60 junction box, with plug-in seals and 3x V-TEC VM25 + locknuts T 60 M25 NL 2007922

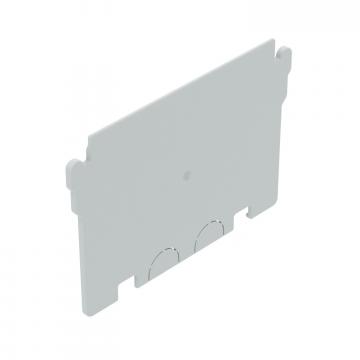

Separating element juncion box Separating element juncion box SB TR 2006156

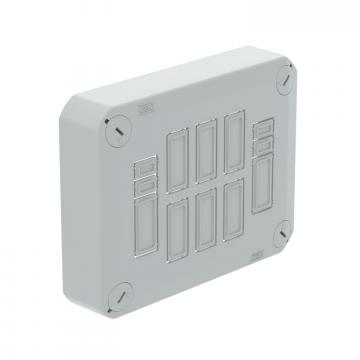

Pluggable cover, unequipped Pluggable cover, unequipped D01 L 2006040

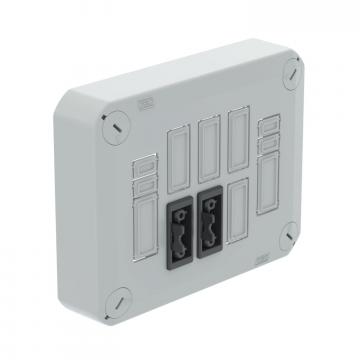

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 2x3p WD 2006042

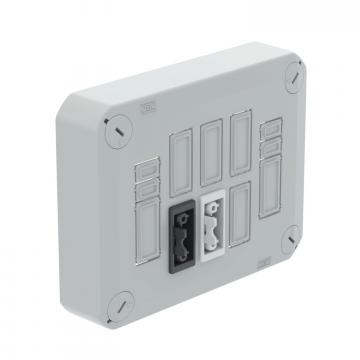

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 2x3p WD(1+1) 2006044

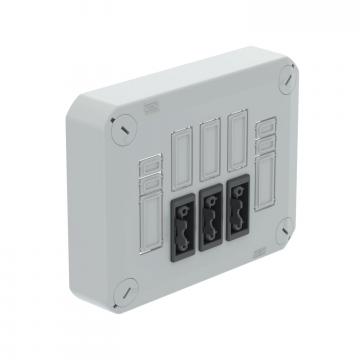

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 3x3p WD 2006046

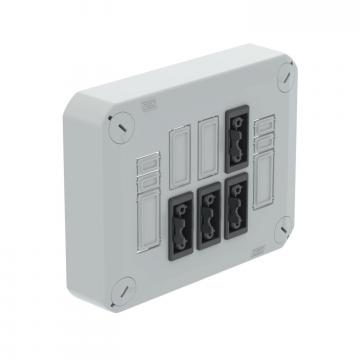

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 4x3p WD 2006048

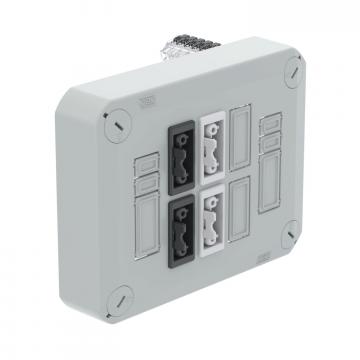

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 4x3p WD(2+2) 2006050

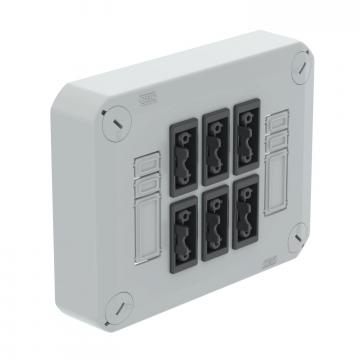

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 6x3p WD 2006058

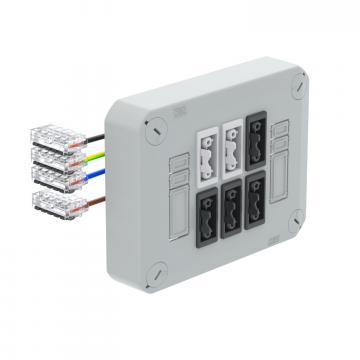

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D01 6x3p WD(4+2) 2006060

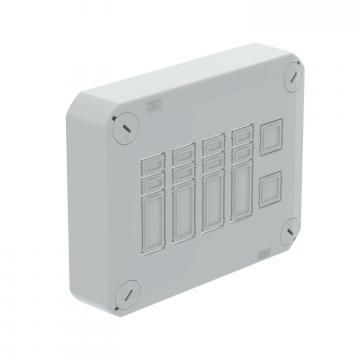

Pluggable cover, unequipped Pluggable cover, unequipped D02 L 2006080

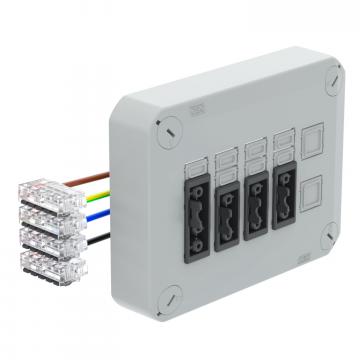

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 3x3p+1x4p WD 2006082

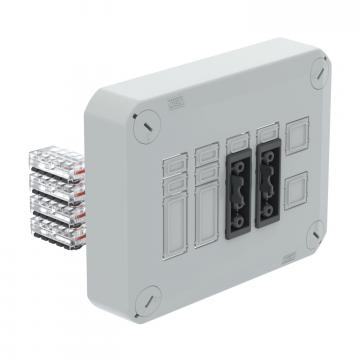

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 2x4p WD 2006084

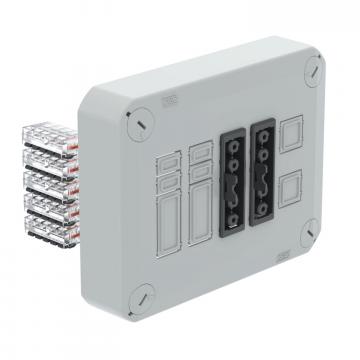

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 2x5p WD 2006086

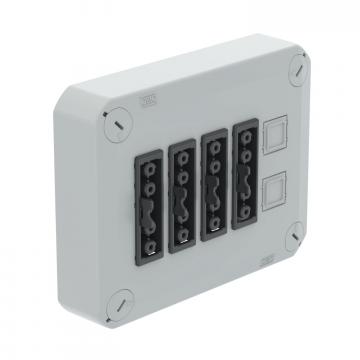

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 4x5p WD 2006088

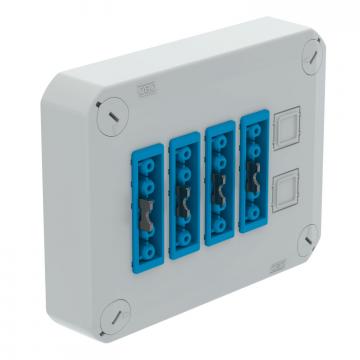

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 4x5p DALI WD 2006094

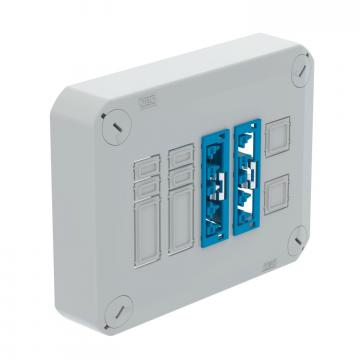

Pluggable cover, equipped, OBO WINSTA MIDI Pluggable cover, equipped, OBO WINSTA MIDI D02 2x5p DALI WG 2006096

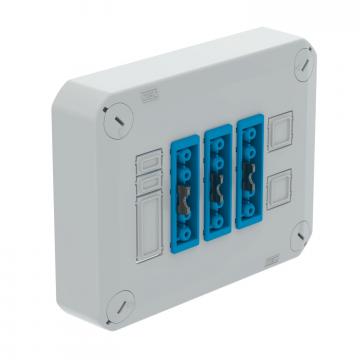

Pluggable cover, equipped, OBO GST18 Pluggable cover, equipped, OBO GST18 D02 3x5p DALI WD 2006098

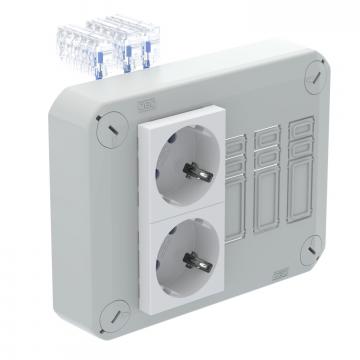

Pluggable cover, equipped, Modul 45 Pluggable cover, equipped, Modul 45 D03 2MSD WS 2006116

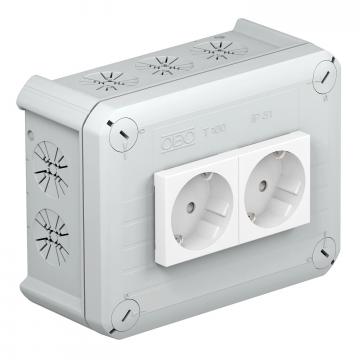

Junction box T100, 2 Modul 45 sockets in cover, 1-pin Junction box T100, 2 Modul 45 sockets in cover, 1-pin T 100 2MSD WS 2007821

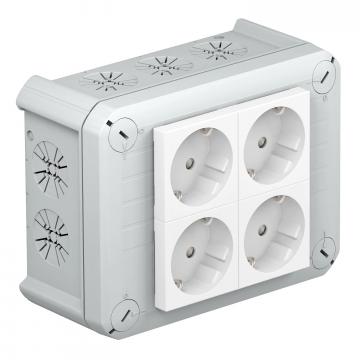

Junction box T100, 4 Modul 45 sockets in cover, 2-pin Junction box T100, 4 Modul 45 sockets in cover, 2-pin T 100 4MSD WS 2007825

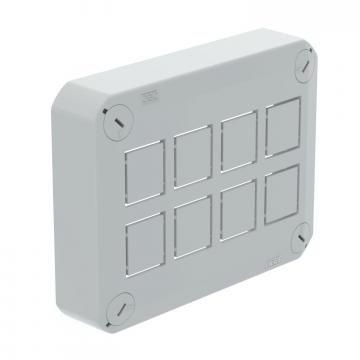

Pluggable cover, unequipped Pluggable cover, unequipped D04 L 2006130

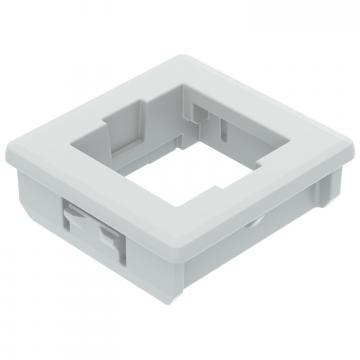

DATA module, pluggable cover DATA module, pluggable cover SB DT1 2006180

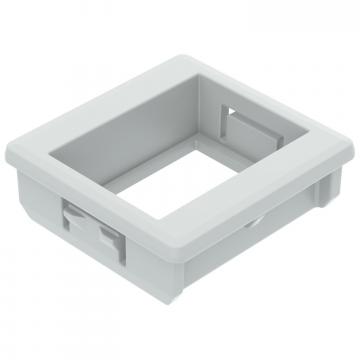

DATA module, pluggable cover DATA module, pluggable cover SB DT2 2006182

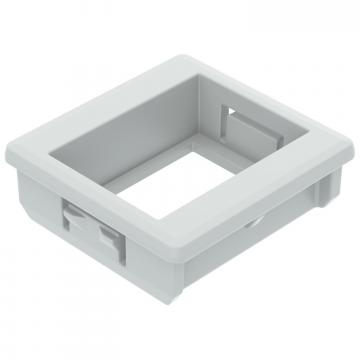

DATA module, pluggable cover DATA module, pluggable cover SB DT3 2006184

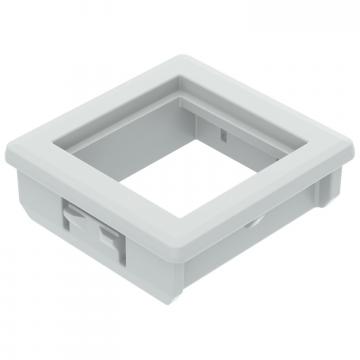

DATA module, pluggable cover DATA module, pluggable cover SB DT4 2006186

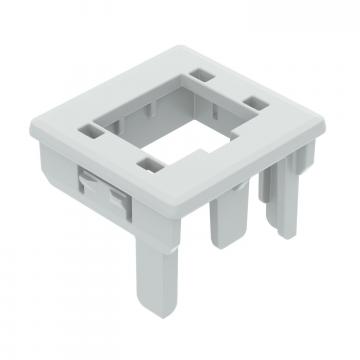

DATA module, pluggable cover DATA module, pluggable cover SB DT5 2006188

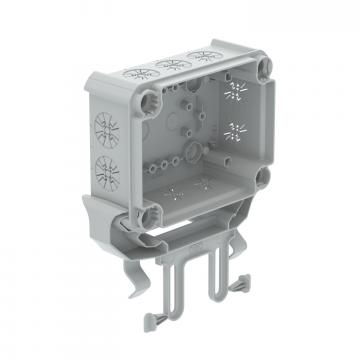

Lower part junction box, with fastening element Lower part junction box, with fastening element UT01+SB BE 2006010
