Junction box T100, 2 Modul 45 sockets in cover, 1-pin 136x102x57 | 10 | IP30 | Light grey; RAL 7035

Junction box T100, 2 Modul 45 sockets in cover, 1-pin

Item no. 2007821 | EAN 4012195615880

Item no. / Types	2007821 / T 100 2MSD WS

Clear internal dimensions	136x102x57 mm

No. of entries	10

Protection rating	IP30

Colour	Light grey; RAL 7035

Product description

Product description

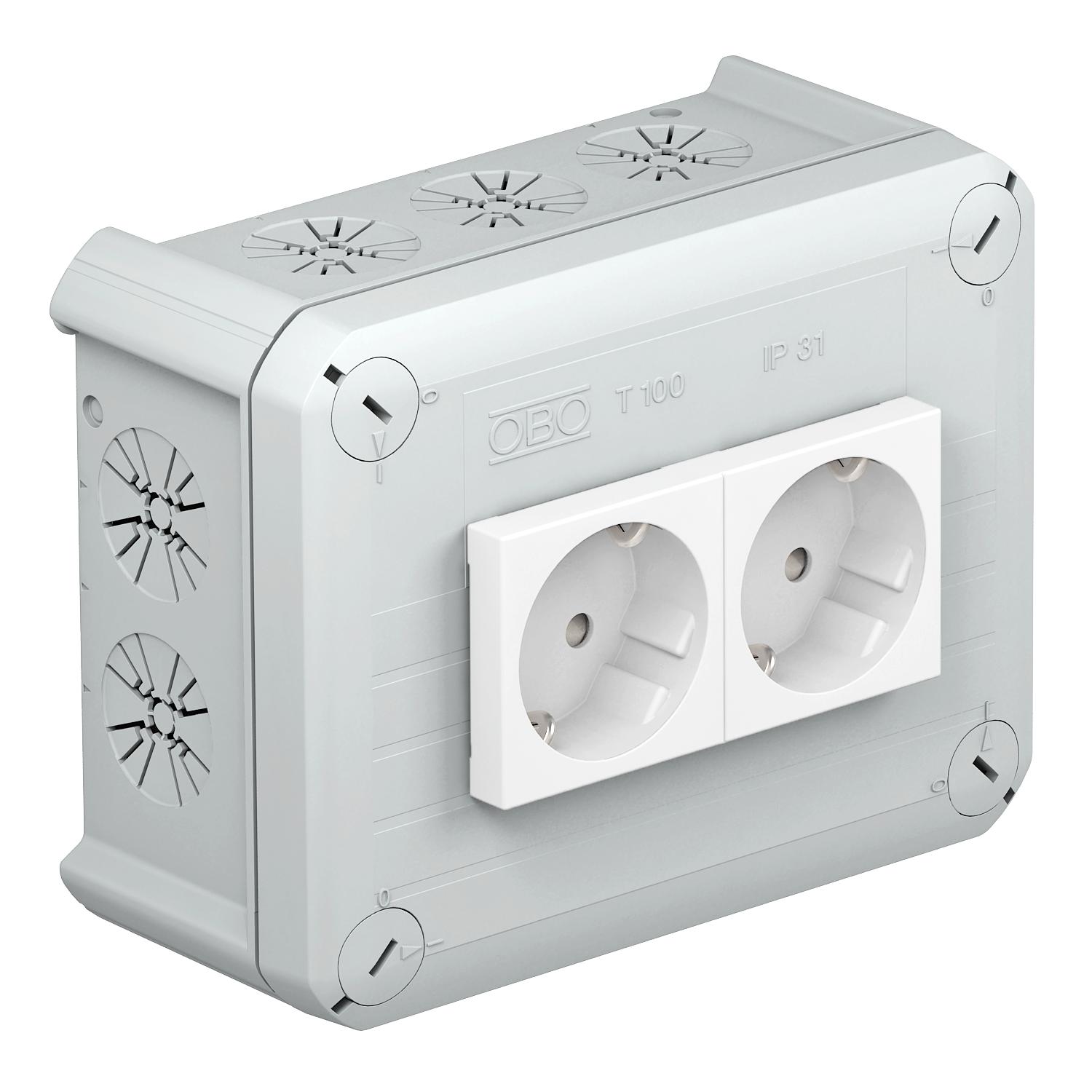

Junction box for the connection of cables indoors and in protected outdoor areas. Rectangular design with knock-out entries to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable with retainer and 2 Modul 45 sockets. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C.
Clear internal dimensions: 136x102x57 mm

Technical data

Dimensions

Clear internal dimensions	136x102x57 mm
CO2 Footprint (GWP) Cradle-to-Gate	1,1464 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035
Cover	Not transparent
Cover fastening	Screwed

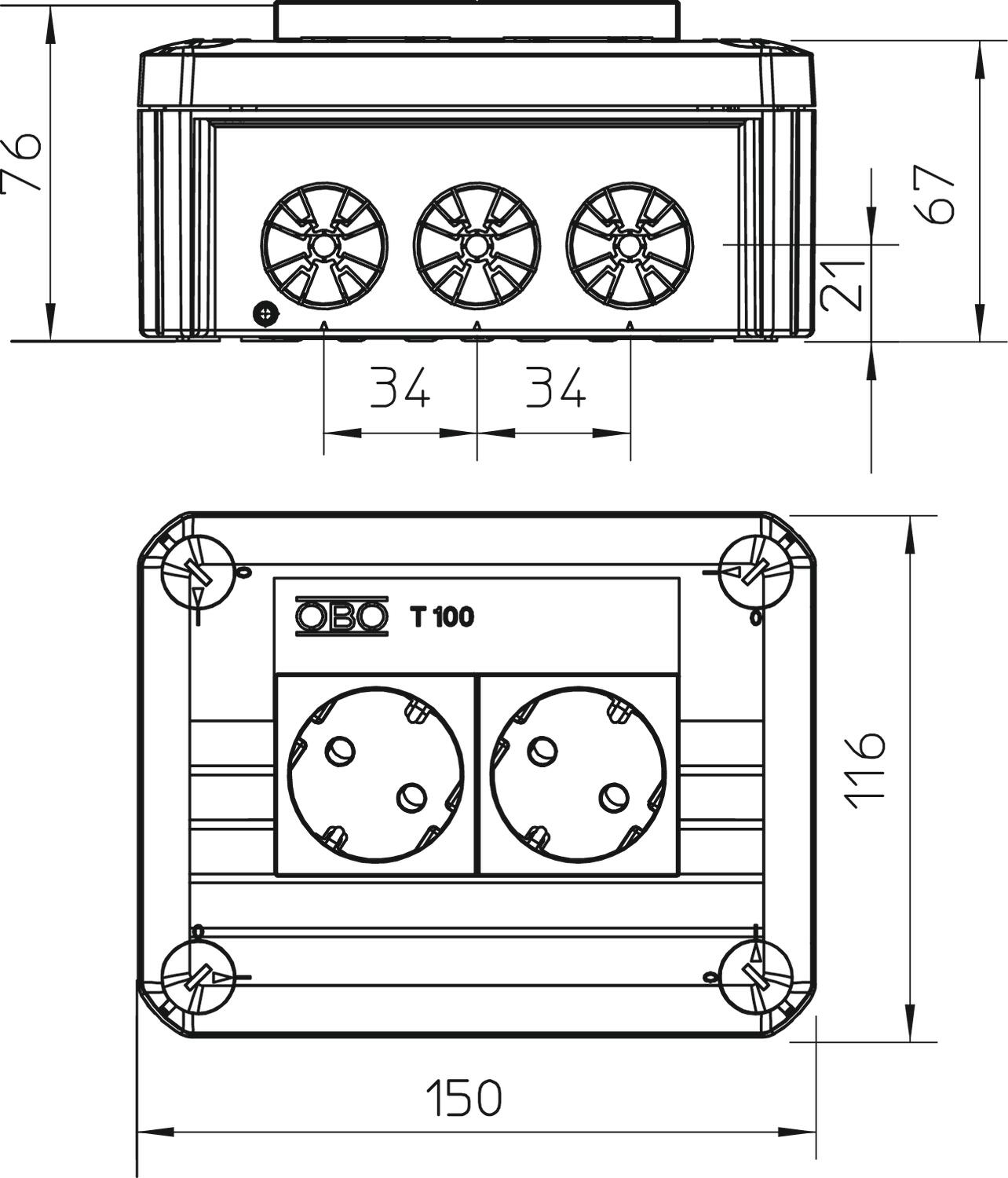

Dimension	150x116x67
Entries	10
Entry from rear	yes
Equipment	Miscellaneous
Expandable	yes
Explosion-tested version	no
Flame-resistant	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	67 mm
Length	150 mm
Maintain electrical functions	Without

Material	Polypropylene
Measured insulation voltage Vi	500 V
No. of entries	10
Nominal cross-section, min.	2,5 mm²
Nominal voltage	500 V
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Sealable	yes
Shape	Rectangular
Transparent lid	no
Type of entry	Cable
Type of housing penetration	Pre-marking
Type of insertion	Strain relief entries for direct penetration
Weatherproof	no
Width	116 mm
with lid	yes
With screening	no

All types

All types

Types	Clear internal dimensions	No. of entries	Protection rating	Colour	Item no.
T 100 2MSD WS	136x102x57 mm	10	IP30	Light grey; RAL 7035	2007821

Accessories

System accessories

Products	Types	Item no.
Fastening element for junction boxes	SB BE	2006150
Pluggable cover, unequipped	D01 L	2006040
Pluggable cover, equipped, OBO GST18	D01 2x3p WD	2006042
Pluggable cover, equipped, OBO GST18	D01 2x3p WD(1+1)	2006044
Pluggable cover, equipped, OBO GST18	D01 3x3p WD	2006046
Pluggable cover, equipped, OBO GST18	D01 4x3p WD	2006048
Pluggable cover, equipped, OBO GST18	D01 4x3p WD(2+2)	2006050
Pluggable cover, equipped, OBO GST18	D01 6x3p WD	2006058
Pluggable cover, equipped, OBO GST18	D01 6x3p WD(4+2)	2006060
Pluggable cover, unequipped	D02 L	2006080
Pluggable cover, equipped, OBO GST18	D02 3x3p+1x4p WD	2006082
Pluggable cover, equipped, OBO GST18	D02 2x4p WD	2006084
Pluggable cover, equipped, OBO GST18	D02 2x5p WD	2006086
Pluggable cover, equipped, OBO GST18	D02 4x5p WD	2006088
Pluggable cover, equipped, OBO GST18	D02 4x5p DALI WD	2006094
Pluggable cover, equipped, OBO WINSTA MIDI	D02 2x5p DALI WG	2006096
Pluggable cover, equipped, OBO GST18	D02 3x5p DALI WD	2006098
Pluggable cover, equipped, Modul 45	D03 2MSD WS	2006116
Junction box T100, 4 Modul 45 sockets in cover, 2-pin	T 100 4MSD WS	2007825
Pluggable cover, unequipped	D04 L	2006130
DATA module, pluggable cover	SB DT1	2006180
DATA module, pluggable cover	SB DT2	2006182
DATA module, pluggable cover	SB DT3	2006184
DATA module, pluggable cover	SB DT4	2006186
DATA module, pluggable cover	SB DT5	2006188
Lower part junction box, with fastening element	UT01+SB BE	2006010
T 100 junction box, with strain relief entries IP 31	T 100 ZE IP30	2007805
Separating element juncion box	SB TR	2006156
