Lower part junction box, with fastening element | 10 | IP30 | Light grey; RAL 7035

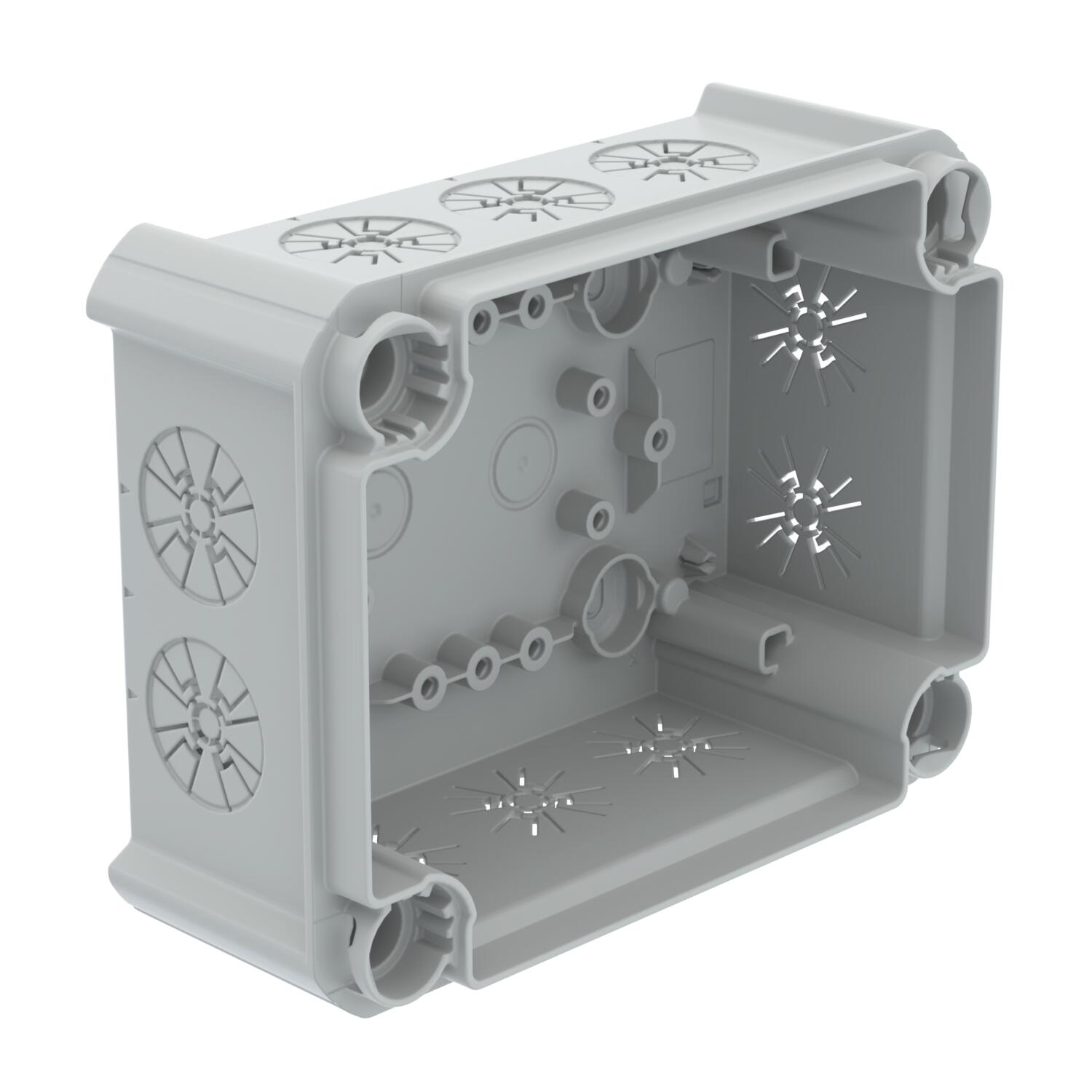

Lower part junction box, with fastening element

Item no. 2006024 | EAN 4012197462819

Item no. / Types

No. of entries	10

Protection rating	IP30

Colour	Light grey; RAL 7035

Product description

Product description

Pluggable lower part of junction box with universal fastening element for mounting on cable trays Unequipped, without cover. Halogen-free material and UV-resistant. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover	Not transparent
Cover fastening	Screwed

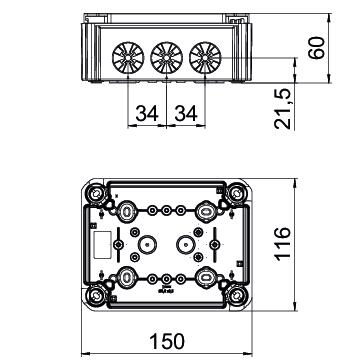

Dimension	150x116x62
Entries	10
Entry from rear	yes
Equipment	Without
Expandable	yes
Explosion-tested version	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
for pipe diameter	16/19 mm
Halogen-free	yes
Height	62 mm
Length	150 mm
Maintain electrical functions	Without

Material	Polypropylene
Max. Conductor cross-section	10 mm²
Measured insulation voltage Vi	500 V
Mounting type	Wall/ceiling mounting
No. of entries	10
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Sealable	yes
Shape	Rectangular
Transparent lid	no
Type of entry	Cable/pipe
Type of housing penetration	Pre-marking
Weatherproof	no
Width	116 mm
with lid	no
With screening	no
