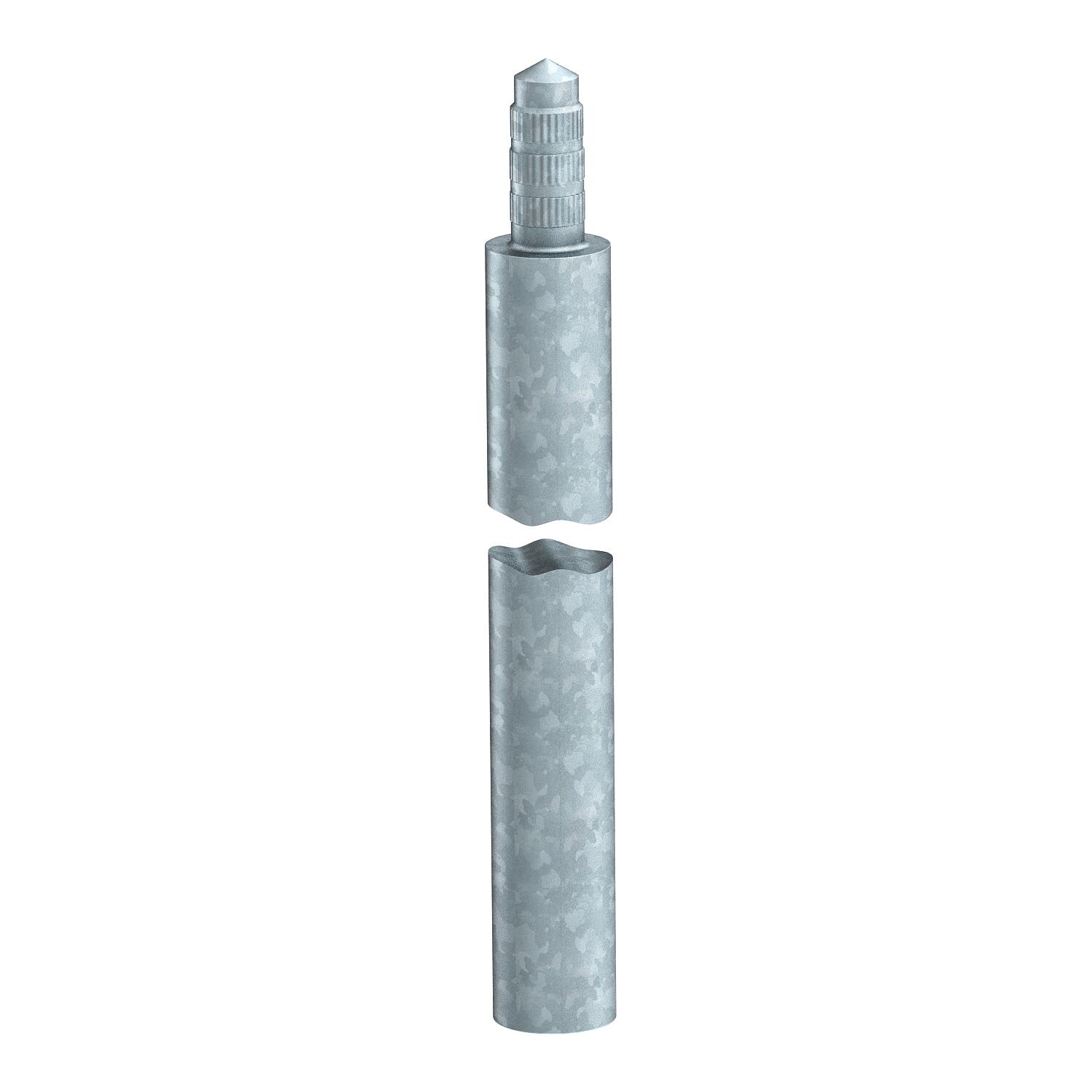

Earth rod for standard applications
Item no. 5000769 | EAN 4012195111047
- Product description
-
Product description• High corrosion resistance
• Zinc support approx. 130 µm
• With peg and bore for linking together
• Round pegs with three knurls
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 12.3 kA
-
- Technical data
-
Technical data

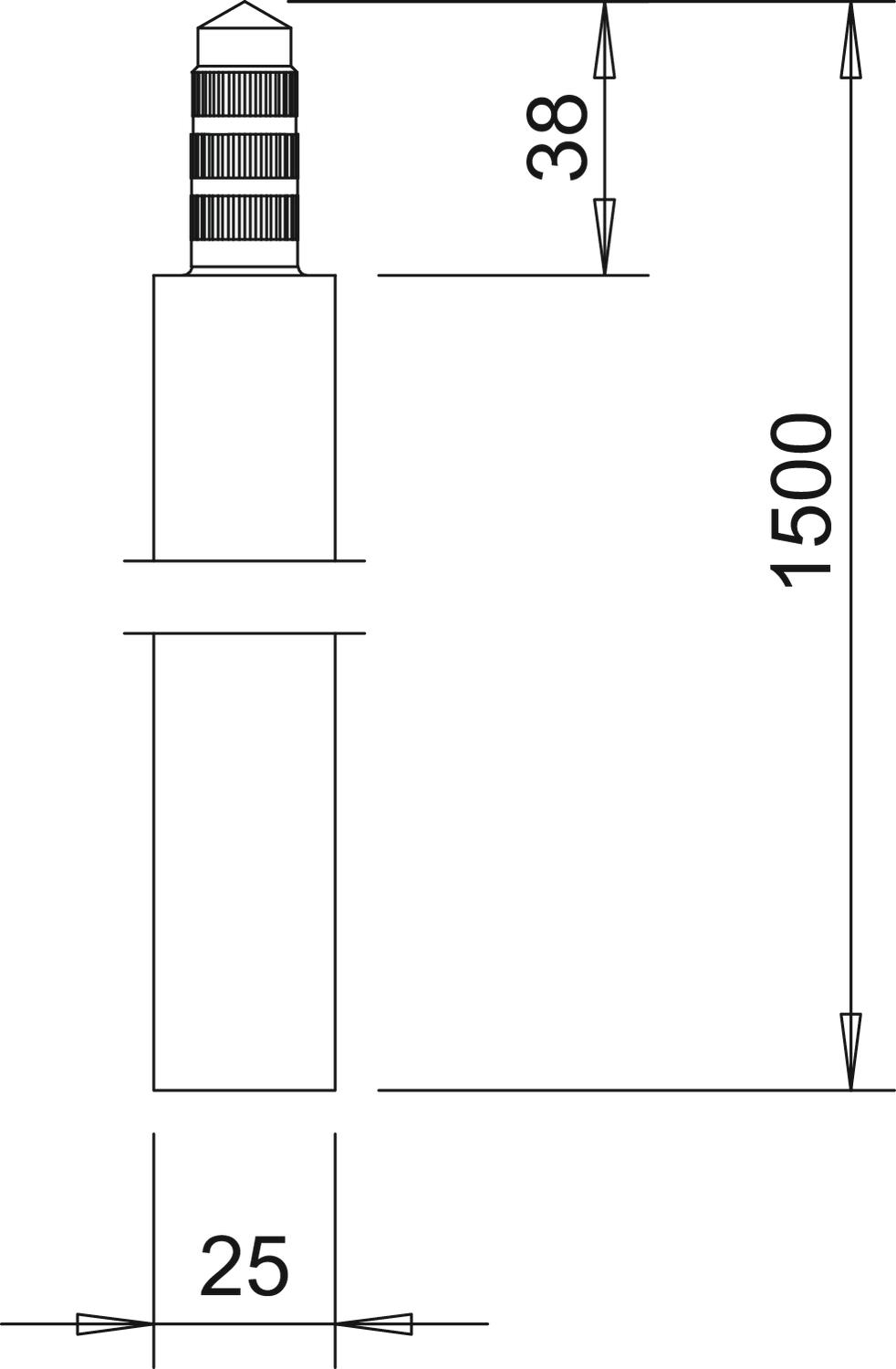

CO2 Footprint (GWP) Cradle-to-Gate 15,7568 kg CO2e / 1 Piece Dimension 1,5m External diameter 25 mm Length 1500 mm Lightning current carrying capacity H/100 kA Material Steel Profile type Round D=25 mm Short-circuit current (50 HZ)(1 s;≤300°C) 12,3 kA Surface Hot-dip galvanised - All types
-
Mounting accessories
Products Types Item no.
Driving spike for ST and BP earth rod
1819 25BP 3041956
Driving head for ST, BP and OMEX earth rods
1820 25 3042251
Connection clip for earthing rod to round cables Rd 8−10
2710 25 FT 5001226
Connection clamp for earth rod on flat conductor FT
2730 25 FT 5001412
Connection clamp for earth rod, universal FT
2760 25 FT 5001668 - Downloads
-
Data sheet 219 25 ST FT / 5000769 , 0.17MB , pdfEU declaration of conformity 219 25 ST FT / 5000769 , 0.06MB , pdfREACH Declaration of conformity 219 25 ST FT / 5000769 , 0.12MB , pdfRoHS Declaration of conformity 219 25 ST FT / 5000769 , 0.13MB , pdfMounting instructions Mounting instructions, earth rod , 0.15MB , pdfNo invitation to tender text is available for this product.
