Cutting ring
Item no. 2029103 | EAN 4012195167051
- Product description
-

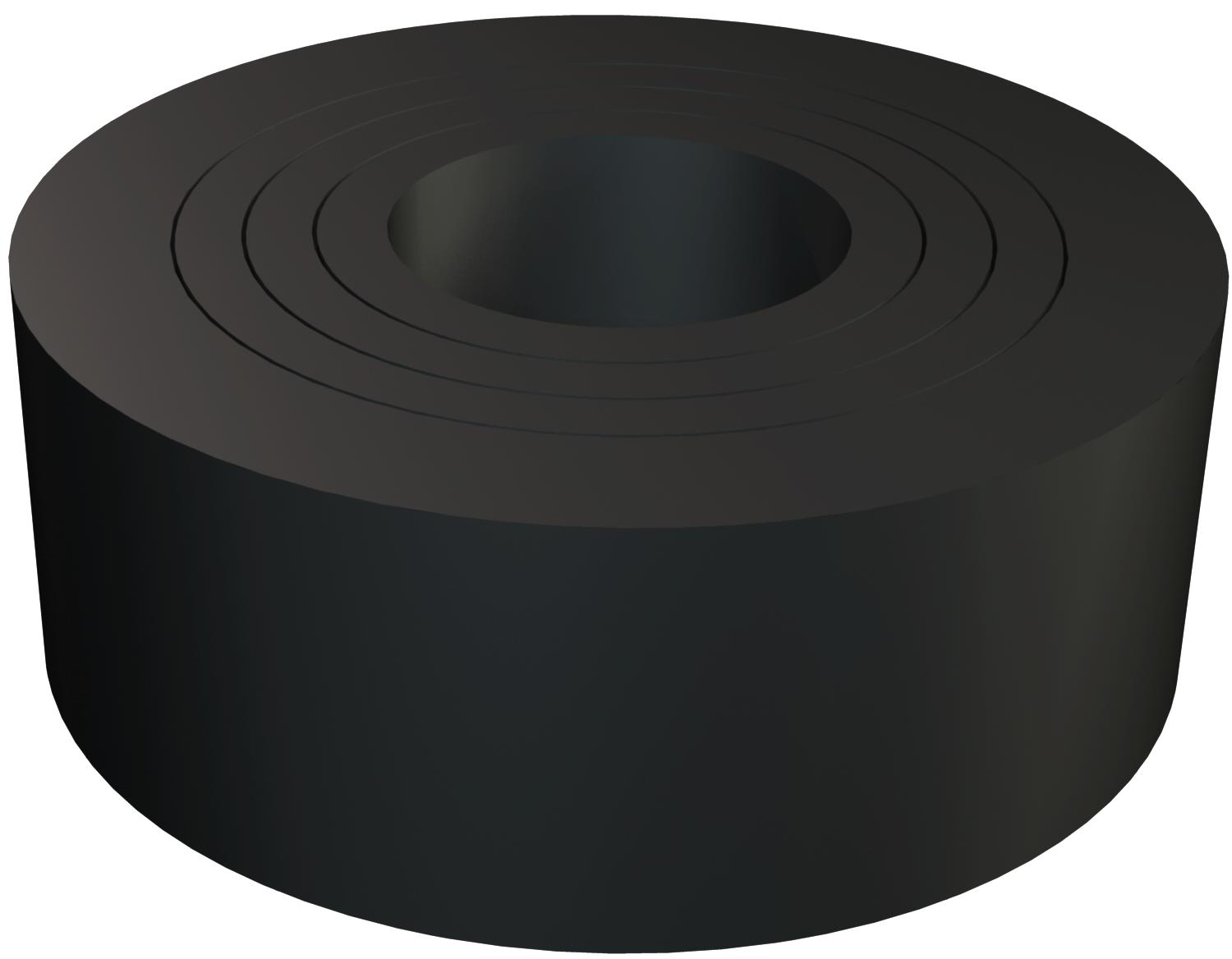

Product descriptionRubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
-
- Technical data
-
Technical data

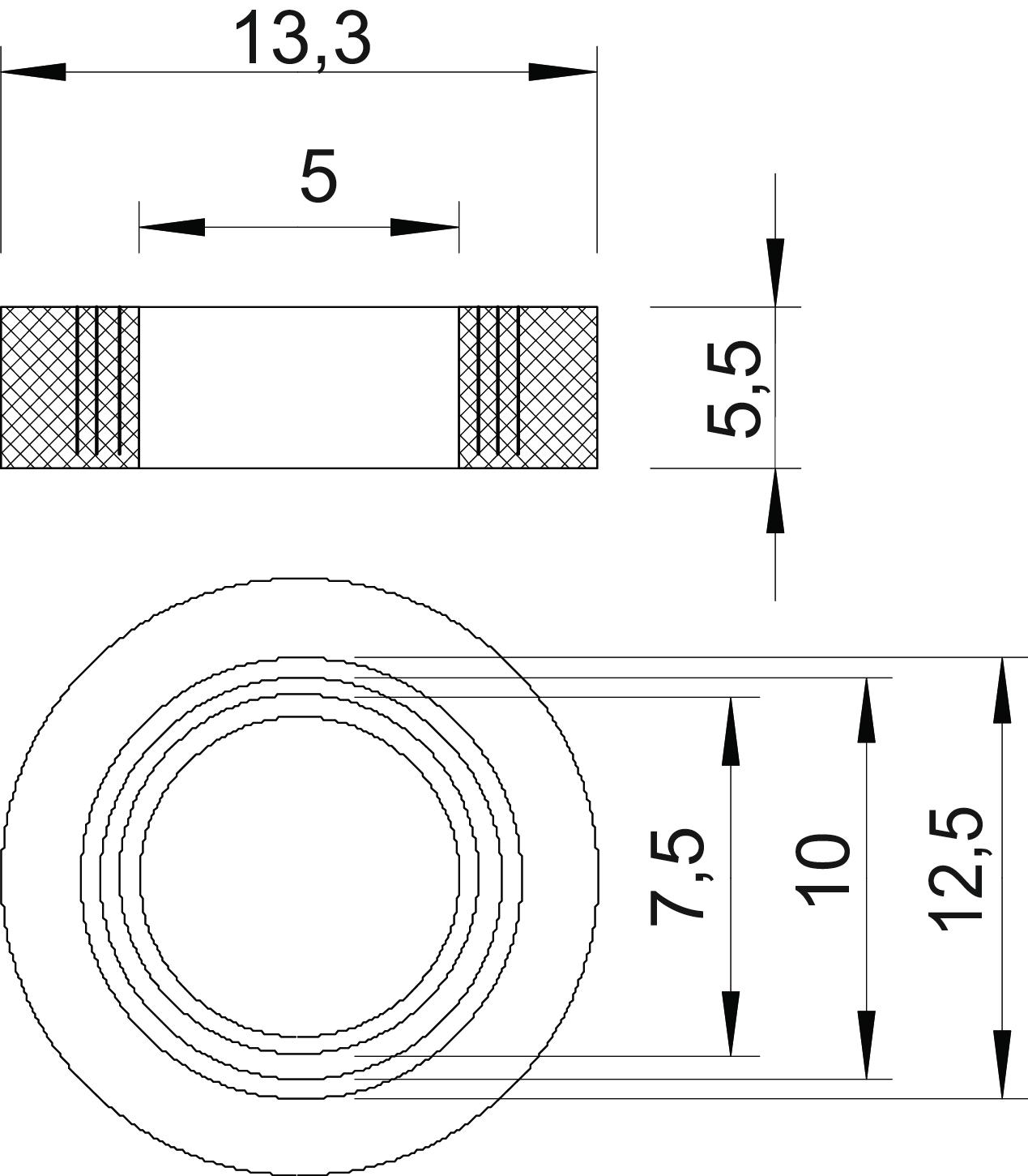

CO2 Footprint (GWP) Cradle-to-Gate 0,004 kg CO₂e / 1 Piece Colour Black Dimension PG9 Dimension D1 5 mm Dimension D2 13,3 mm Dimension D3 7,5 mm Dimension D4 10 mm Dimension D5 12,5 mm Dimension H 5,5 mm Material Rubber mixture Sealing area D, max. 10 mm Sealing area D, min. 5 mm Size M16 Size Pg 9 - All types
- Downloads
-
Data sheet 107 B PG9 / 2029103 , 0.19MB , pdfEU declaration of conformity 107 B PG9 / 2029103 , 0.05MB , pdfREACH Declaration of conformity 107 B PG9 / 2029103 , 0.12MB , pdfRoHS Declaration of conformity 107 B PG9 / 2029103 , 0.12MB , pdf
