Cutting ring
Item no. 2029421 | EAN 4012195167471
- Product description
-

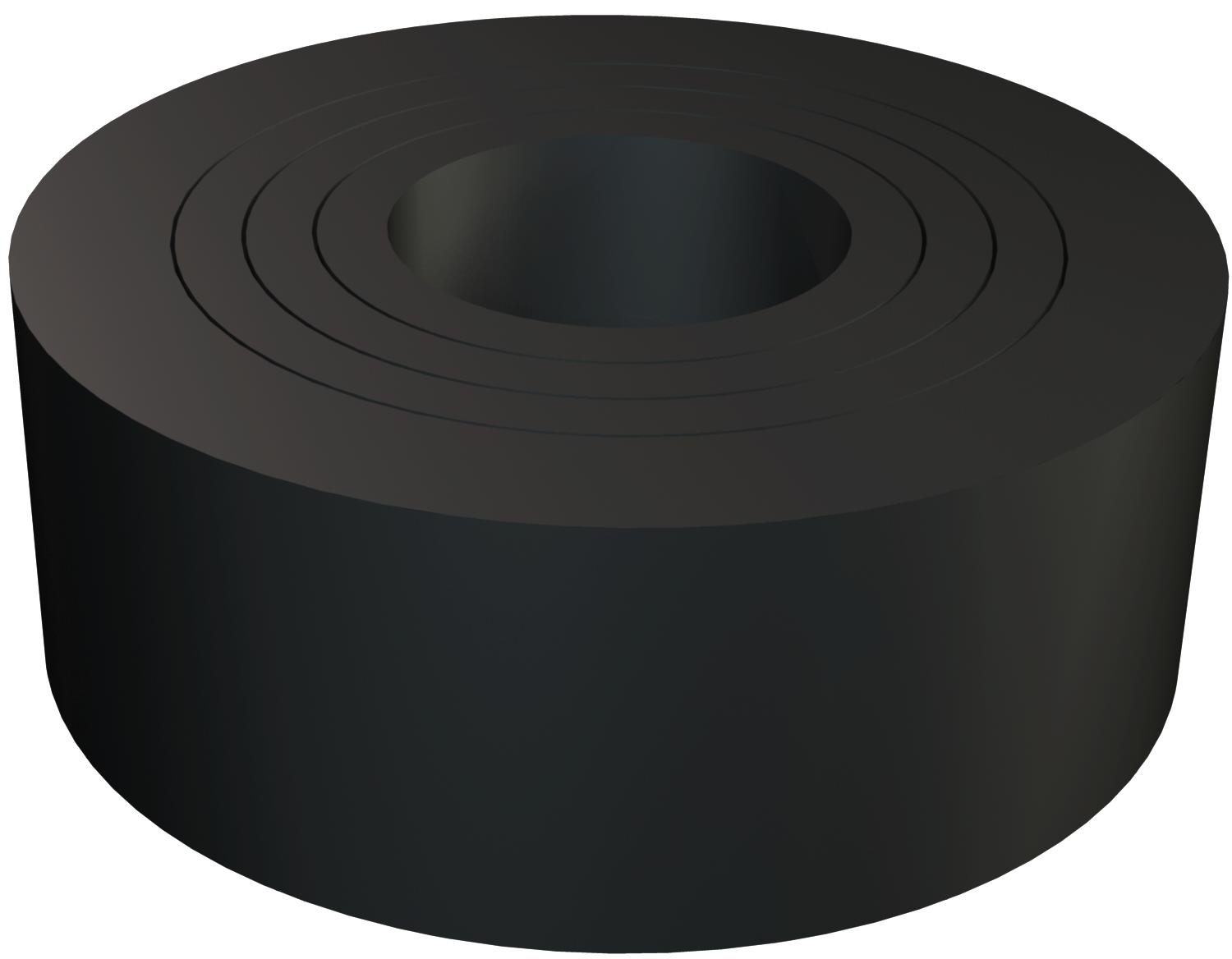

Product descriptionRubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
-
- Technical data
-
Technical data

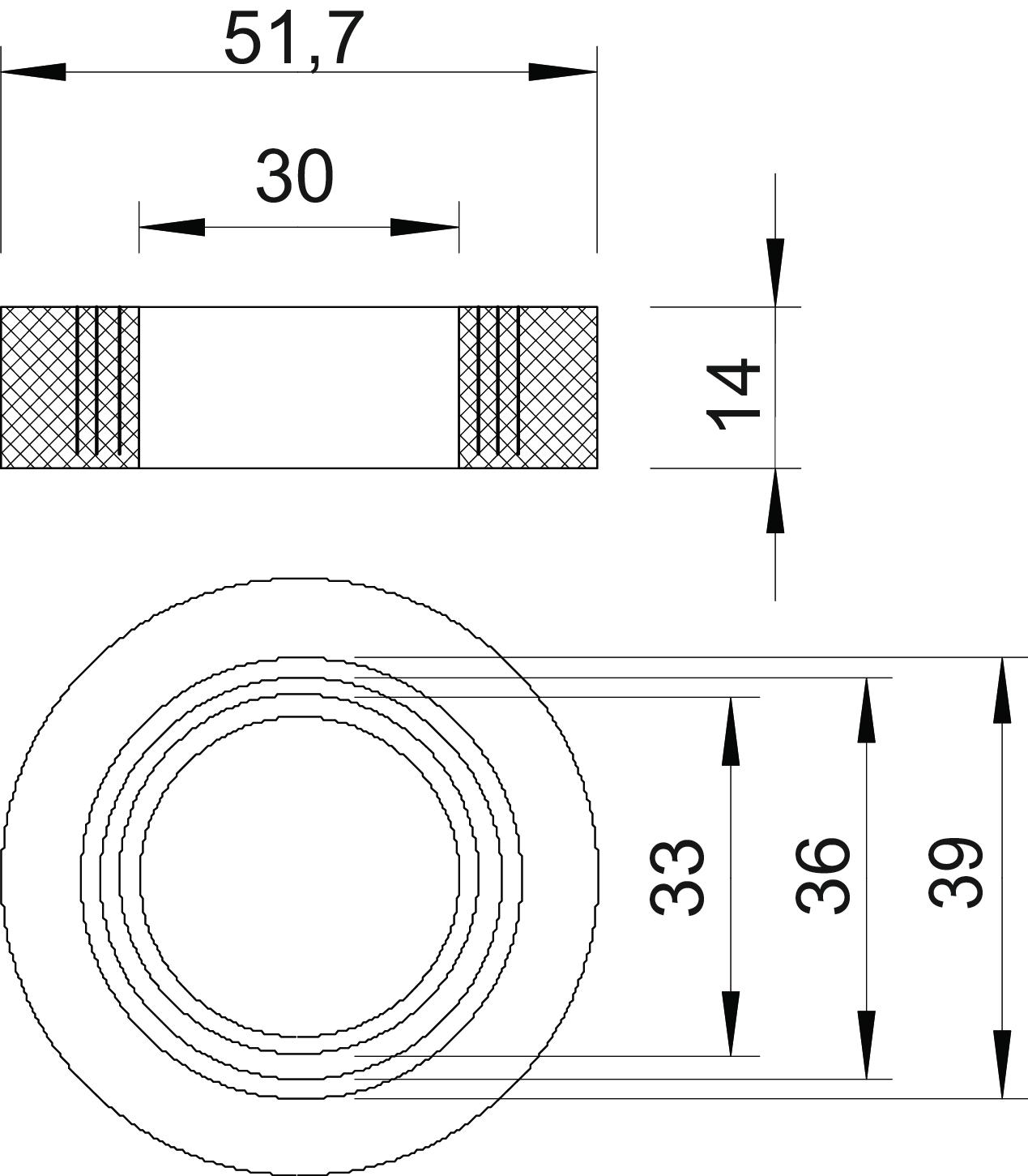

CO2 Footprint (GWP) Cradle-to-Gate 0,1009 kg CO₂e / 1 Piece Colour Black Dimension PG42 Dimension D1 30 mm Dimension D2 51,7 mm Dimension D3 33 mm Dimension D4 36 mm Dimension D5 39 mm Dimension H 14 mm Material Rubber mixture Sealing area D, max. 39 mm Sealing area D, min. 30 mm Size M50 Size Pg 42 - All types
- Downloads
-
Data sheet 107 B PG42 / 2029421 , 0.19MB , pdfEU declaration of conformity 107 B PG42 / 2029421 , 0.05MB , pdfREACH Declaration of conformity 107 B PG42 / 2029421 , 0.12MB , pdfRoHS Declaration of conformity 107 B PG42 / 2029421 , 0.12MB , pdf
