Cutting ring
Item no. 2029219 | EAN 4012195167297
- Product description
-

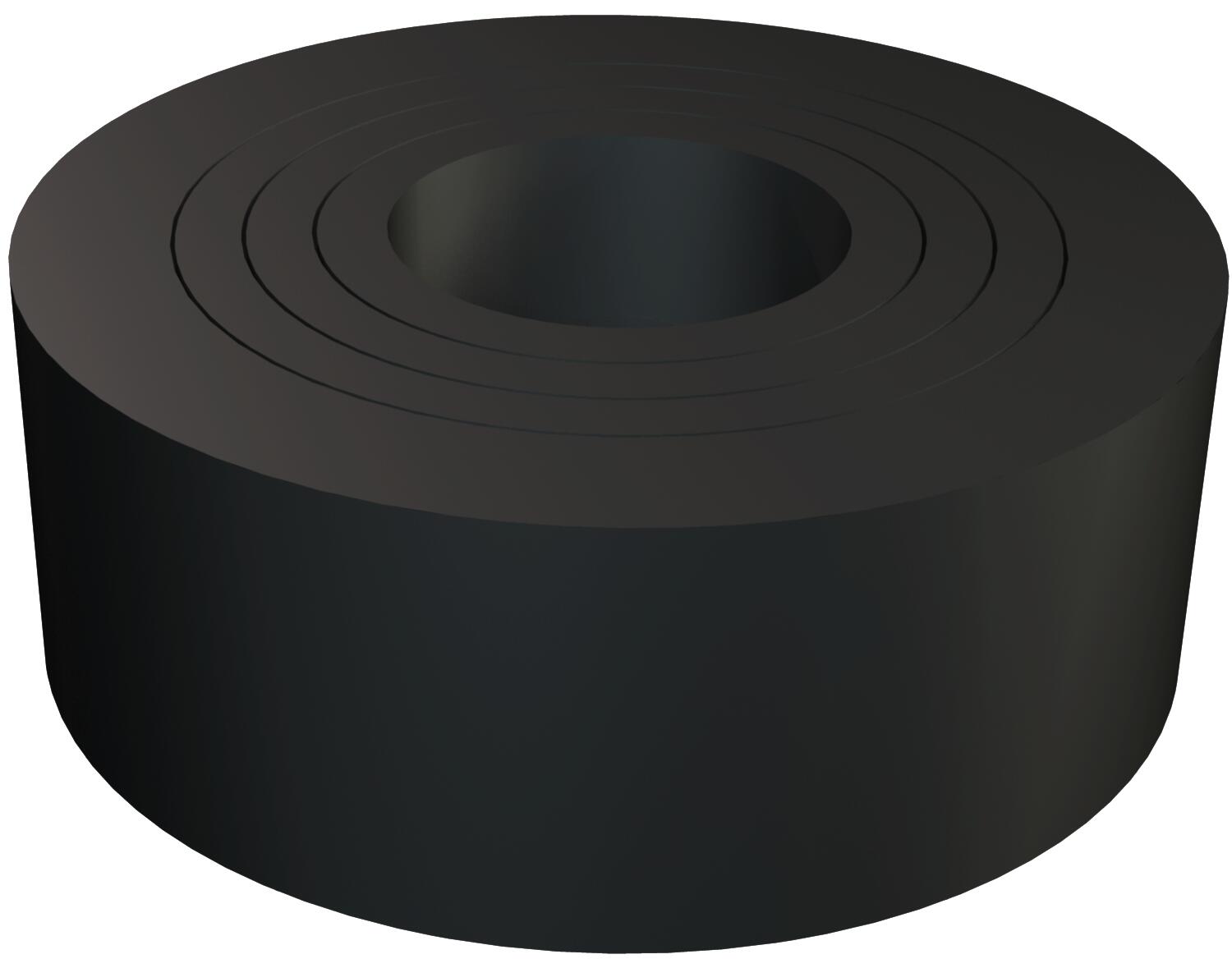

Product descriptionRubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
-
- Technical data
-
Technical data

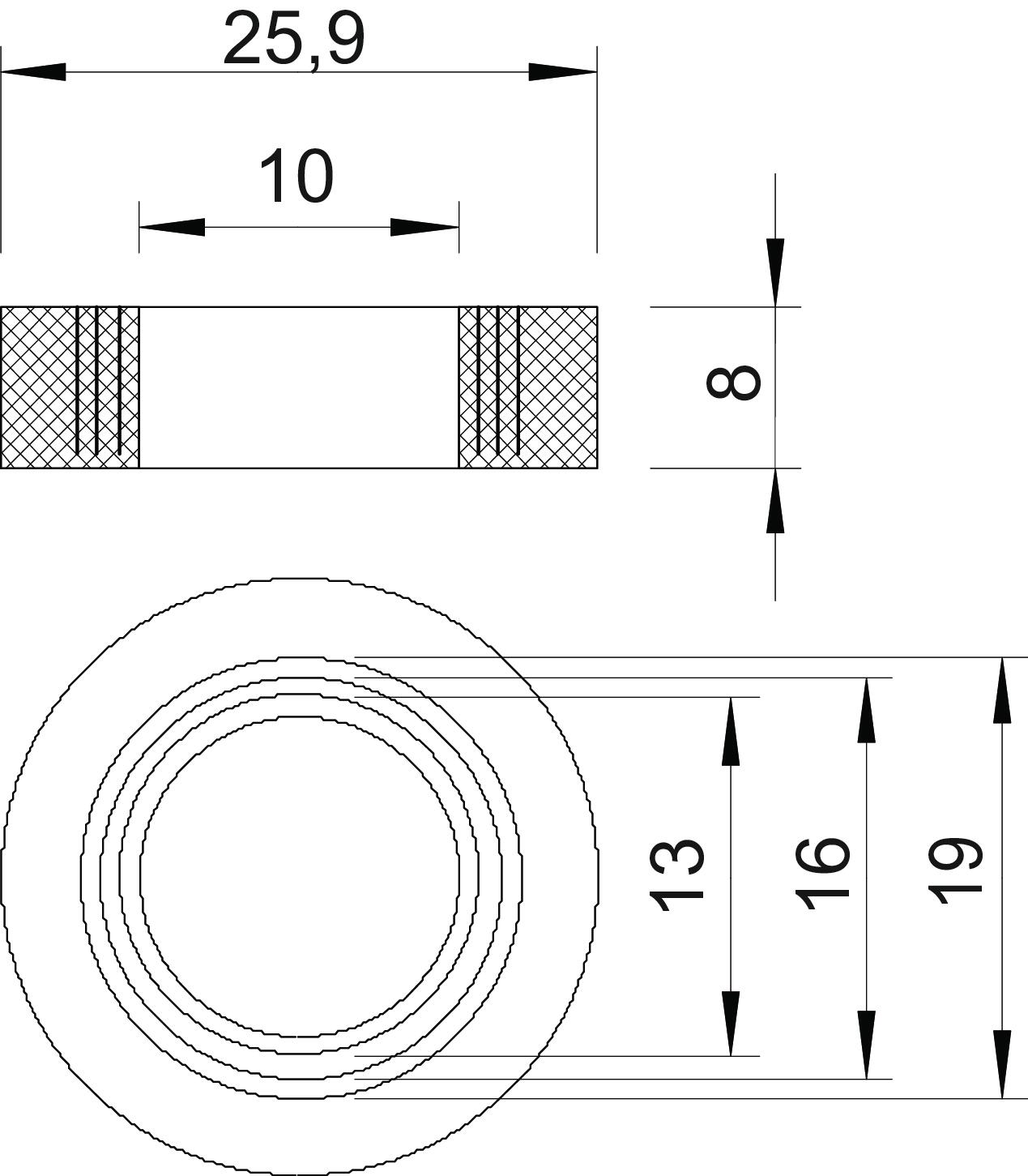

CO2 Footprint (GWP) Cradle-to-Gate 0,0196 kg CO₂e / 1 Piece Colour Black Dimension PG21 Dimension D1 10 mm Dimension D2 25,9 mm Dimension D3 13 mm Dimension D4 16 mm Dimension D5 19 mm Dimension H 8 mm Material Rubber mixture Sealing area D, max. 19 mm Sealing area D, min. 10 mm Size Pg 21 - All types
- Downloads
-
Data sheet 107 B PG21 / 2029219 , 0.19MB , pdfEU declaration of conformity 107 B PG21 / 2029219 , 0.05MB , pdfREACH Declaration of conformity 107 B PG21 / 2029219 , 0.12MB , pdfRoHS Declaration of conformity 107 B PG21 / 2029219 , 0.13MB , pdf
