Cutting ring
Item no. 2029138 | EAN 4012195167174
- Product description
-

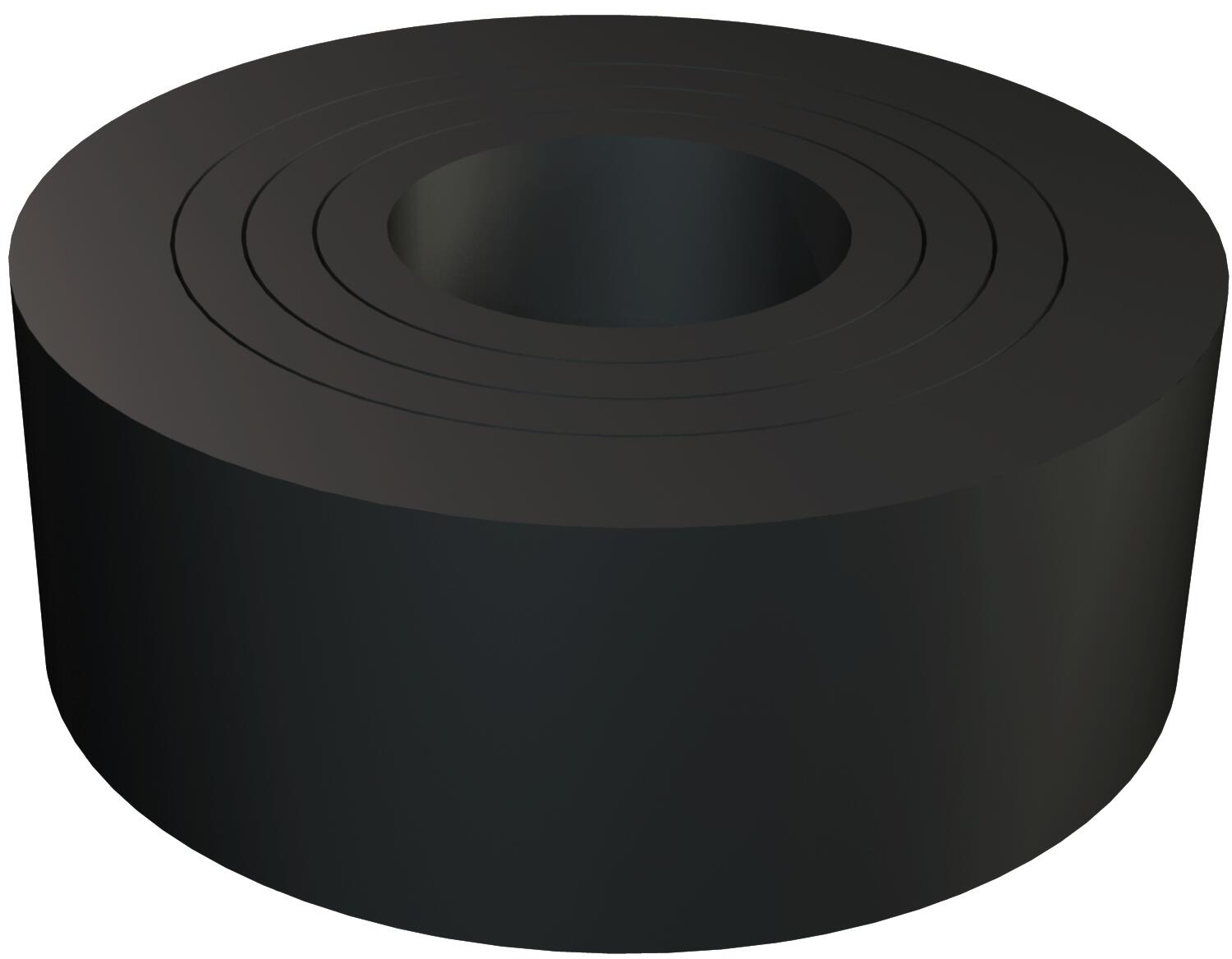

Product descriptionRubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
-
- Technical data
-
Technical data

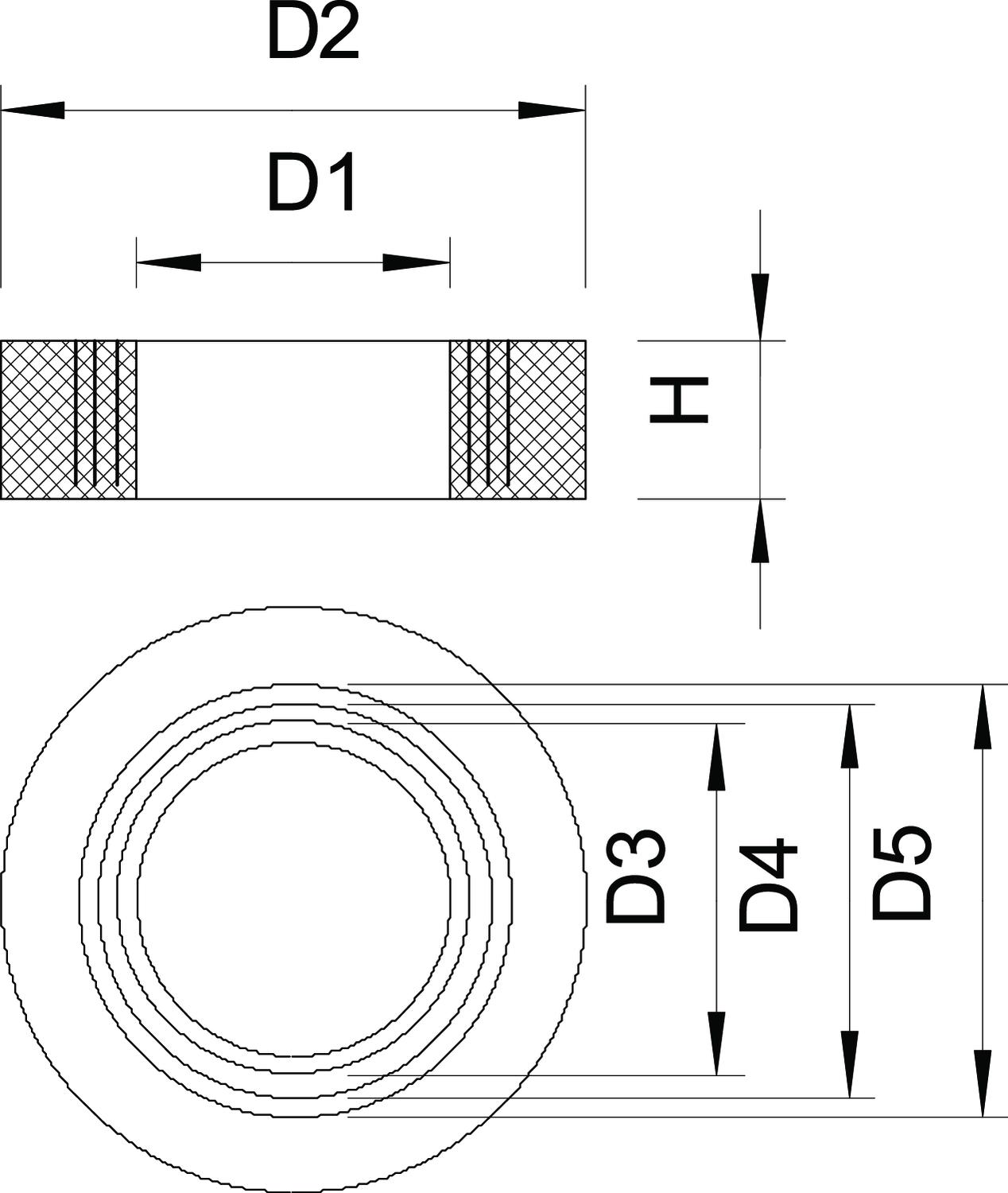

CO2 Footprint (GWP) Cradle-to-Gate 0,0073 kg CO₂e / 1 Piece Colour Black Dimension PG13,5 Dimension D1 7,5 mm Dimension D2 18,3 mm Dimension D3 10 mm Dimension D4 12,5 mm Dimension D5 15 mm Dimension H 6 mm Material Rubber mixture Sealing area D, max. 12,5 mm Sealing area D, min. 7,5 mm Size M20 Size Pg 13,5 - All types
- Downloads
-
Data sheet 107 B PG13.5 / 2029138 , 0.19MB , pdfEU declaration of conformity 107 B PG13.5 / 2029138 , 0.05MB , pdfREACH Declaration of conformity 107 B PG13.5 / 2029138 , 0.12MB , pdfRoHS Declaration of conformity 107 B PG13.5 / 2029138 , 0.12MB , pdf
