Cutting ring
Item no. 2029480 | EAN 4012195167532
- Product description
-

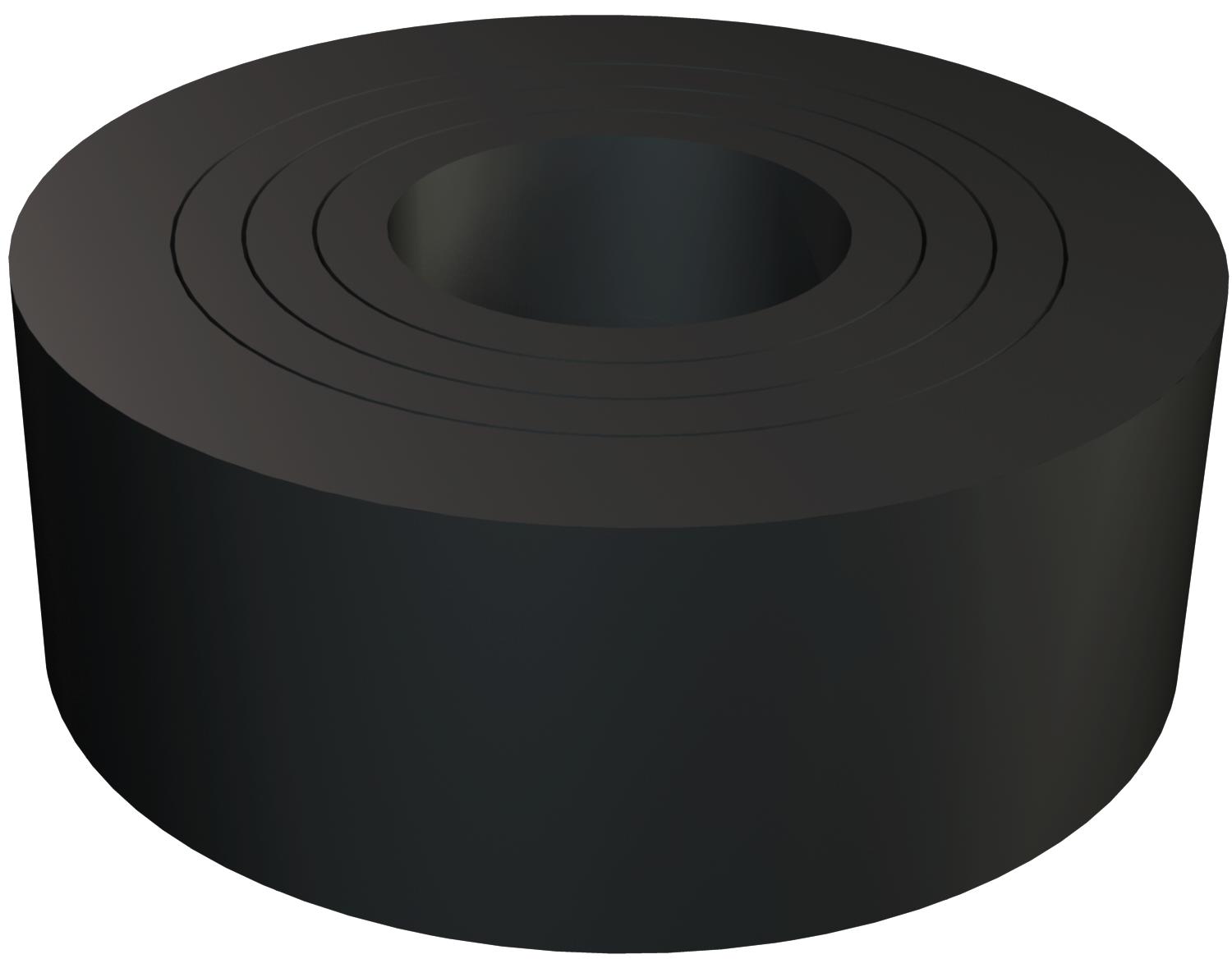

Product descriptionRubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
-
- Technical data
-
Technical data

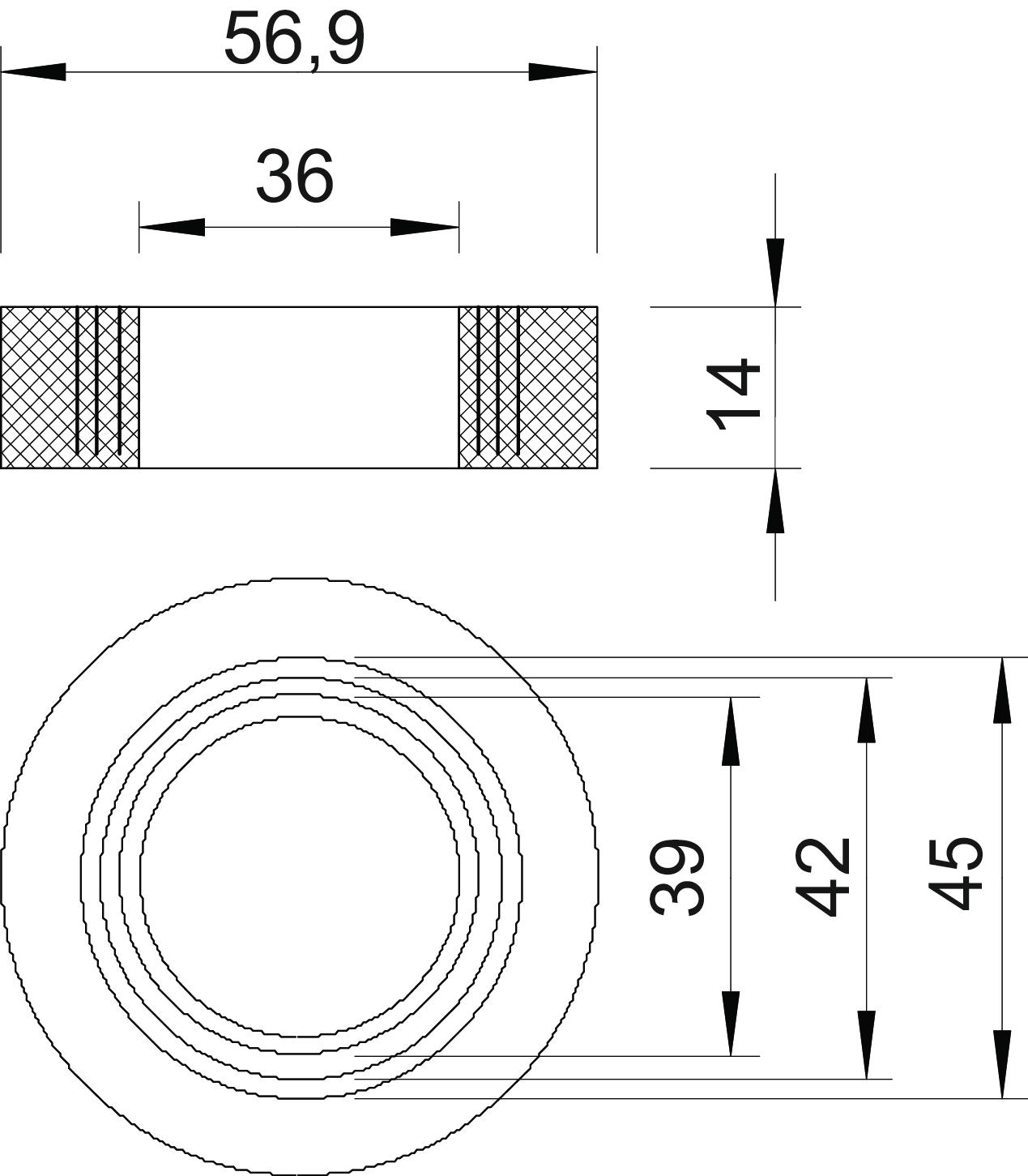

CO2 Footprint (GWP) Cradle-to-Gate 0,118 kg CO₂e / 1 Piece Colour Black Dimension PG48 Dimension D1 36 mm Dimension D2 56,9 mm Dimension D3 39 mm Dimension D4 42 mm Dimension D5 45 mm Dimension H 14 mm Material Rubber mixture Sealing area D, max. 45 mm Sealing area D, min. 36 mm Size M63 Size Pg 48 - All types
- Downloads
-
Data sheet 107 B PG48 / 2029480 , 0.19MB , pdfEU declaration of conformity 107 B PG48 / 2029480 , 0.05MB , pdfREACH Declaration of conformity 107 B PG48 / 2029480 , 0.12MB , pdfRoHS Declaration of conformity 107 B PG48 / 2029480 , 0.12MB , pdf
