Cutting ring
Item no. 2029367 | EAN 4012195167419
- Product description
-

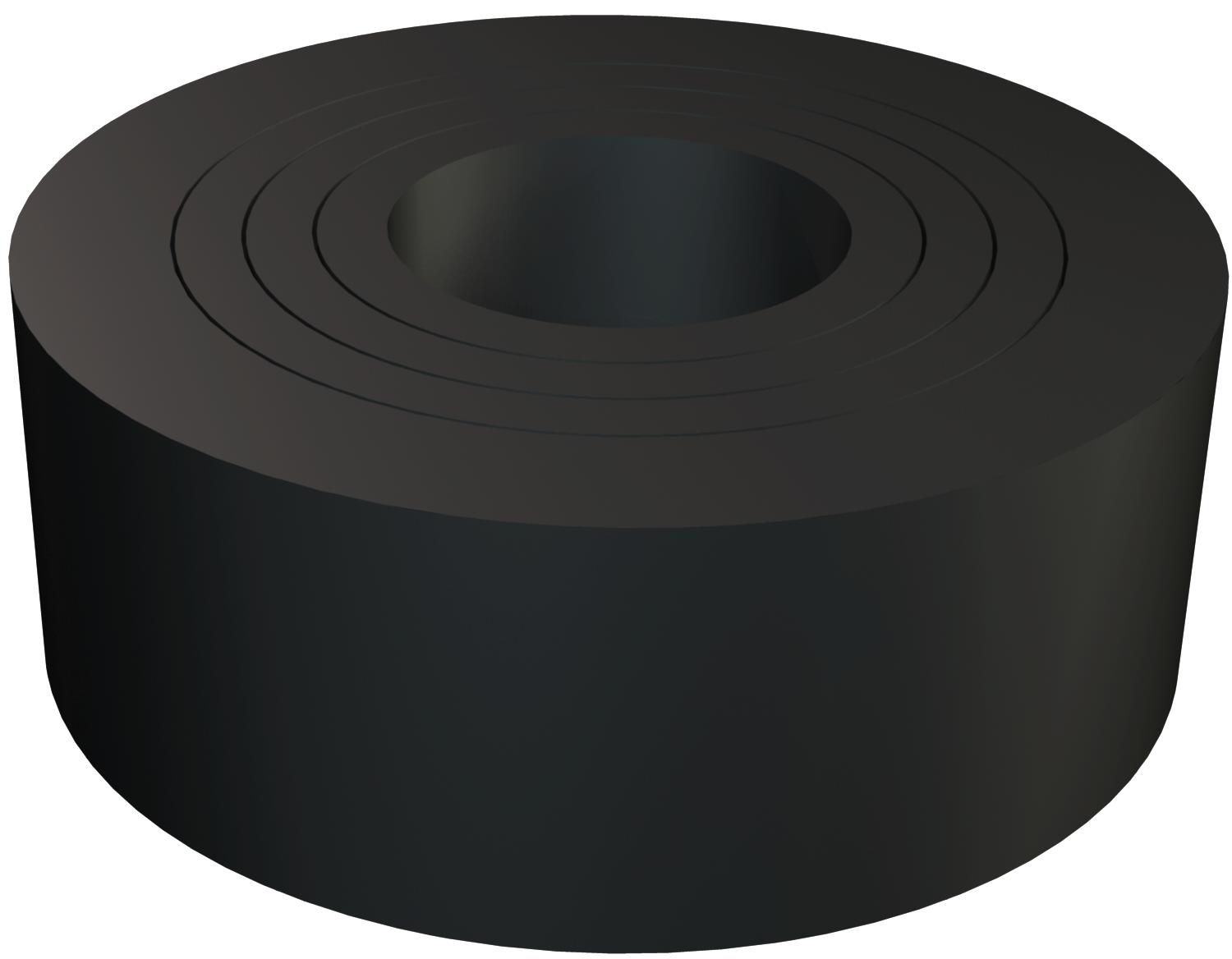

Product descriptionRubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
-
- Technical data
-
Technical data

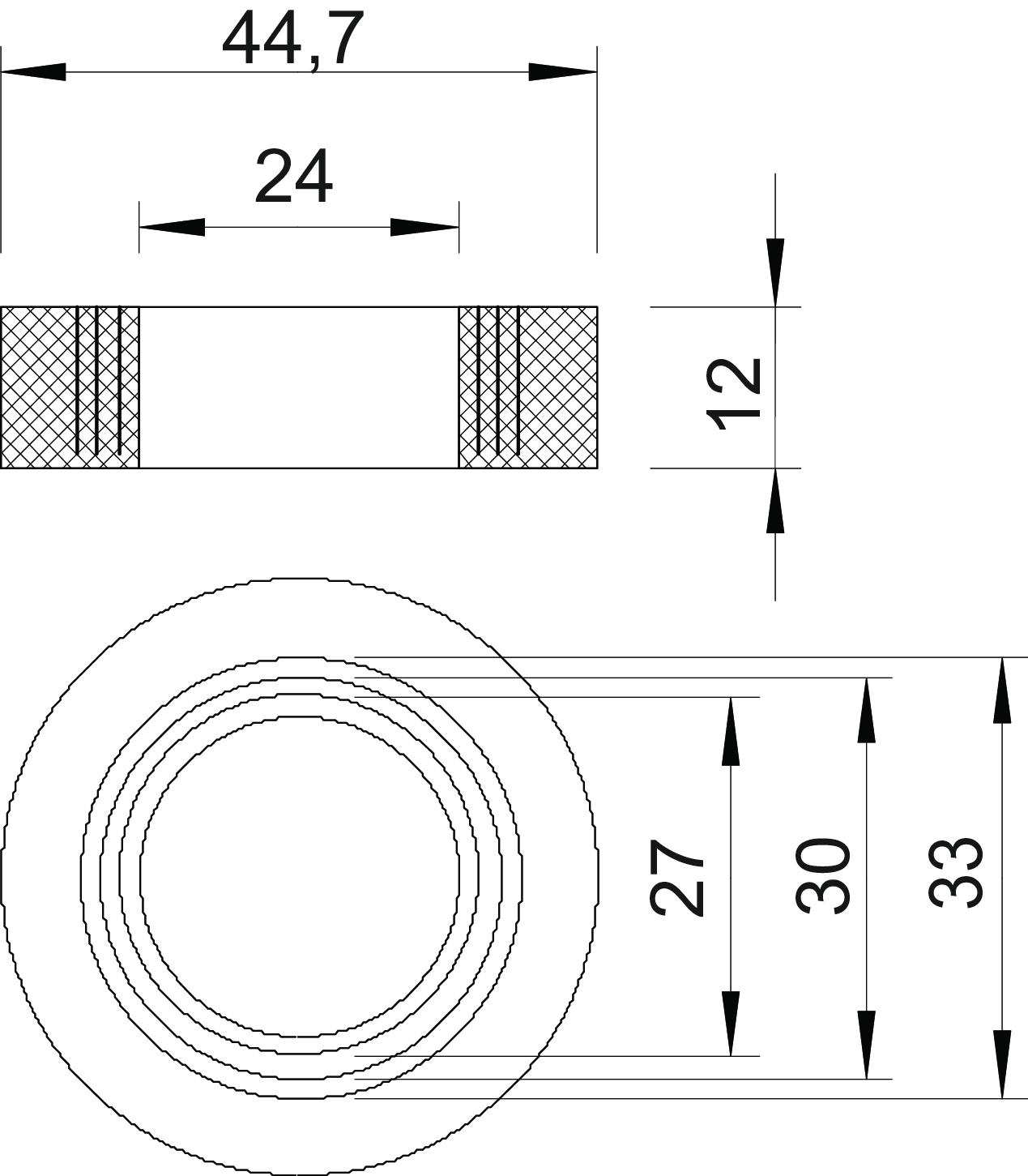

CO2 Footprint (GWP) Cradle-to-Gate 0,0685 kg CO₂e / 1 Piece Colour Black Dimension PG36 Dimension D1 24 mm Dimension D2 44,7 mm Dimension D3 27 mm Dimension D4 30 mm Dimension D5 33 mm Dimension H 12 mm Material Rubber mixture Sealing area D, max. 33 mm Sealing area D, min. 24 mm Size Pg 36 Size M40 - All types
- Downloads
-
Data sheet 107 B PG36 / 2029367 , 0.19MB , pdfEU declaration of conformity 107 B PG36 / 2029367 , 0.05MB , pdfREACH Declaration of conformity 107 B PG36 / 2029367 , 0.12MB , pdfRoHS Declaration of conformity 107 B PG36 / 2029367 , 0.12MB , pdf
