Adapter PG-M

Item no. 2031471 | EAN 4012195372103

Product description
Product description

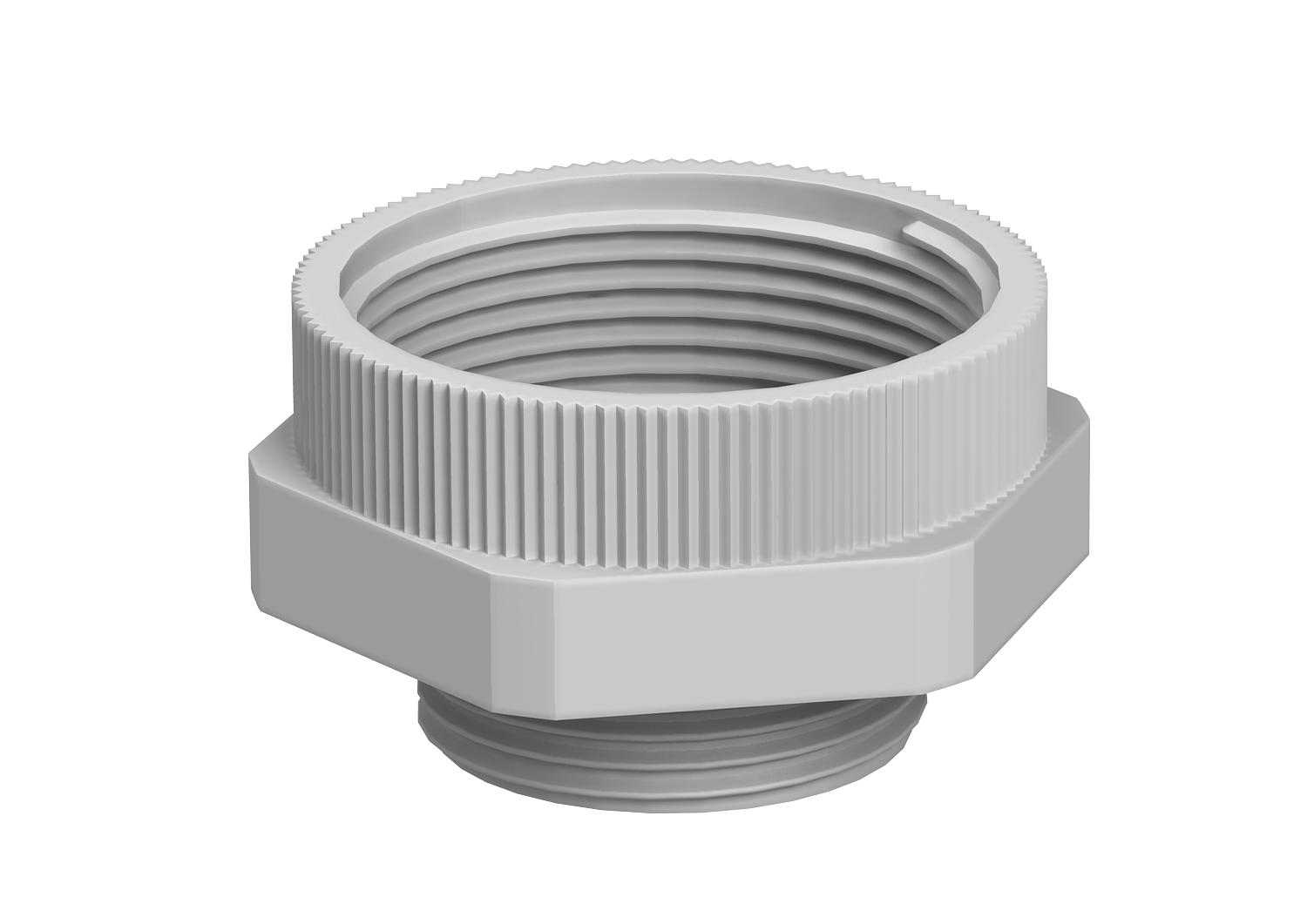

Adapter for converting a Pg threaded drill hole to a metric threaded drill hole.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Thread Pg
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0772 kg CO₂e / 1 Piece
Colour Light grey; RAL 7035

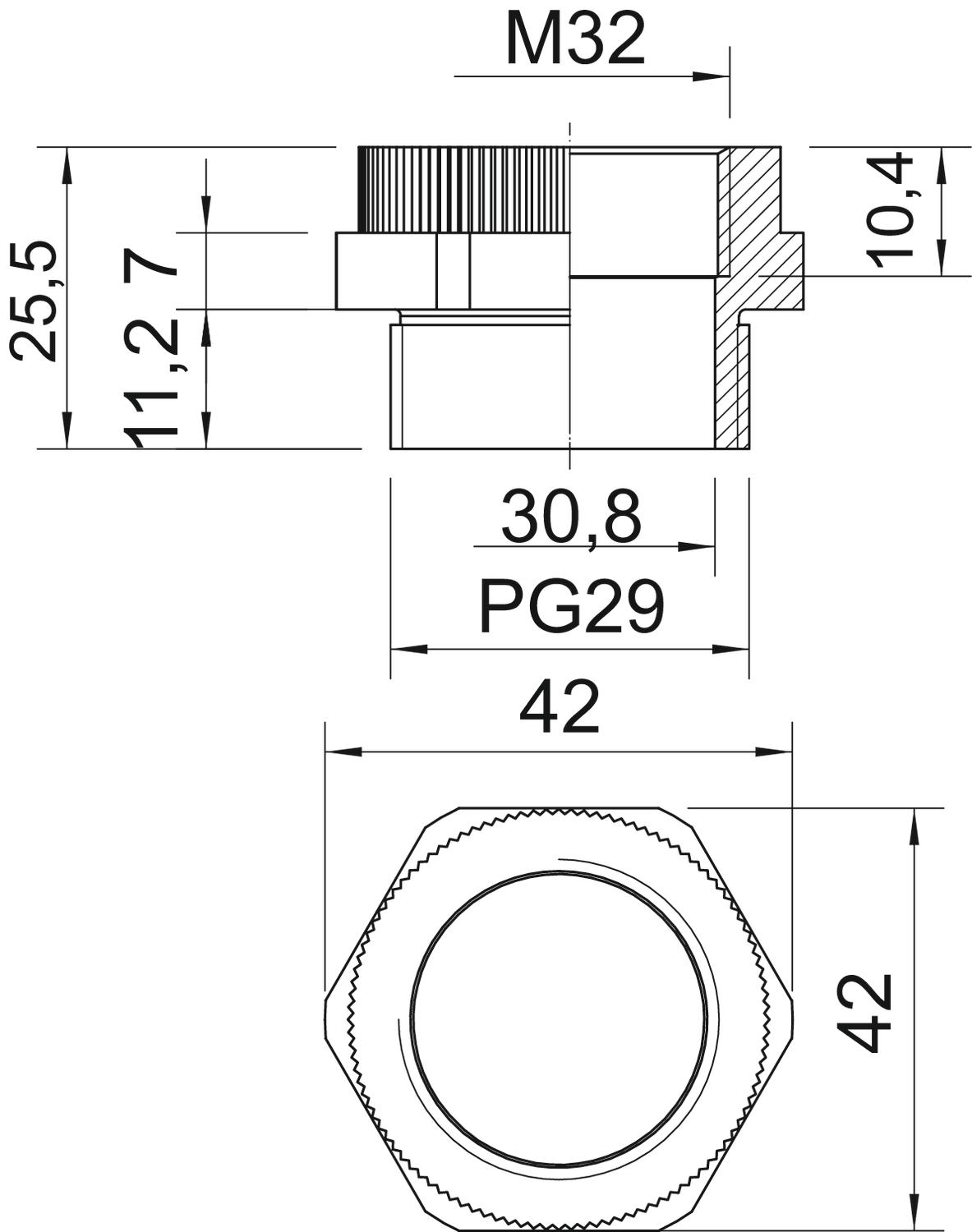

Dimension PG29-M32
Dimension D 30,8 mm
Dimension E 42 mm
Dimension L 25,5 mm
Dimension L1 11,2 mm
Dimension L2 7 mm
Dimension L3 10,4 mm
explosion-proof no
Material Polyamide
Nickel-plated no
Thread dimension, metric, internal 32
Thread dimension, PG, external 29
Thread type: External thread PG
Thread type: Internal thread Metric
WAF 42
All types

All types

Types Thread dimension, metric, internal Thread dimension, PG, external WAF Item no.
107 ADA PG7-M12 12 7 15 2031465
107 ADA PG9-M12 12 9 19 2031466
107 ADA PG11-M16 16 11 22 2031467
107 ADA PG13-M20 20 13.5 24 2031468
107 ADA PG16-M20 20 16 27 2031469
107 ADA PG21-M25 25 21 33 2031470
107 ADA PG29-M32 32 29 42 2031471
