Adapter PG-M
Item no. 2031468 | EAN 4012195372073
- Product description
-

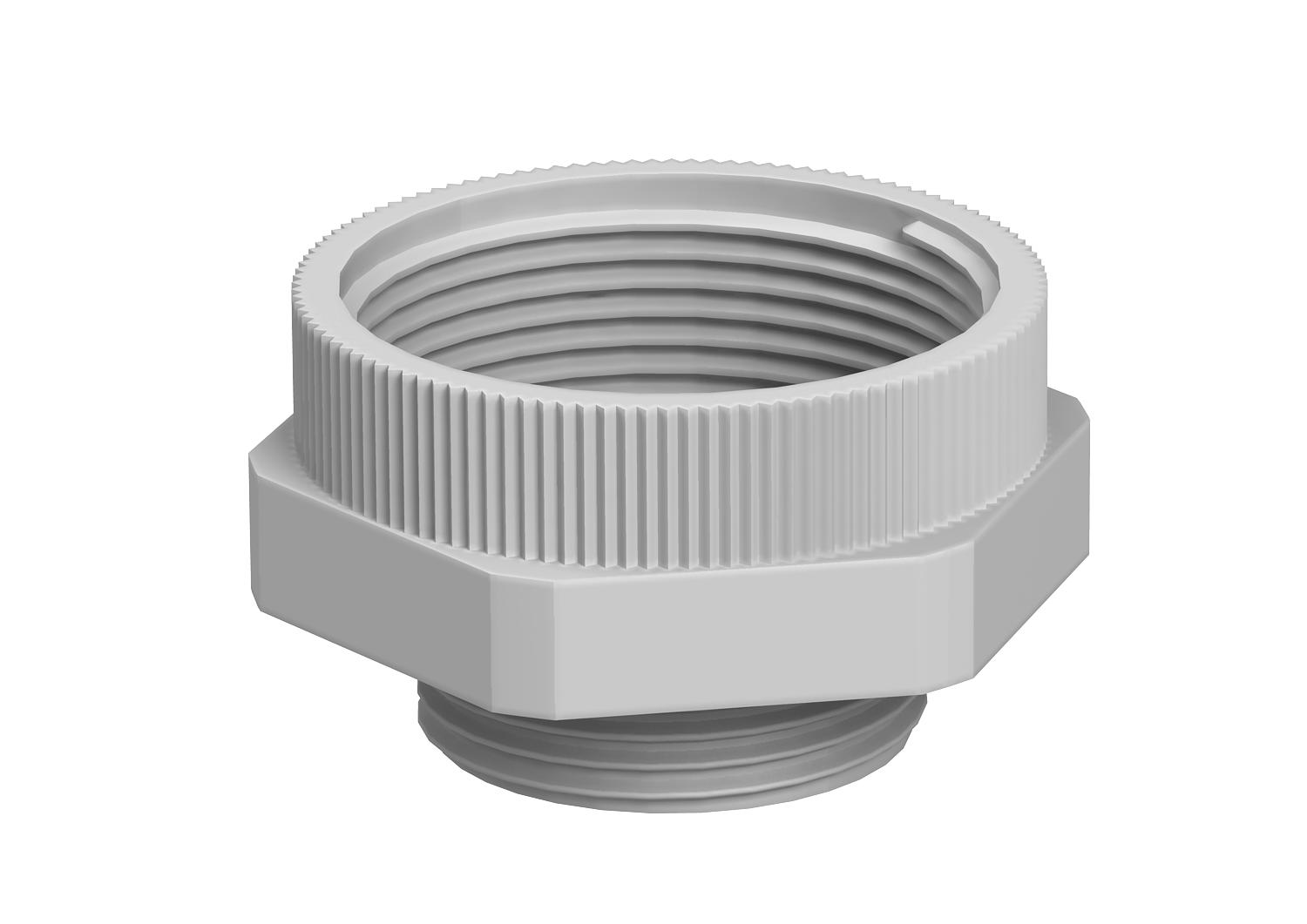

Product descriptionAdapter for converting a Pg threaded drill hole to a metric threaded drill hole.
-
- Technical data
-
Technical data

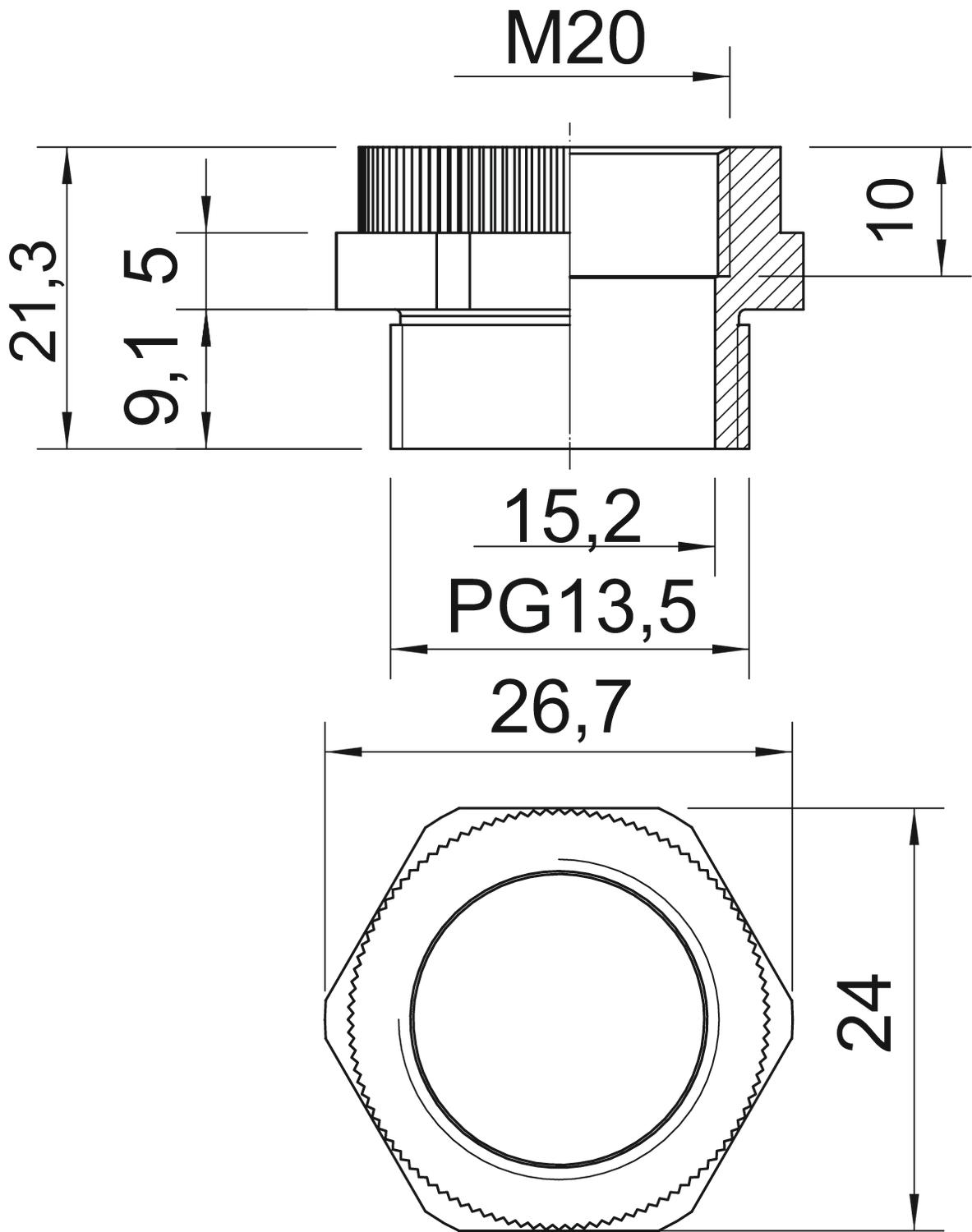

CO2 Footprint (GWP) Cradle-to-Gate 0,0229 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Dimension PG13,5-M20 Dimension D 15,2 mm Dimension E 26,7 mm Dimension L 21,3 mm Dimension L1 9,1 mm Dimension L2 5 mm Dimension L3 10 mm explosion-proof no Material Polyamide Nickel-plated no Thread dimension, metric, internal 20 Thread dimension, PG, external 13,5 Thread type: External thread PG Thread type: Internal thread Metric WAF 24 - All types
- Downloads
-
Data sheet 107 ADA PG13-M20 / 2031468 , 0.18MB , pdfREACH Declaration of conformity 107 ADA PG13-M20 / 2031468 , 0.09MB , pdfRoHS Declaration of conformity 107 ADA PG13-M20 / 2031468 , 0.13MB , pdf
