Adapter PG-M
Item no. 2031465 | EAN 4012195372042
- Product description
-

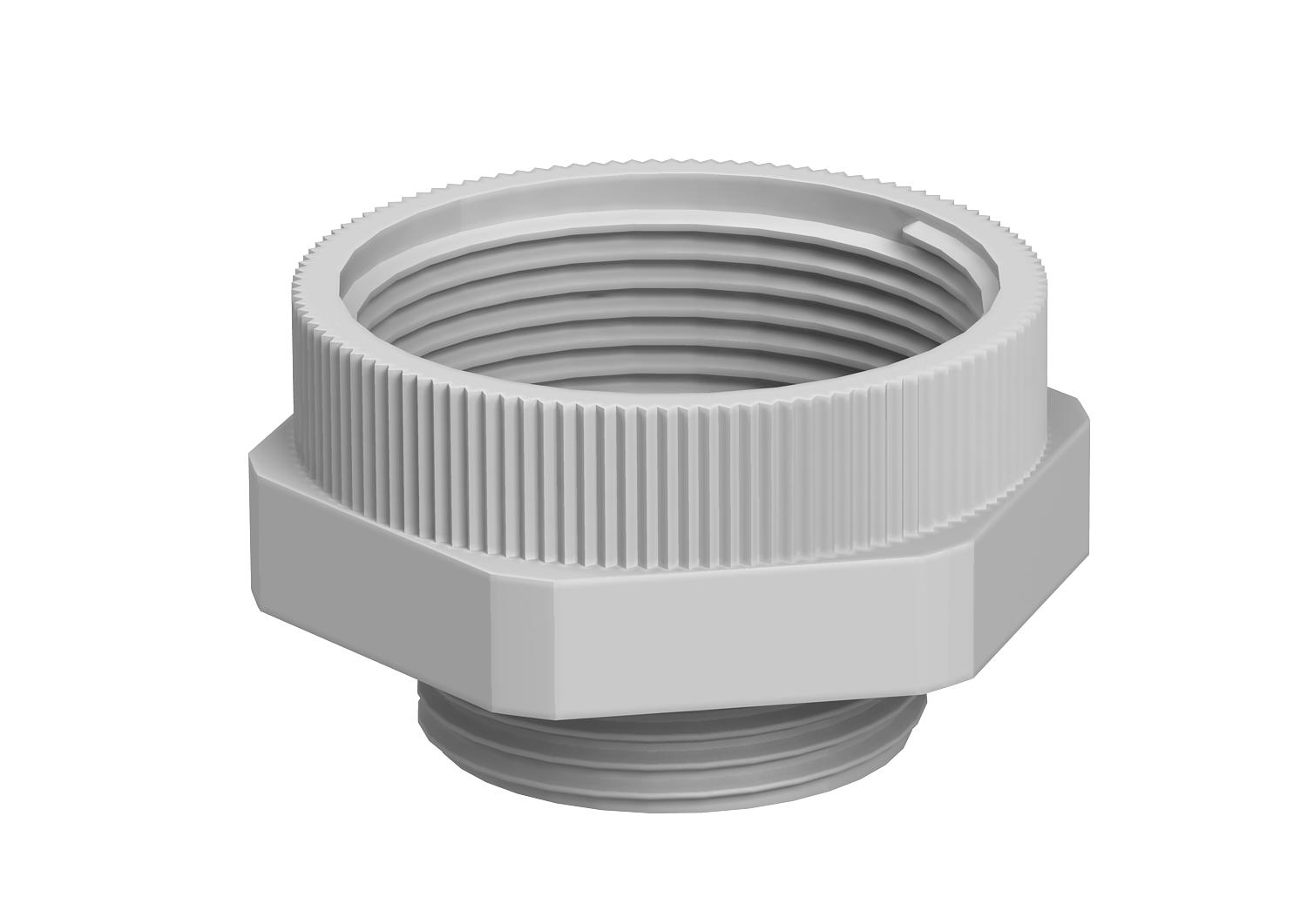

Product descriptionAdapter for converting a Pg threaded drill hole to a metric threaded drill hole.
-
- Technical data
-
Technical data

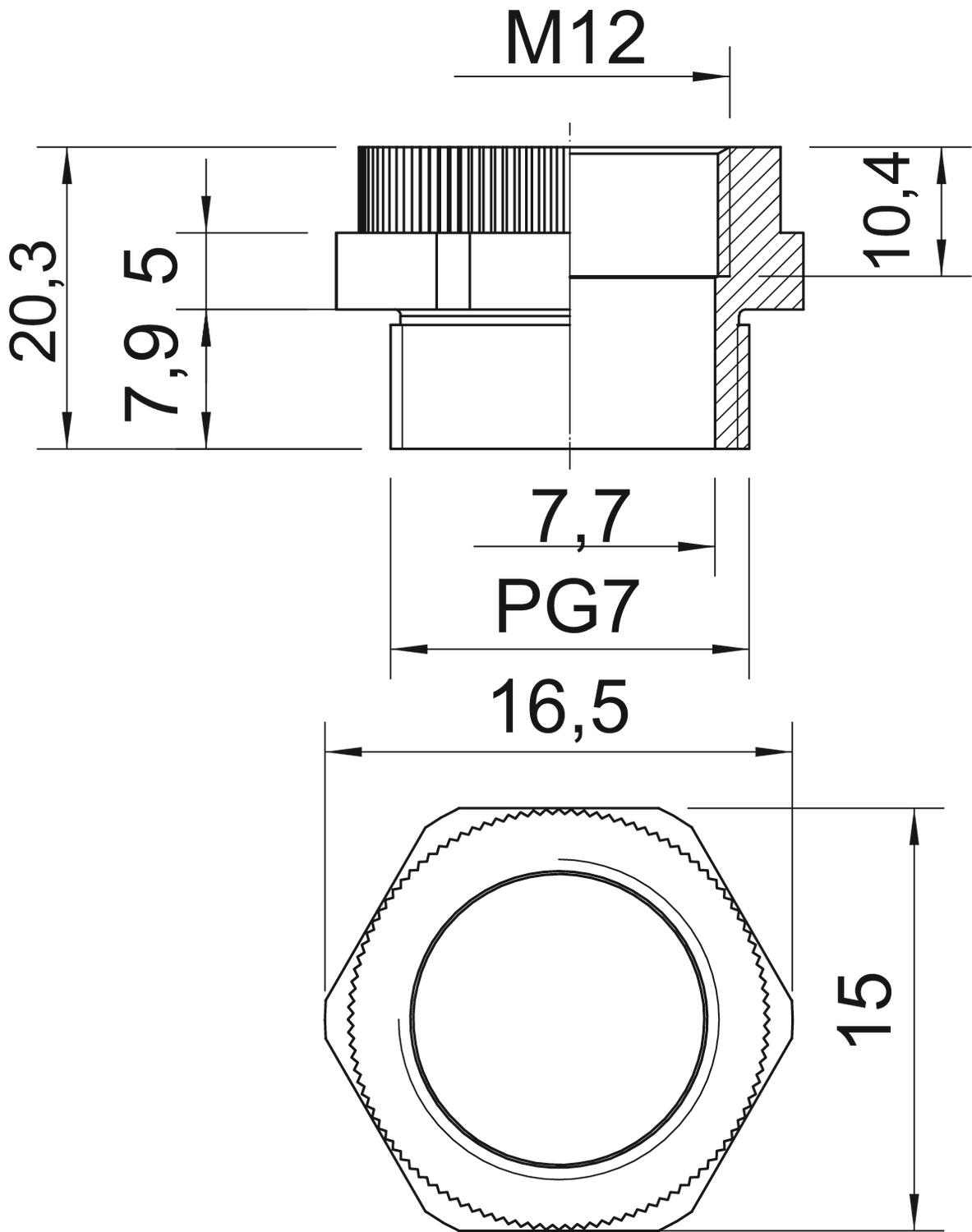

CO2 Footprint (GWP) Cradle-to-Gate 0,0172 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Dimension PG7-M12 Dimension D 7,7 mm Dimension E 16,5 mm Dimension L 20,3 mm Dimension L1 7,9 mm Dimension L2 5 mm Dimension L3 10,4 mm explosion-proof no Material Polyamide Nickel-plated no Thread dimension, metric, internal 12 Thread dimension, PG, external 7 Thread type: External thread PG Thread type: Internal thread Metric WAF 15 - All types
- Downloads
-
Data sheet 107 ADA PG7-M12 / 2031465 , 0.18MB , pdfREACH Declaration of conformity 107 ADA PG7-M12 / 2031465 , 0.12MB , pdfRoHS Declaration of conformity 107 ADA PG7-M12 / 2031465 , 0.13MB , pdf
