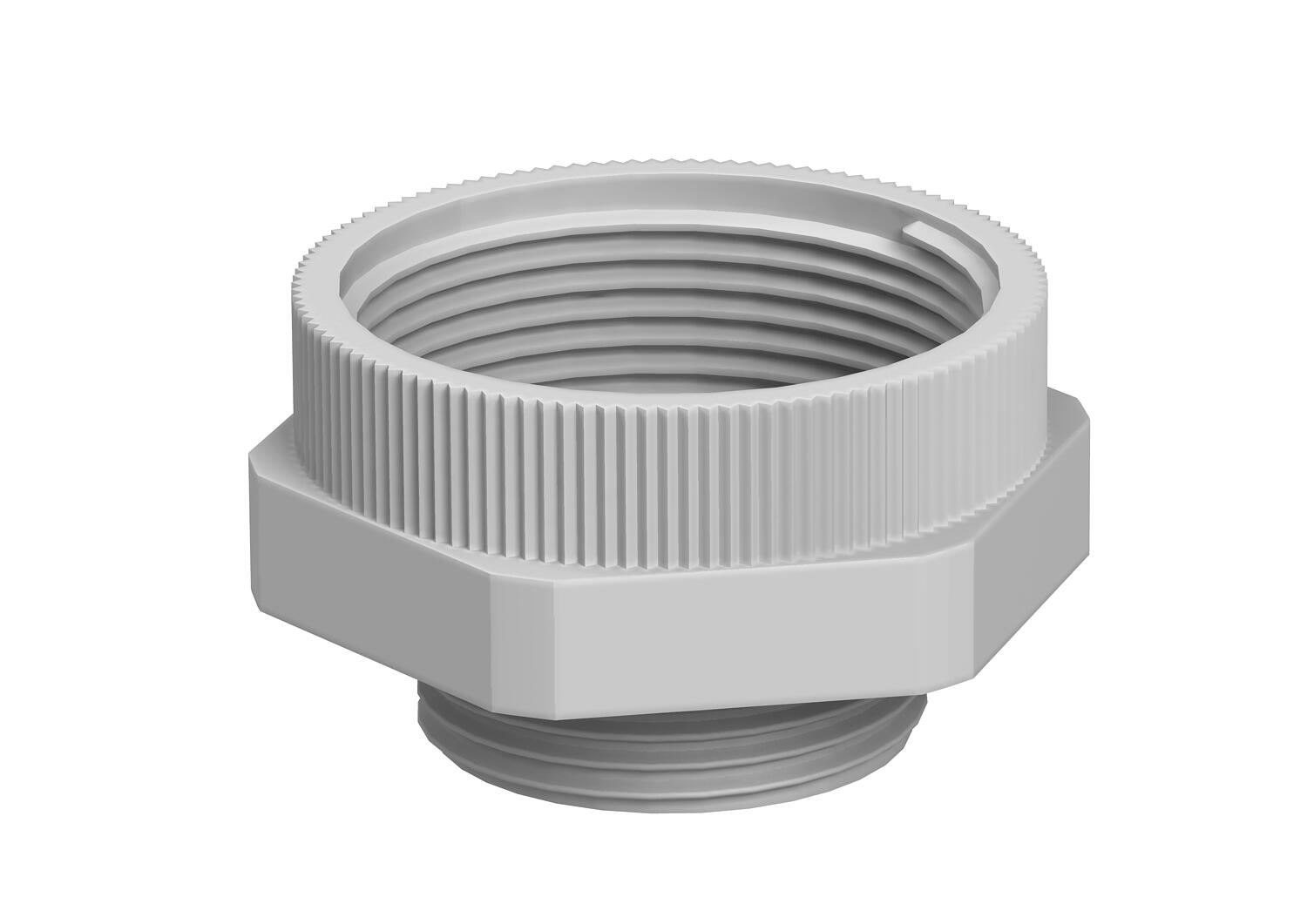

Adapter PG-M

Item no. 2031470 | EAN 4012195372097

Product description
Product description
Adapter for converting a Pg threaded drill hole to a metric threaded drill hole.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Thread Pg
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0498 kg CO₂e / 1 Piece
Colour Light grey; RAL 7035

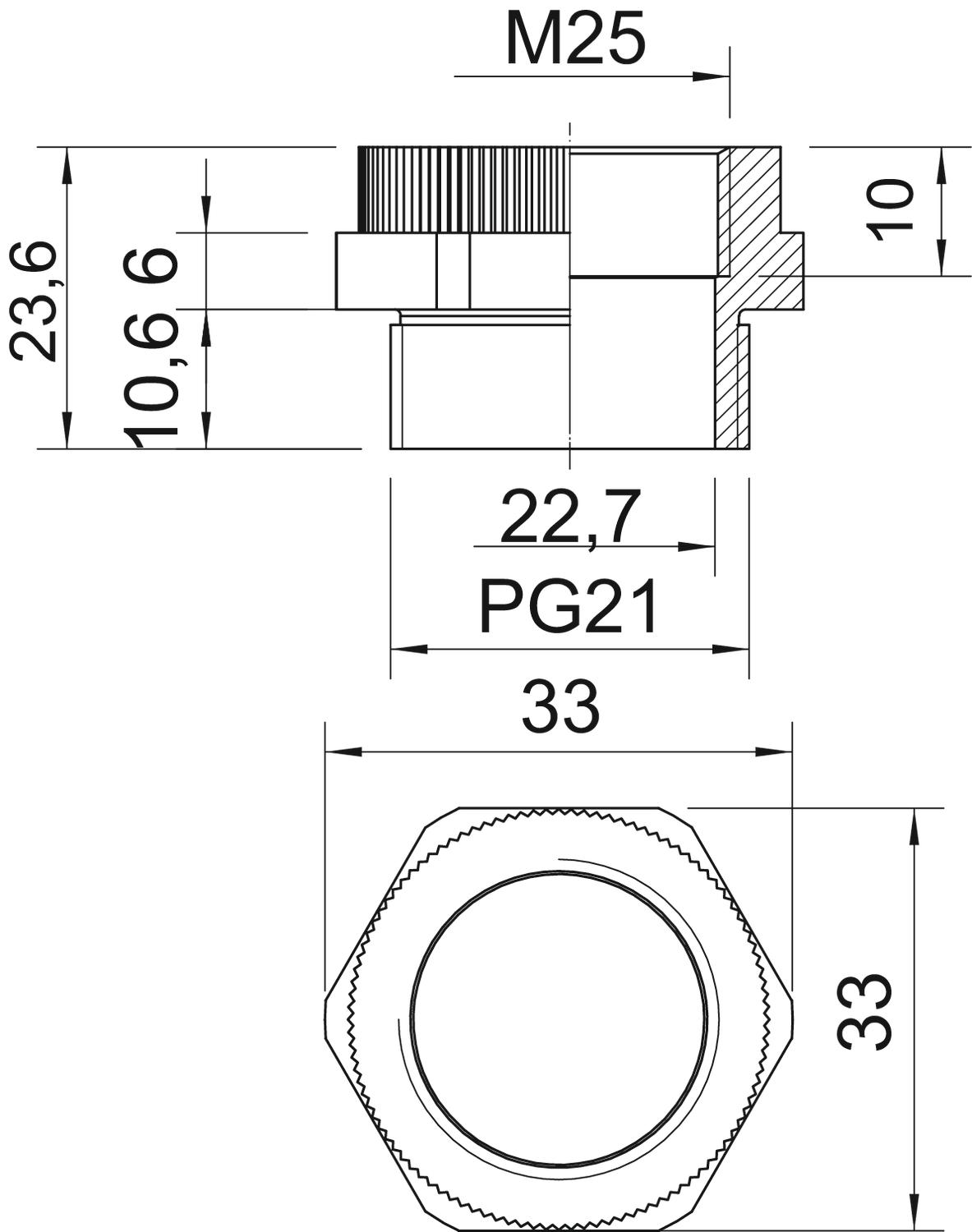

Dimension PG21-M25
Dimension D 22,7 mm
Dimension E 33 mm
Dimension L 23,6 mm
Dimension L1 10,9 mm
Dimension L2 6 mm
Dimension L3 10 mm
explosion-proof no
Material Polyamide
Nickel-plated no
Thread dimension, metric, internal 25
Thread dimension, PG, external 21
Thread type: External thread PG
Thread type: Internal thread Metric
WAF 33
All types

All types

Types Thread dimension, metric, internal Thread dimension, PG, external WAF Item no.
107 ADA PG7-M12 12 7 15 2031465
107 ADA PG9-M12 12 9 19 2031466
107 ADA PG11-M16 16 11 22 2031467
107 ADA PG13-M20 20 13.5 24 2031468
107 ADA PG16-M20 20 16 27 2031469
107 ADA PG21-M25 25 21 33 2031470
107 ADA PG29-M32 32 29 42 2031471
