Adapter PG-M
Item no. 2031466 | EAN 4012195372059
- Product description
-

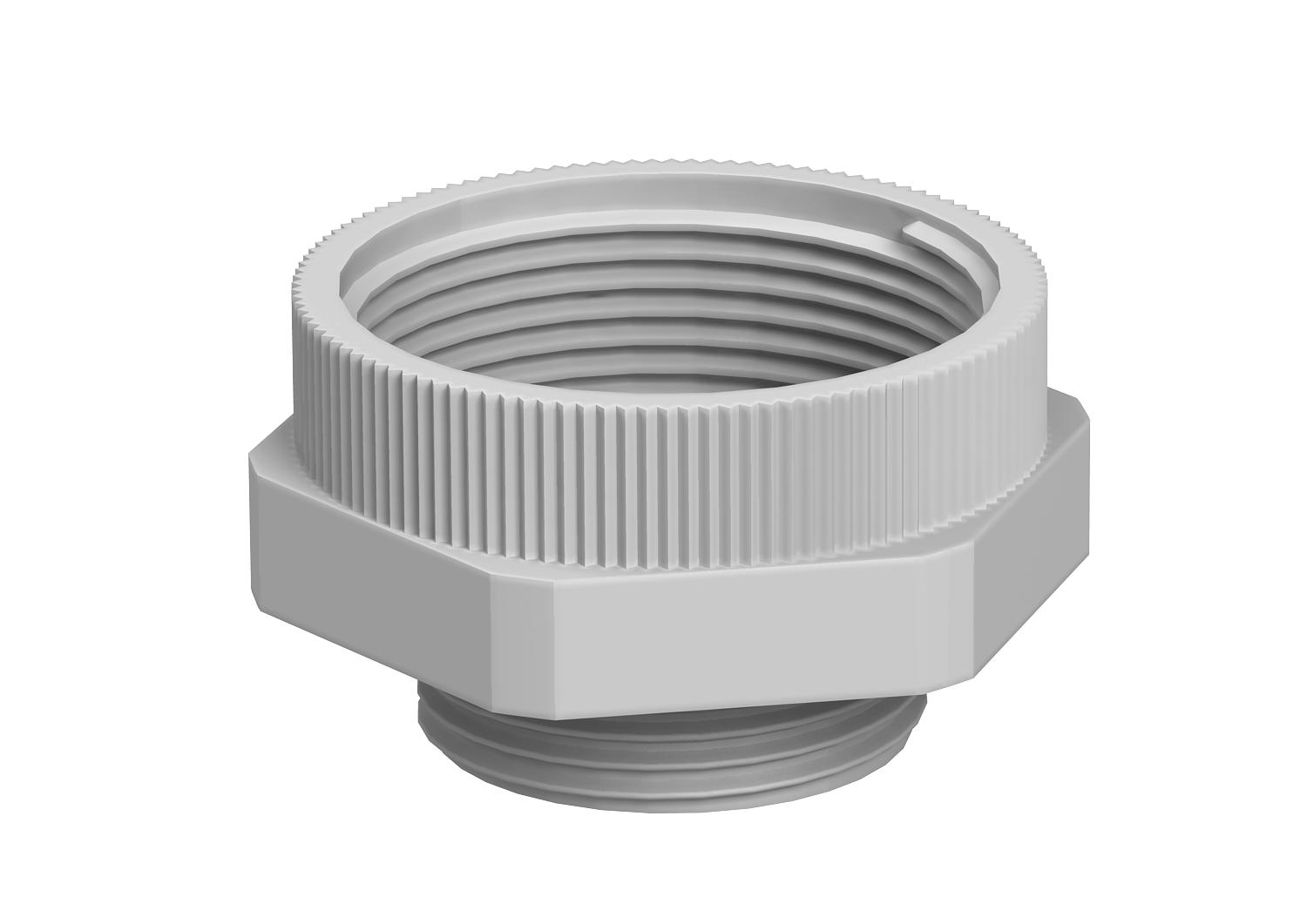

Product descriptionAdapter for converting a Pg threaded drill hole to a metric threaded drill hole.
-
- Technical data
-
Technical data

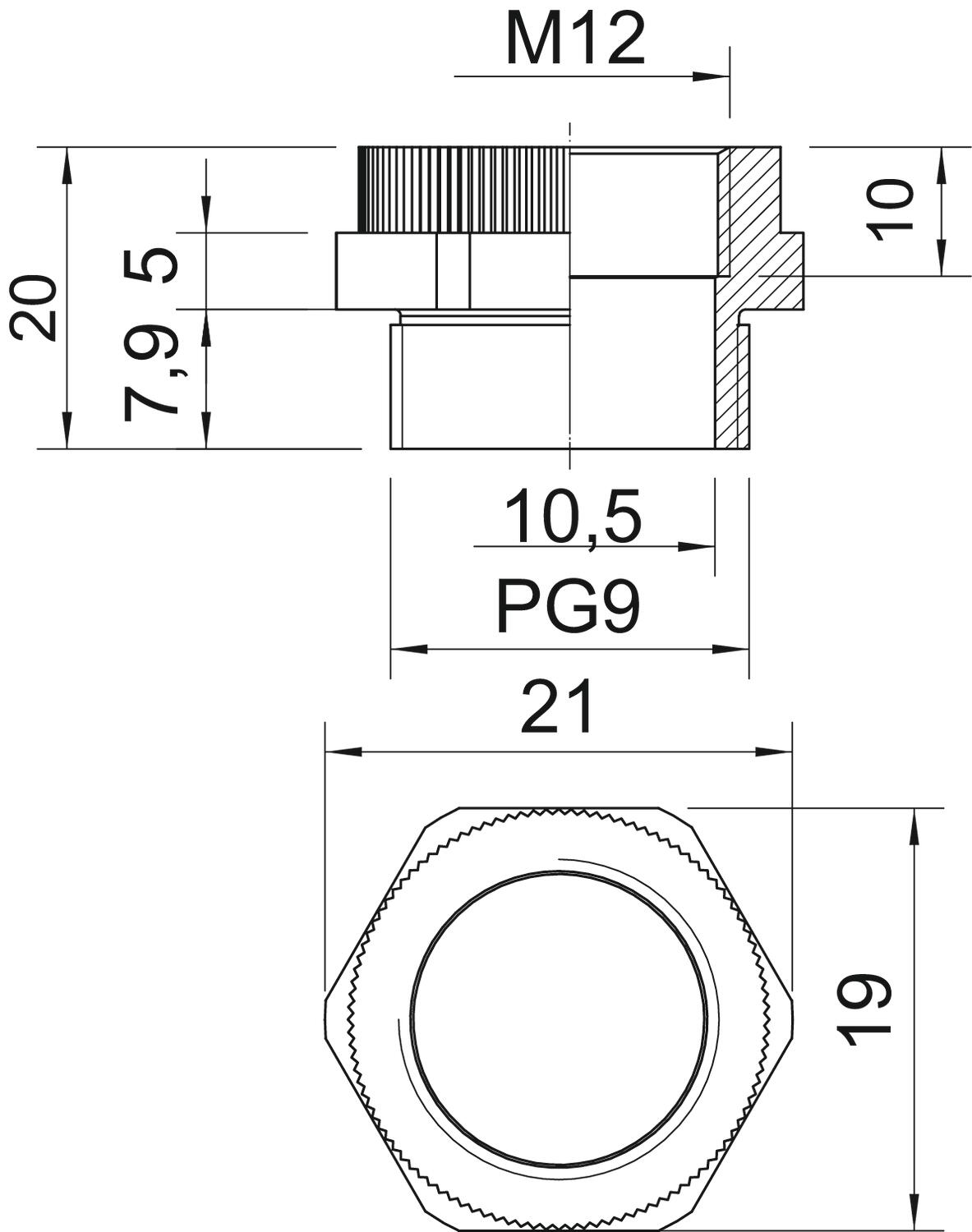

CO2 Footprint (GWP) Cradle-to-Gate 0,0198 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Dimension PG9-M12 Dimension D 10,5 mm Dimension E 21 mm Dimension L 20 mm Dimension L1 7,9 mm Dimension L2 5 mm Dimension L3 10 mm explosion-proof no Material Polyamide Nickel-plated no Thread dimension, metric, internal 12 Thread dimension, PG, external 9 Thread type: External thread PG Thread type: Internal thread Metric WAF 19 - All types
- Downloads
-
Data sheet 107 ADA PG9-M12 / 2031466 , 0.18MB , pdfREACH Declaration of conformity 107 ADA PG9-M12 / 2031466 , 0.12MB , pdfRoHS Declaration of conformity 107 ADA PG9-M12 / 2031466 , 0.13MB , pdf
