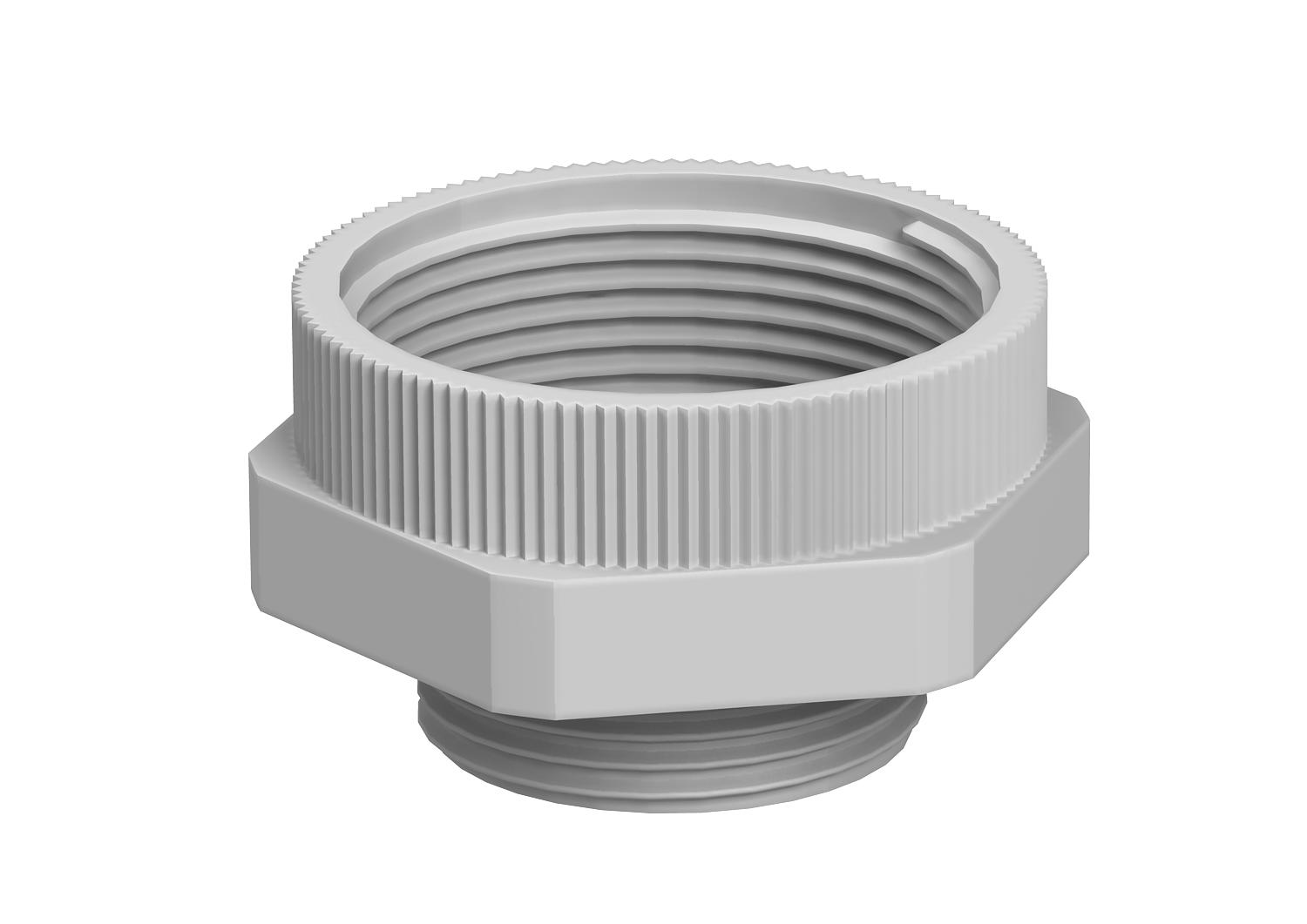

Adapter PG-M
Item no. 2031469 | EAN 4012195372080
- Product description
-
Product descriptionAdapter for converting a Pg threaded drill hole to a metric threaded drill hole.
-
- Technical data
-
Technical data

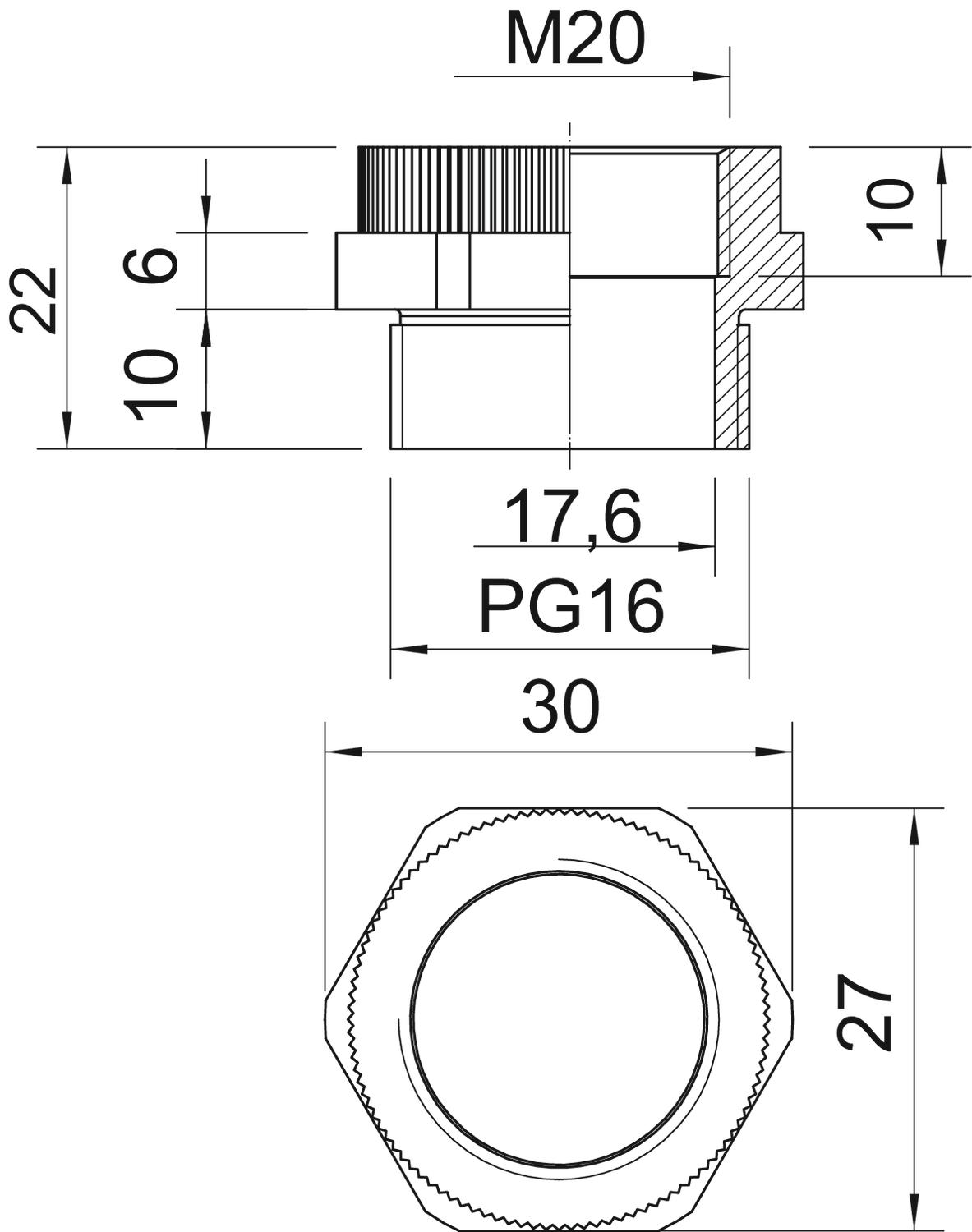

CO2 Footprint (GWP) Cradle-to-Gate 0,0315 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Dimension PG16-M20 Dimension D 17,6 mm Dimension E 30 mm Dimension L 22 mm Dimension L1 10 mm Dimension L2 6 mm Dimension L3 10 mm explosion-proof no Material Polyamide Nickel-plated no Thread dimension, metric, internal 20 Thread dimension, PG, external 16 Thread type: External thread PG Thread type: Internal thread Metric WAF 27 - All types
- Downloads
-
Data sheet 107 ADA PG16-M20 / 2031469 , 0.18MB , pdfREACH Declaration of conformity 107 ADA PG16-M20 / 2031469 , 0.12MB , pdfRoHS Declaration of conformity 107 ADA PG16-M20 / 2031469 , 0.13MB , pdf
