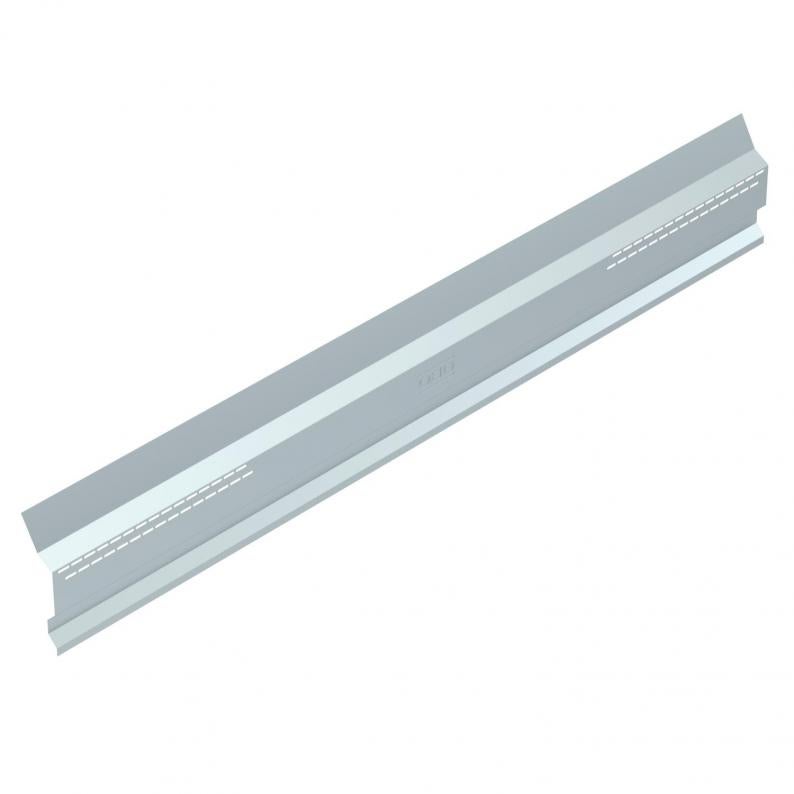

Wind protection panel for photovoltaic systems
Type WSB 2200 DD
|Item no. 5901610
|EAN 4012197376413
Item no. / Type
5901610 / WSB 2200 DD
Smallest selling unit: 4 piece
4piece
piece
Description
Wind protection panel for use with photovoltaic systems with south alignment and standard inclinations of 15°. As protection against wind loads during extreme wind conditions. Lockable and screwable fastening to STL 15 long support.
Technical data

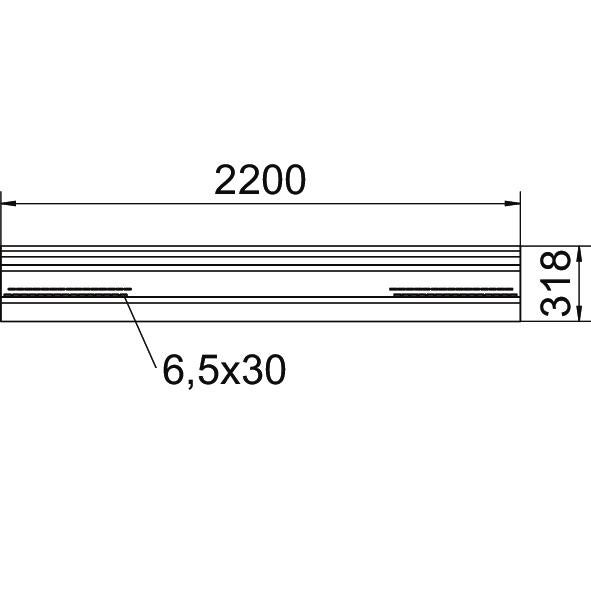

Dimensions
| Length | 2200 mm |
|---|---|
| Width | 44 mm |
| Height | 318 mm |
Technical data
| Dimension | 44x372x2200 |
|---|---|
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
| Accessories | no |
| Spare part | no |
| Type of accessory Accessory/spare parts für renewable energy generation | Wind protection panel |
| Suitable for a type of renewable energy generation | Photovoltaics |
| Module length min. | 1600 mm |
| Module length max. | 2135 mm |
Environmental Data
22,7806 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 22,7806 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 22,7806 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Accessories
System accessories
Article
Type
Item no.
Amount
FKS M6x25 A2
5901880
Smallest selling unit: 100 piece
100piece
piece
Item no. 5901880
Flat-head screw for wind protection plateType
FKS M6x25 A2
Smallest selling unit: 100 piece
100piece
piece
