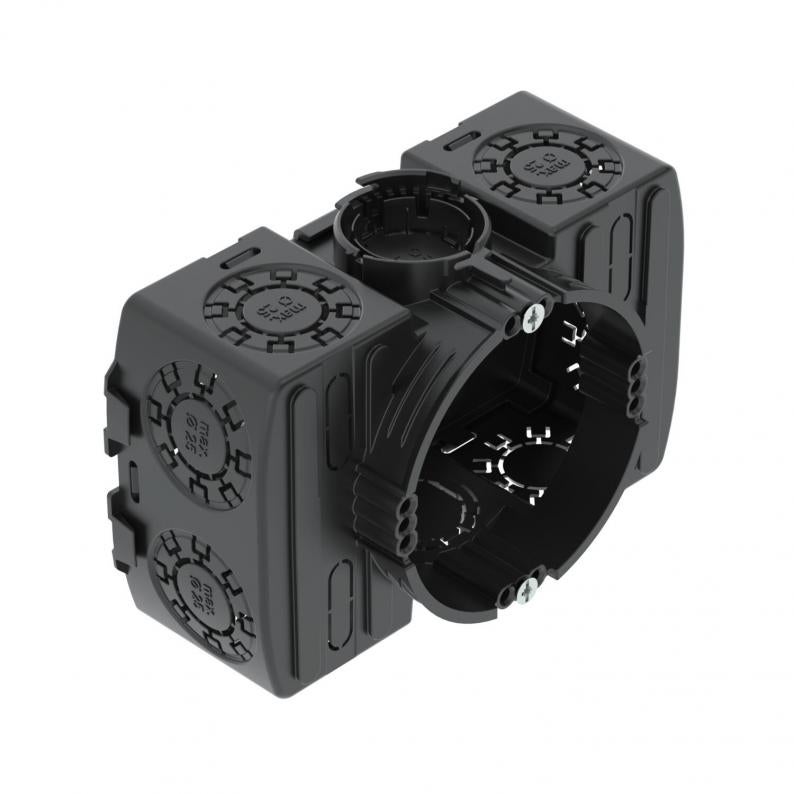

UP Flush-mounted electronics box 46, rectangular, with clamping area to the side
Type UE 46
|Item no. 2003725
|EAN 4012196863815
Item no. / Type
2003725 / UE 46
Height
50 mm
Diameter
61 mm
No. of entries
16
for pipe diameter
20/25 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Flush-mounted electronics box, with side clamping space, rectangular shape, for use in masonry with an installation depth of at least 50 mm.
• Connector with bayonet lock, couplable on both sides
• 10 combination pipe entries of Ø 20 and 25 mm
• 2 entries up to Ø 20 mm in the base
• 4 entries for flat cables/ribbon cables
• 4 x 3 screw domes
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
• Connector with bayonet lock, couplable on both sides
• 10 combination pipe entries of Ø 20 and 25 mm
• 2 entries up to Ø 20 mm in the base
• 4 entries for flat cables/ribbon cables
• 4 x 3 screw domes
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
Technical data
Dimensions
| Length | 114 mm |
|---|---|
| Width | 76 mm |
| Height | 50 mm |
Technical data
| Type of entry | NYM cables, data cables and corrugated pipes |
|---|---|
| Impact-resistant | no |
| Accessory screw clearance | 60 mm |
| Diameter | 61 mm |
| Halogen-free | yes |
| No. of entries | 16 |
| Device fixing | Screws , |
| Entry from rear | yes |
| Protection rating | IP30 |
| Type of housing penetration | Break-out opening |
| for pipe diameter | 20/25 mm |
| With bolts | yes |
| Airtight | no |
| With nail strap | no |
| Nominal cross-section, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Shape | Rectangular |
| Cover | Without |
| Cover fastening | Screws , |
| Flame-resistant | acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C |
| Pipe entries Ø 20 mm | 2 |
| Combination entries Ø 20 / 25 mm | 10 |
| Dimension | Ø60xH50x114 |
| Material | Polypropylene |
| Colour | Jet black |
| Rated voltage | 400 V |
Environmental Data
0,1666 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1666 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1666 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
ZU 12-PR
2003742
Smallest selling unit: 25 piece
25piece
piece
ZU 24-PR
2003744
Smallest selling unit: 25 piece
25piece
piece
ZU 60-SD
2003760
Smallest selling unit: 50 piece
50piece
piece
Item no. 2003742
UP Plaster compensation ring 12 mm, flush-mounted device boxType
ZU 12-PR
Smallest selling unit: 25 piece
25piece
piece
Item no. 2003744
UP Plaster compensation ring 24 mm, flush-mounted device boxType
ZU 24-PR
Smallest selling unit: 25 piece
25piece
piece
Item no. 2003760
UP Signal cover flush-mounted boxes, singleType
ZU 60-SD
Smallest selling unit: 50 piece
50piece
piece
