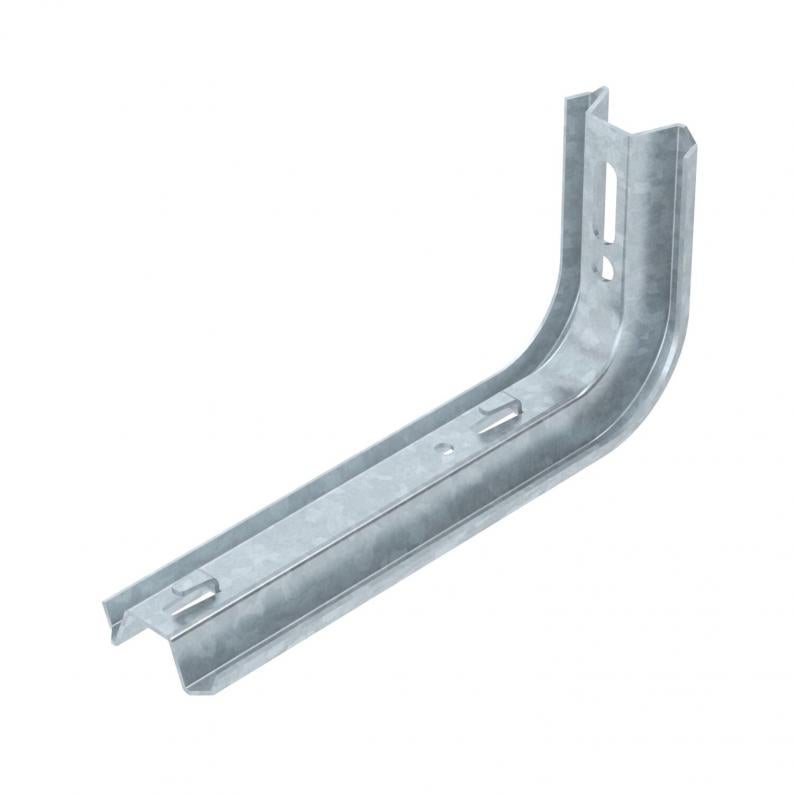

TP support / wall and support bracket FT

TP support / wall and support bracket FT

Type TPSAG 245 FT
Item no. 6366139
EAN 4012195076971
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

TP bracket with clamping lugs.

If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • TP profile and suspended support and bracket
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Easy mounting component
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

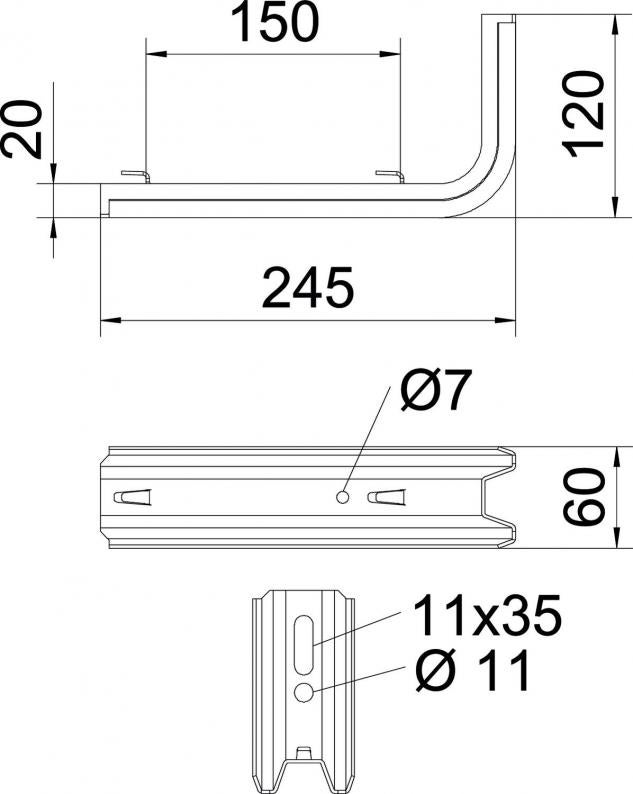

Dimensions

Length245 mm
Width60 mm
Height120 mm
Dimension L245 mm
Dimension B60 mm
Dimension H120 mm
Dimension W150 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.200
for width max.200 mm
Version forWall and support bracket
ROHS-conformantyes
F in kN0,9 kN
DimensionB245mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Product seriesTP Series
Load diagram, bracket, type TPSAG

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Support width in m

Environmental Data

1,0327 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,0327 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,0327 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Item no. 6416586

Spacer FT
Type
DS 4 FT

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
F in kN
TPSAG 145 FT
Item no.
6366131
Width
120
F in kN
1,5
Colour
zinc
TPSAG 195 FT
Item no.
6366135
Width
120
F in kN
1
Colour
zinc
TPSAG 245 FT
Item no.
6366139
Width
60
F in kN
0,9
Colour
zinc
TPSAG 345 FT
Item no.
6366143
Width
60
F in kN
0,55
Colour
zinc
