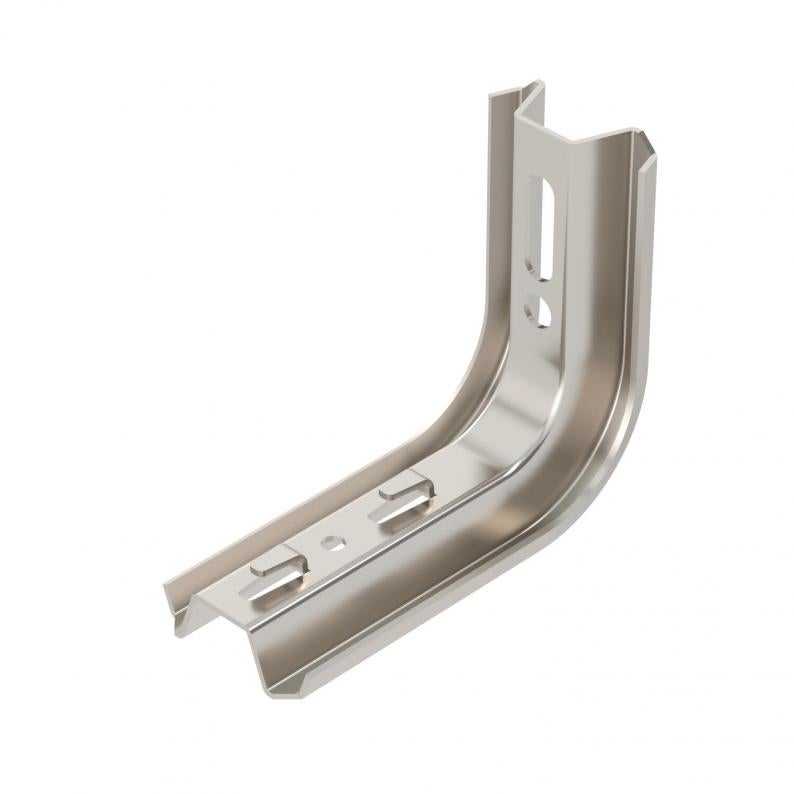

TP support / wall and support bracket A2

TP support / wall and support bracket A2

Type TPSAG 145 A2
|
Item no. 6366145
|
EAN 4012195617785
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

TP bracket with clamping lugs for screwless mesh cable tray fastening.

If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • TP profile and suspended support and bracket
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • Easy mounting component
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length145 mm
Width60 mm
Height120 mm
Dimension L145 mm
Dimension B60 mm
Dimension H120 mm
Dimension W50 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.100
for width max.100 mm
ROHS-conformantyes
F in kN1,5 kN
DimensionB145mm
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Product seriesTP Series
Load diagram, bracket, type TPSAG

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Support width in m

Environmental Data

1,5807 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,5807 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,5807 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Item no. 6416594

Spacer A2
Type
DS 4 A2

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

F in kN
TPSAG 145 A2
Item no.
6366145
Width
60
F in kN
1,5
Colour
stainless steel
TPSAG 195 A2
Item no.
6366146
Width
60
F in kN
1
Colour
stainless steel
TPSAG 245 A2
Item no.
6366148
Width
60
F in kN
0,9
Colour
stainless steel
TPSAG 345 A2
Item no.
6366149
Width
60
F in kN
0,55
Colour
stainless steel
