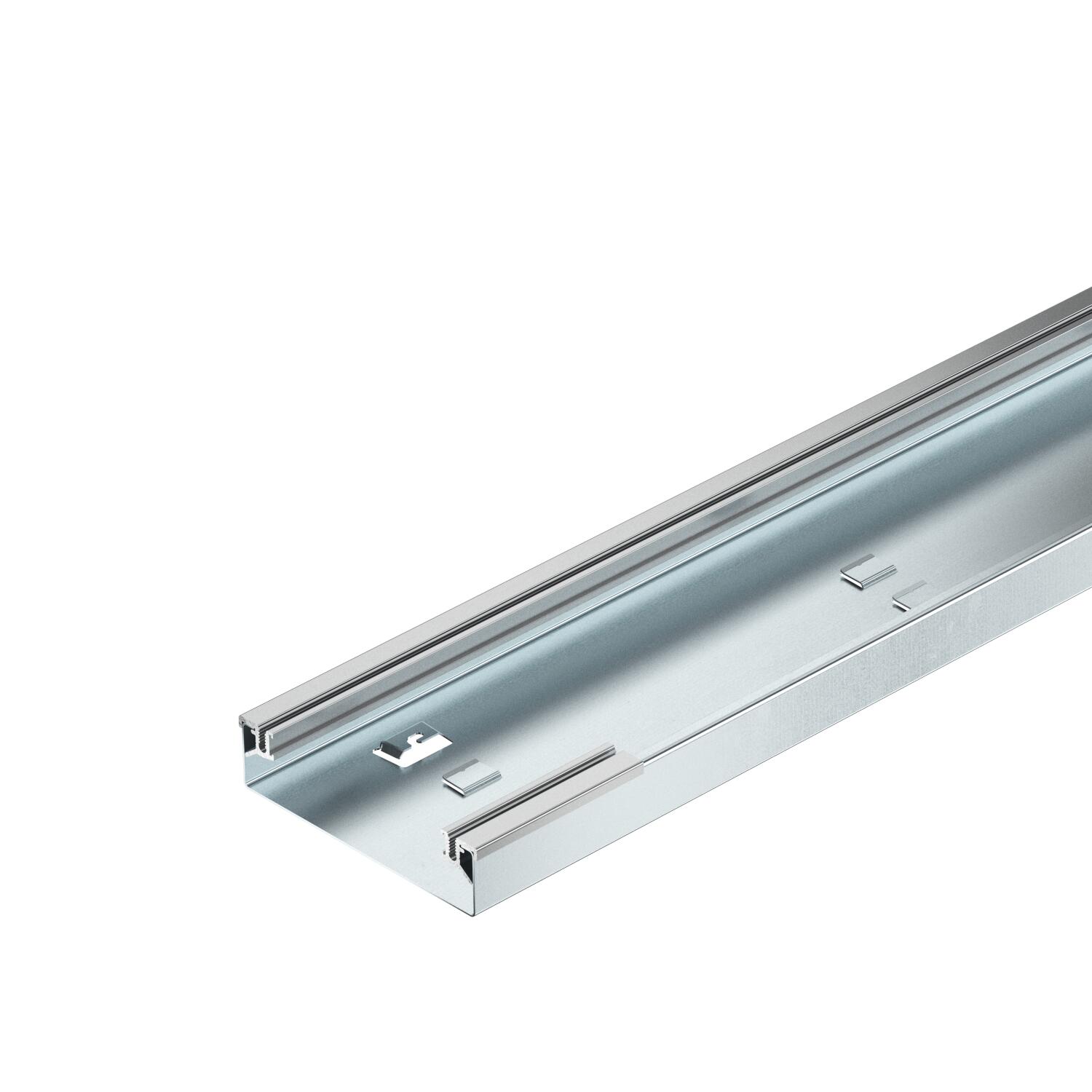

On-floor branch trunking

On-floor branch trunking

Type AIKA U 15040
Item no. 7404874
EAN 4012195101390
Show all variants
Item no. / Type
Length
Width
Height
Usable cross-section

Smallest selling unit: 2.4 m

m

Description

On-floor junction trunking base for blank/mounting lid with slope on both sides, free on floor for mounting, with plug-fit aluminium side profiles for layering and fixing the trunking lid. Trunking height suitable for installation of Telitanks.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

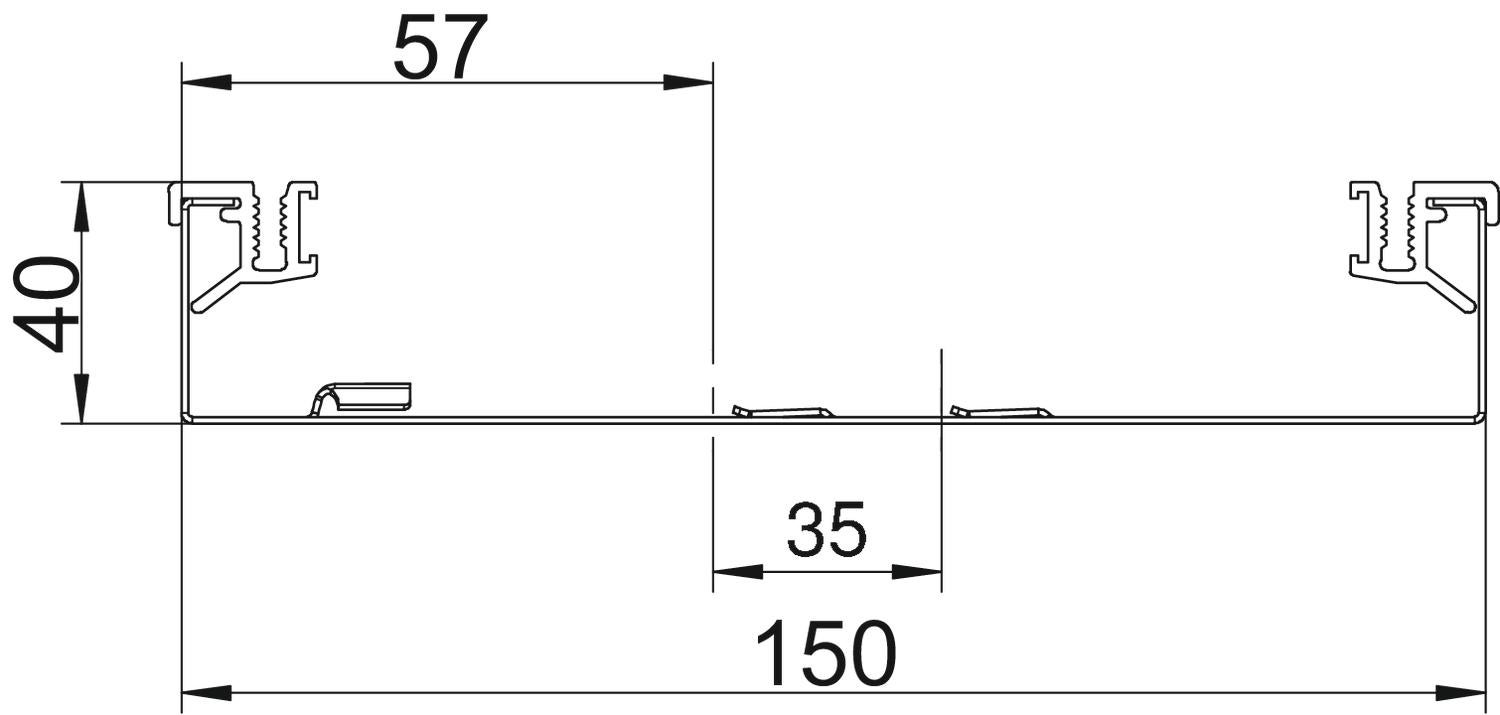

Dimensions

Length2400 mm
Width150 mm
Height40 mm
Dimension B150 mm
Dimension b150 mm
Dimension h40 mm

Technical data

Usable cross-section45 cm²
Plate thickness, base1 mm
Number of compartments3 St.
Number of insertable partitions2
Cross-section, draw a1630 mm²
Cross-section, draw b1120 mm²
Cross-section, draw 31171 mm²
With separating retainerno
ROHS-conformantyes
Suitable forCover sloping on both sides
Dimension2400x150x40
SurfaceStrip galvanised
MaterialSteel
Separating retainer fasteningPlug
Product seriesAIK

Environmental Data

10,9303 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate10,9303 kg CO2e / 1 Meter
CO₂ Footprint (GWP)10,9303 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories
Type
AIKA ES 15040

Smallest selling unit: 1 piece

piece

Type
AIKA ES 25040

Smallest selling unit: 1 piece

piece

Type
AIKA DAT 15040

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Declarations (3)
Certificates (1)
Product images (3)
Tender specifications (1)

Variants

Width
Usable cross-section
AIKA U 15040
Item no.
7404874
Length
2400
Width
150
Height
40
Usable cross-section
45

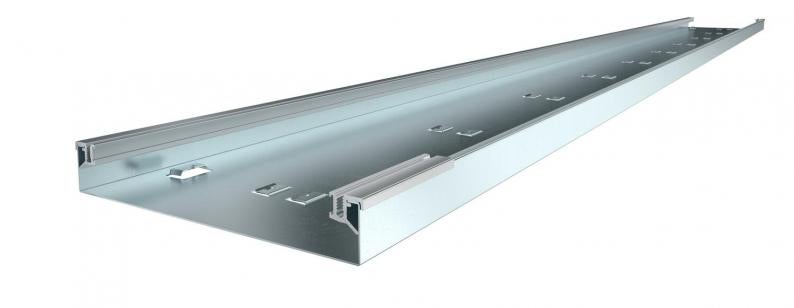

AIKA U 25040
Item no.
7404882
Length
2400
Width
250
Height
40
Usable cross-section
81
